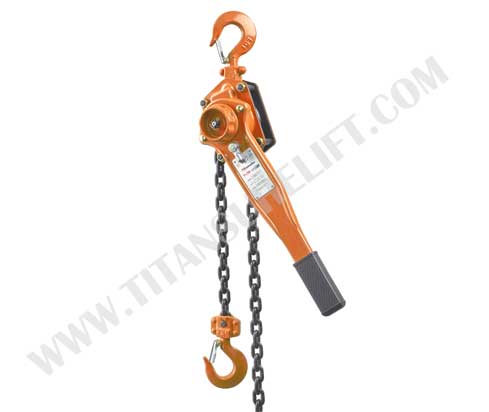

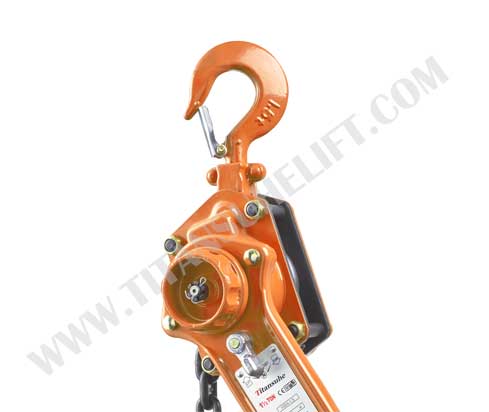

HSH-A636 3 Ton Lever Block

• Capacity: 3t/3000kg

• Standard lift: 1.5m/5ft

• Load chain size: 10mmx30mm (diameter x pitch length)

• Chain fall: 1 fall

• Proof load test: 45KN

• Effort to lift rated load: 320N

• Net weight: 17kg

• Carton Dimension: 55x18.5x22.5cm

• Quantity per carton: 1pc

If you need to finish some tough work to lift or pull loads under extreme conditions, this lever block is your ideal choice. The all-steel construction provides strong and durable fall resistance.

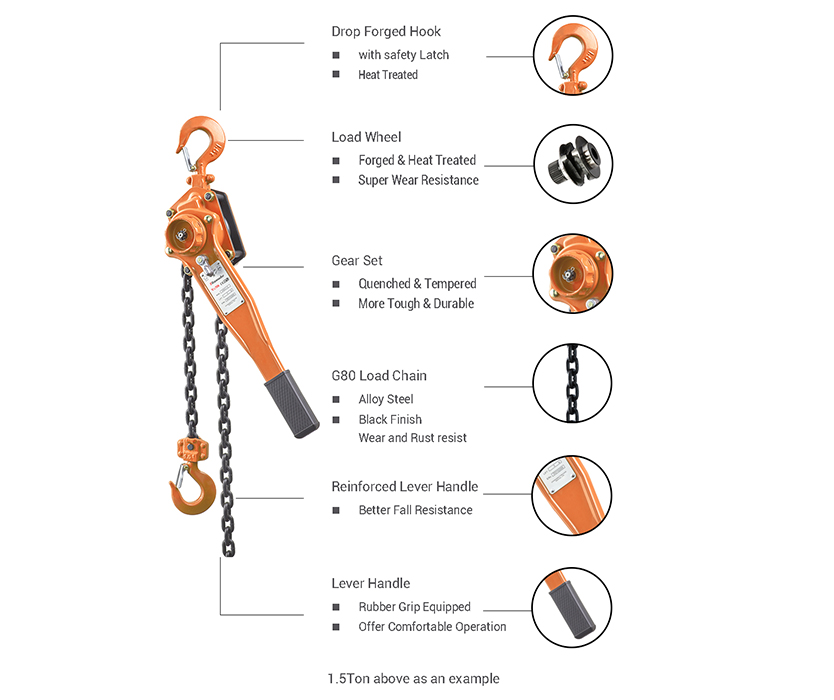

• Compact and strong construction-Provide fall resistance to extreme environments.

• Free chain adjustment – When not under load, centering the selection switch to disengage the gear set and quick-adjust the chain for faster operation. One-step operation saves labor and increases efficiency.

• Muti function – Can be used for lifting, pulling, lashing, stretching, tightening, and securing which makes it a more versatile tool.

• A small effort for rated load lift or pull – Double reduction gearing provides easy operation with minimal lifting effort.

• 360-Degree Handle Rotation – This allows the operator to work in confined spaces or one-hand operation in works at height.

• Strong and Durable Steel Construction – Thicker steel cover and reinforced handle with long-lasting powder coating, the all-steel construction gives fall protection and increases service life in harsh environments.

• Weston-Style Brake System –Enclosed and protected Weston-Style load brake stays clean and dry during the operation. The double pawl design enables proper operation even if one of them gets failure.

• Load gear with slotted nut and safety pin – Reduce the fall-off risks of gear sets after long-time wear.

• Fully-Enclosed Load Wheel – Enclosed design keeps debris from contaminating the load wheel.

• Captured Roller Bearing – Lubrication-free roller bearing gives smooth, controlled operation of the gears and shafts.

• Steel Handle with Rubber Grip – Provides a non-slip, sure-grip surface.

• Quenched and Tempered Forged Hooks – Forged alloy steel hooks with quench and temper treatment for high strength and visible deformation under extreme overload.

• Cast steel safety latches – Heavy-duty, cast-steel safety latch has a bolt-and-lock nut connection. This feature simplifies changing latches in the field.

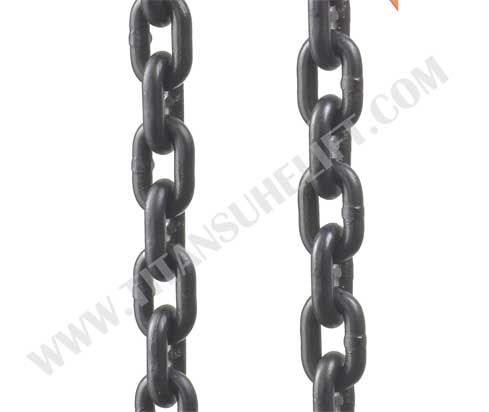

• G80 Alloy Steel Lifting Chain – Calibrated and proof tested lifting chain meets EN818-7 specification.
