HSH-A616 0.75 Ton Lever Block

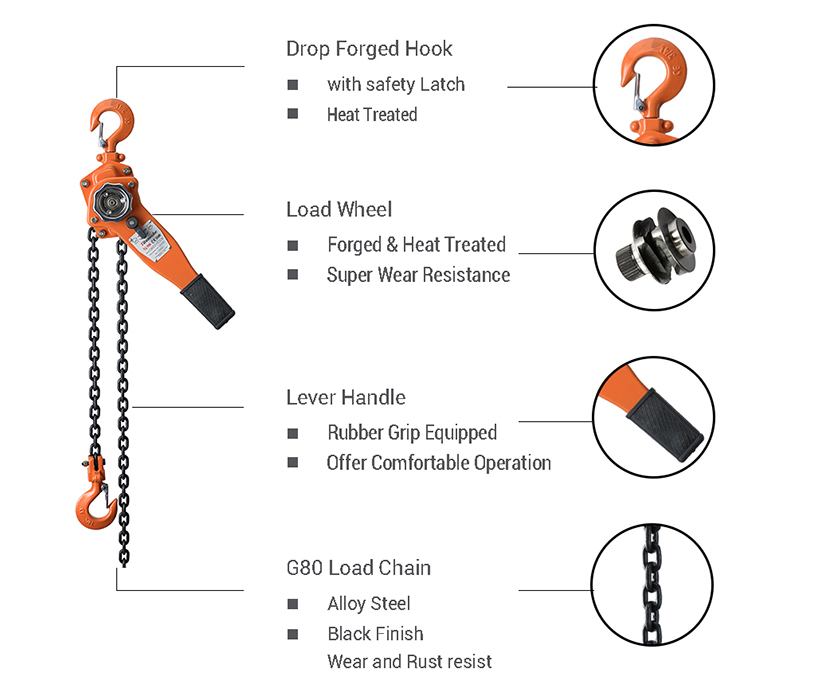

Manual ratchet lever hoist, in other names manual lever block, or come along, is designed for multiple functions that can be used for lifting, stretching, lashing, pulling, tightening, and positioning purposes. Structured with a grade 80 alloy steel load chain, ratchet wheel, brake system, ratchet lever handle, and two forged hooks, the lever hoist can realize cargo lift, cargo movement, and cargo securing easily by shaking the lever handle. The applications of manual ratchet lever hoists are visible everywhere in our life. Like pulling the cable in electricity, securing the car in its transportation, tightening steel bars on the truck, lifting materials to a workbench, and so on. The available capacity of Titansuhe’s manual ratchet lever hoist is starting from 250kg and through 500kg, 750kg, 1000kg, 1500kg, 2000kg, 3000kg, 6000kg up to 9000kg.

For different applications, you can either choose our premium quality manual ratchet lever hoist that comes with overload protection and reinforced lever handle or you can have our economic models that have the same function but at cheaper prices.

pho

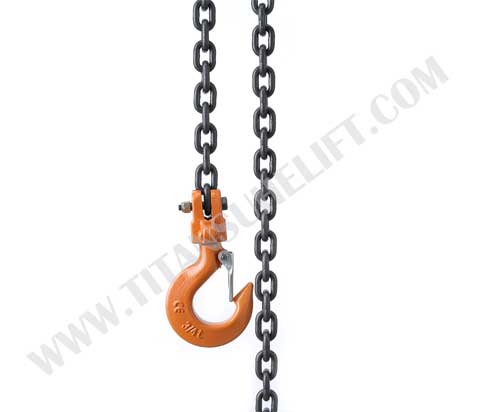

750kg lever block

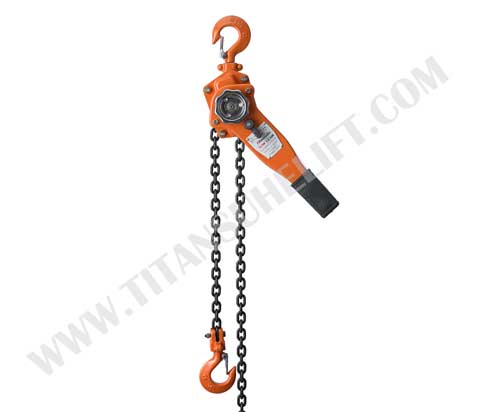

750kg lever hoist

Data Sheet of HSH-A616 0.75 Ton Lever Block

Model

Capacity

(t)

Standard lift (m)

Running test load (KN)

Effort required to lift rated load (N)

Strands of load chain

Load chain size

(mm)

Dimension

(mm)

Net weight

(kg)

Packing measurement

(cm)

Extra weight per meter of extra lift(kg)








A

B

C

D

H

L

K




HSH616-7.5

0.75

1.5

11.2

140

1

6x18

147

86

96

37

345

285

23

6.25

37.5x16x18

0.8

HSH616-10

1

1.5

15

185

1

6x18

145

86

134

38

340

285

27

9.5

37.5x16x18

0.8

HSH616-15

1.5

1.5

22.5

220

1

8x24

170

96

110

38

405

415

33

10.8

52x17x22

1.4

HSH616-20

2

1.5

30

250

1

8x24

175

100

150

48

380

410

36

11.5

52x17x22

1.4

HSH616-30

3

1.5

45

320

1

10x30

190

103

145

47

490

415

36

18.7

55x18.5x22.5

2.2

HSH616-60

6

1.5

75

340

2

10x30

190

103

220

68

650

415

46.2

28.7

57x21x23

4.4

HSH616-90

9

1.5

135

360

3

10x30

190

103

260

71

760

415

51

41.1

60x42x28

6.6

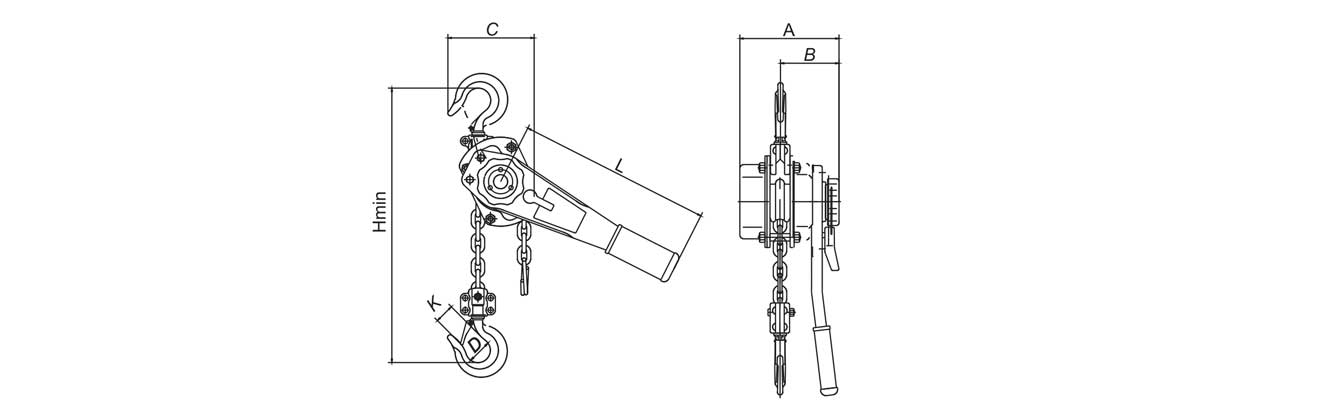

Drawing of HSH-A616 0.75 Ton Lever Block

Drawing of HSH-A616 0.75 Ton Lever Block
