Grade 80 Sliding Choker Hook

Choker hooks are designed to secure a load by hitching the sling around the load circumference. Equipped safety latches prevent the eye of the sling from disengaging from the hook.

The strong wide throat design of the sliding choker hooks can be directly secured to wire rope, master links or synthetic slings making them perfect for rigging.

TITAN SUHE's sliding choker hooks are used on factory made slings for handling such items as pipe, logging, machinery, and in stevedoring. Its free movement permits rapid adjustment of the sling to varying sized loads. "Saddle is rounded to minimize wear." Hook opening is large enough to take a galvanized plow steel thimble the same size as hook size.

pho

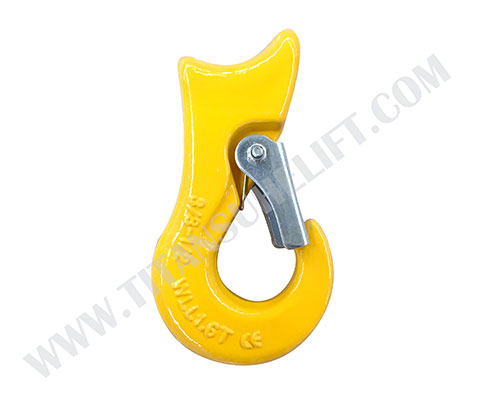

Choker Hooks For Logging

Data Sheet of Grade 80 Sliding Choker Hook

Size (in.)

W.L.L (t)

B.L (t)

Dimension (mm)

N.W.(kg/pc)




Φ

A

B

E

L


3/8-1/2

1.6

8

17

50

71

21

132

0.68

5/8

2

10

22

63.5

79

23

151.5

1.21

3/4

3

15

28

69

103

29

170

1.99

1

5

25

32.5

85.7

105

38

213

4.18



Titansuhe have chain hooks manufacturers bulk wholesale at competitive prices, which provide more secure, reliable, durable, and efficient lifting tools and material handling equipment.

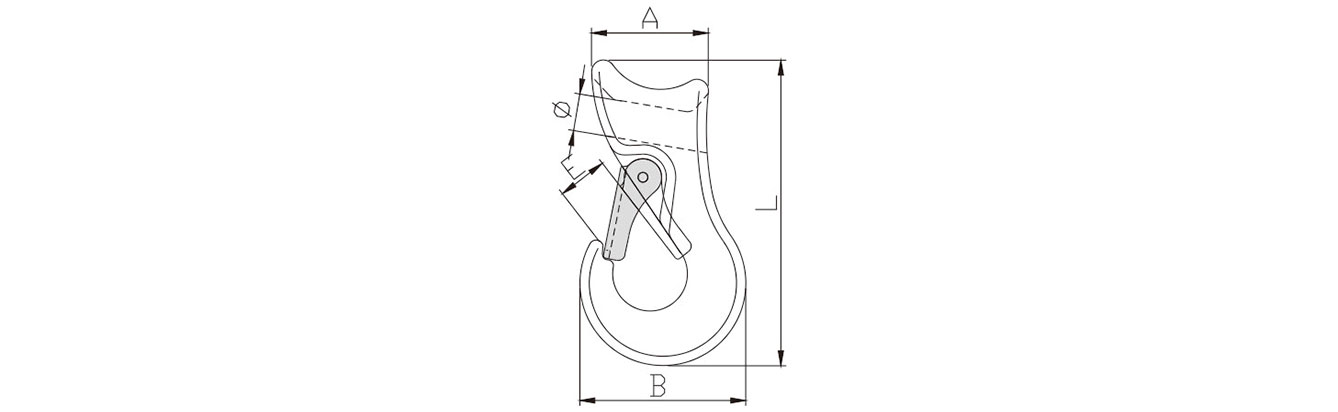

Drawing of Grade 80 Sliding Choker Hook

Drawing of Grade 80 Sliding Choker Hook
