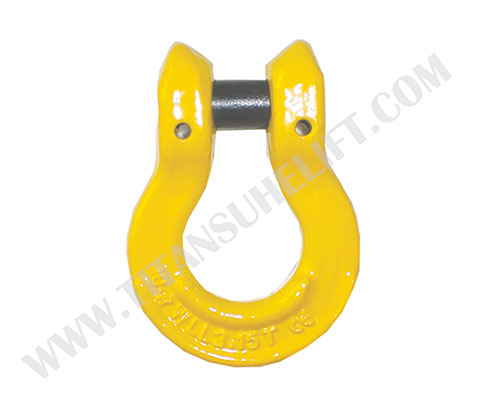

Omega link works as chain end fittings or chain attachments that offers an effective hook point. Grade 80 Omega link is made of Alloy steel quenched and tempered. With good heat treatment, each omega link has a high tensile strength, can reach grade 80 or grade 100 quality. TITAN SUHE makes proof load test for all the Grade 80 links at 2.5 times of rated working load and provide mill test report.
Size (mm) | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | ||||

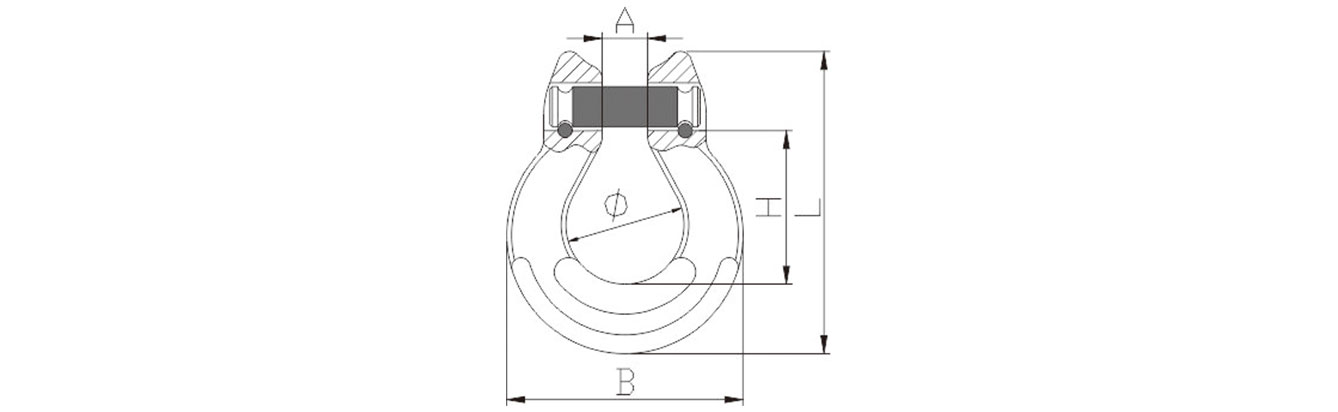

A | B | Φ | H | L | ||||
6-8 | 1.12 | 4.48 | 8 | 41 | 20.5 | 25 | 52 | 0.13 |
7/8-8 | 2 | 8 | 10 | 52 | 23.5 | 35 | 68.5 | 0.21 |
10-8 | 3.15 | 12.6 | 12 | 62 | 31.5 | 40.5 | 81 | 0.36 |
13-8 | 5.3 | 21.2 | 15 | 81 | 41 | 54 | 108 | 0.71 |
16-8 | 8 | 32 | 19 | 99 | 49.5 | 64 | 126 | 1.3 |
20-8 | 12.5 | 50 | 23 | 118 | 58 | 75.6 | 152 | 2.2 |
For one-stop system service with lifting chain accessories, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.
