Grade 80 Clevis Type Omega Link

Name: Grade 80 Clevis Type Omega Link
Brand: CHONGQING TITAN SUHE TECH CO., LTD.
Price: 25 USD
Rating: 4.5 (5 reviews)

Omega link is mostly connected with master link or master link assembly that have flat press. It can also connect with lifting chain through the pin on clevis head or eye hook with flatten part.

Get A Quote

Features and Benefit of Grade 80 Clevis Type Omega Link

Material: Alloy steel
Safety factor 4 to 1
Powder coated, different color is available as per request.
Working load limit permanently shown on the body.
Individually proof tested at 2.5 times the working load limit.
Mill test certificate available

Data Sheet of Grade 80 Clevis Type Omega Link

Size (mm)	W.L.L (t)	B.L (t)	Dimension (mm)						N.W. (kg/pc)
Size (mm)	W.L.L (t)	B.L (t)	A	B	D	H	L		N.W. (kg/pc)
7/8-8	2	8	9.5	33	27	45	69	102	0.22
10-8	3.15	12.6	13	45.5	27	45	72	116	0.45

Titansuhe offers custom chain rigging accessories for wide range of lifting tools and material handling equipment which can be used either for lifting systems or to rigging a lashing system.

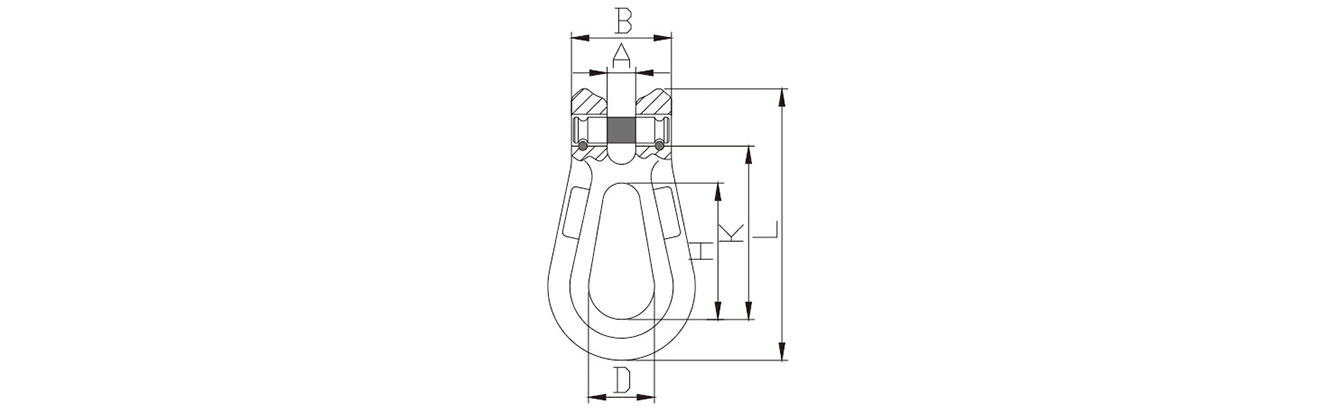

Drawing of Grade 80 Clevis Type Omega Link
