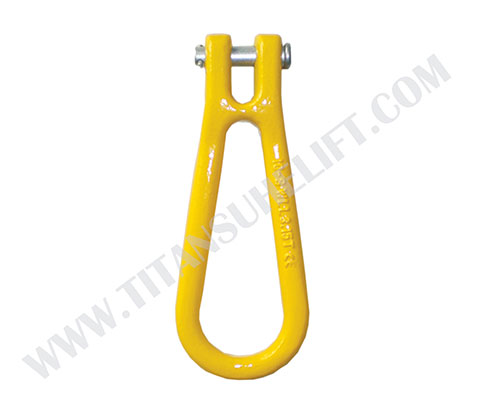

Pear shape links have a longer and inside space which provide a larger size choker point and for easy hook in of the larger size hooks. Specially designed clevis head can help quick connect with lifting chains or steel wire ropes. Made by alloy steel quenched and tempered, TITAN SUHE’s choke link meets grade 80 quality.

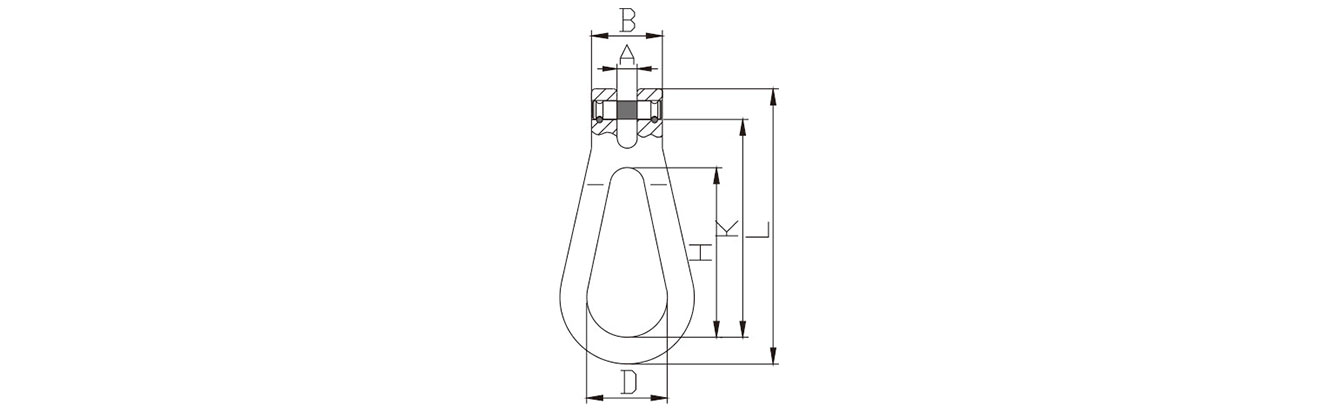

Size (mm) | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | |||||
A | B | D | H | K | L | ||||
10-8 | 3.15 | 12.6 | 12.5 | 46 | 50 | 140 | 173 | 209 | 0.82 |
13-8 | 5.3 | 21.2 | 16.5 | 58 | 66 | 140 | 182 | 227 | 1.75 |
Titansuhe lifting chains and accessories will be your ideal solution for construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
