Grade 8 Weld-On Hooks with Safety Latch

Weld-on hooks are designed to make permanent anchor points or lifting points where you need them. They can be welded on trucks, excavators, spreader beams, construction machinery and various types of industrial equipment. Made of treated alloy steel, the hook is constructed with safety latch which allows positive locking. When working as a lifting points, the advantage of weld-on hook comparing with eye bolts or eye nuts is no need to unscrew of the attachment point in the load direction when loaded. You just need to unlock the hook to take attachment. TITANSUHE's Grade 8 weld on hooks are universal hooks and can be welded on to different supporting materials. If the hook is welded on to a bucket it should.

pho
Weldable Lifting Eye

Data Sheet of Grade 8 Weld-On Hooks with Safety Latch

Size

W.L.L (t)

B.L (t)

Dimension (mm)

N.W. (kg/pc)

B

C

E

L

2.0T

2

10

92

67

26.5

114

0.83

3.0T

3

15

106

73.5

30.5

129

1.2

5.0T

5

25

133

94

34

171

2.46

8.0T

8

40

136.5

94

34

177

3.26

10.0T

10

50

169.5

134.5

51

223

5.17



Titansuhe have lifting chain accessories bulk wholesale at competitive prices, which provide more secure, reliable, durable, and efficient lifting tools and material handling equipment.

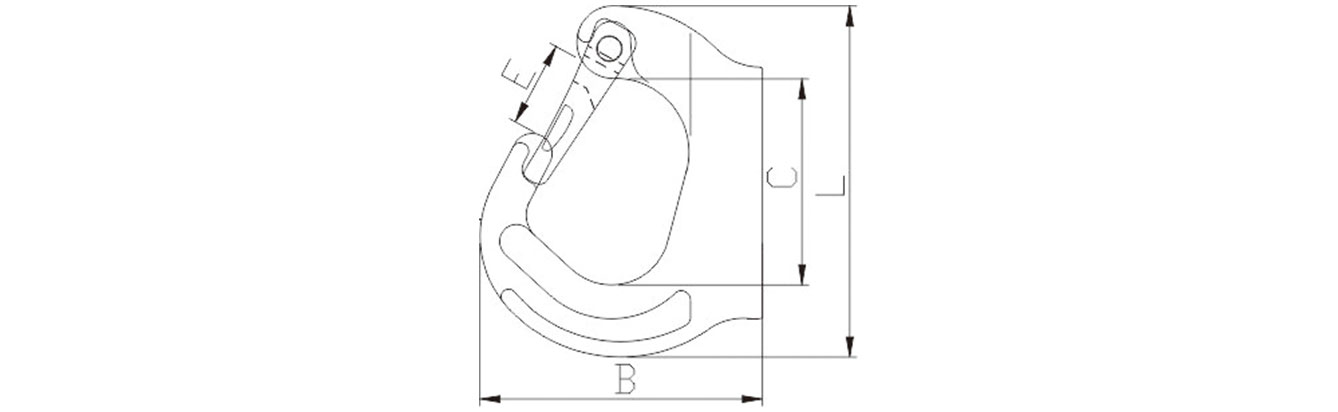

Drawing of Grade 8 Weld-On Hooks with Safety Latch

Drawing of Grade 8 Weld-On Hooks with Safety Latch
