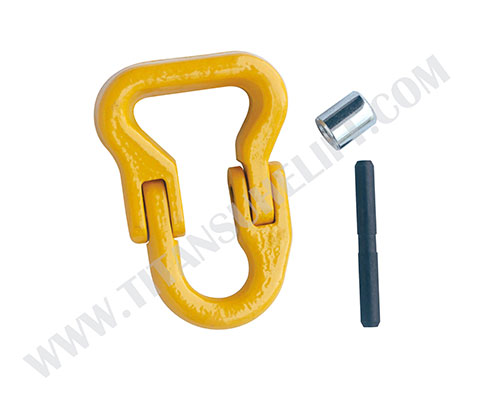

Web sling connector is specially designed to use for polyester webbing sling. Structured with a wider sling bearing surface, this web sling connector can suit the width of webbing sling and protect it from harsh abrasion that may damage the sling. It can also be used for chain sling and wire rope slings.
Size (mm) | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | |||||

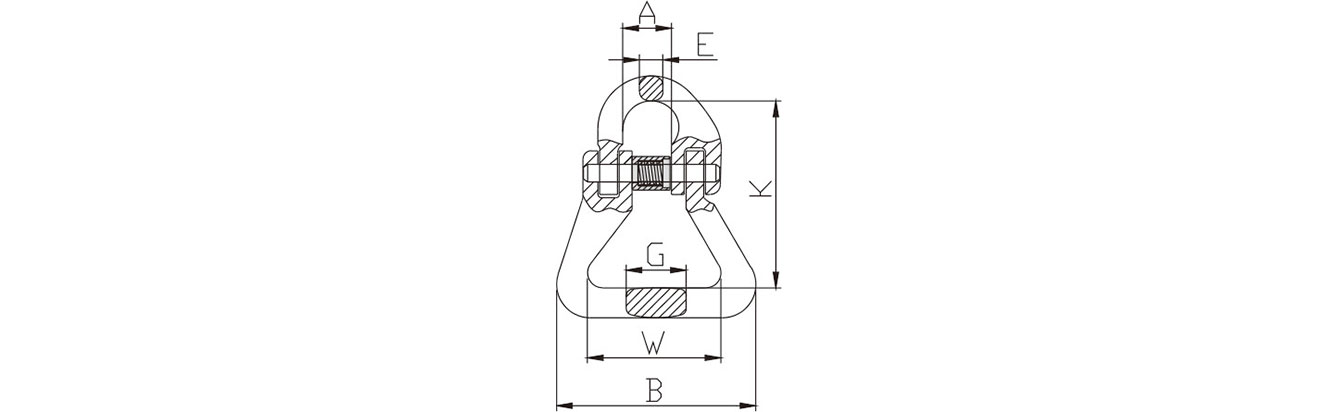

A | B | K | W | G | E | ||||
6-8mm | 1.12 | 4.48 | 15 | 60 | 56 | 40 | 18 | 7 | 0.2 |
8-8mm | 2 | 8 | 20 | 61.5 | 63.7 | 40 | 24 | 9.5 | 0.3 |
10-8mm | 3.15 | 12.6 | 24 | 66 | 83 | 39 | 30.5 | 11 | 0.68 |
13-8mm | 5.3 | 21.2 | 28 | 88 | 93.7 | 55 | 36.8 | 16.5 | 1.47 |
16-8mm | 8 | 32 | 34.5 | 108 | 120 | 65.5 | 45.2 | 19.8 | 2.3 |
20-8mm | 12.5 | 50 | 41 | 129 | 138 | 80 | 51.8 | 23 | 3.3 |
