A-347 master link assembly is made according to Crosby specification, used with steel wire rope to make multi-legs wire rope slings.The main link and sub link’s dimension are calculated and produced according to wire rope’s characters, can well distribute the loads, reduce the wear and increase wire rope’s service life.

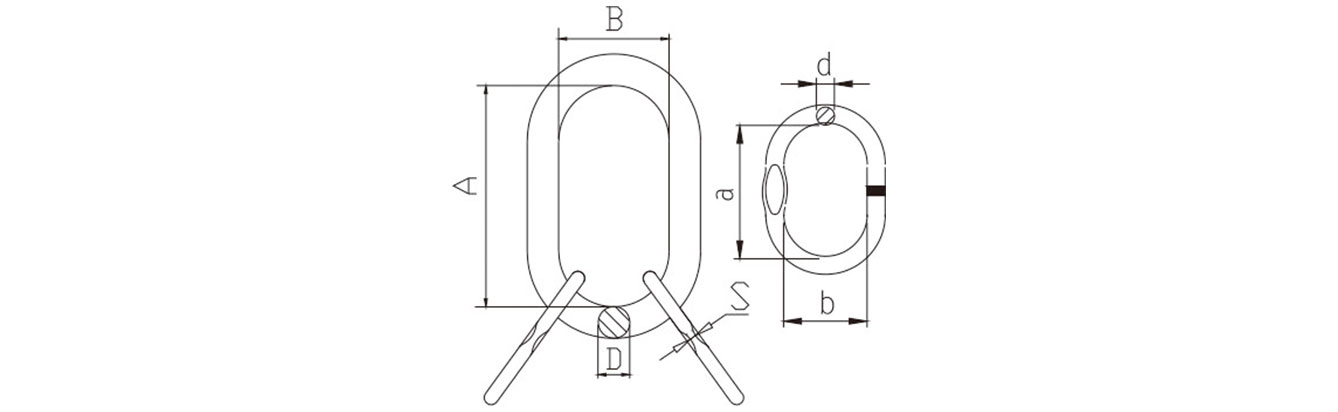

Size | Chain Size | Chain(4:1) | Wire Rope(6:1) | Dimension (mm) | N.W.(kg/pc) | ||||||
3 or 4 legs 0-45°W.L.L(t) | W.L.L(t) | A | B | D | a | b | d | s | |||
1/2" | 7/32" | 2.36 | 2.4 | 100 | 60 | 14 | 85 | 40 | 12 | 6 | 0.82 |
11/16" | 1/4" | 3.15 | 3.2 | 160 | 90 | 18 | 100 | 60 | 14 | 7.6 | 1.6 |
5/8" | 1/4" | 3.15 | 3.2 | 160 | 90 | 18 | 100 | 60 | 14 | 7.6 | 1.61 |
3/4" | 5/16" | 4.25 | 4.2 | 160 | 90 | 20 | 100 | 60 | 14 | 7.6 | 1.95 |
7/8" | 3/8" | 6.7 | 8 | 180 | 100 | 22 | 150 | 70 | 18 | 8.4 | 3.16 |
1" | 3/8" | 10 | 10 | 270 | 140 | 25 | 155 | 80 | 20 | 11 | 5.28 |
1-1/8" | 1/2" | 11.2 | 12 | 270 | 140 | 28 | 160 | 90 | 22 | 13.5 | 6.75 |
1-1/4" | 5/8" | 17 | 17 | 270 | 140 | 32 | 180 | 100 | 25 | 16.5 | 9.31 |
1-1/2" | 3/4" | 23.6 | 25 | 300 | 160 | 40 | 270 | 140 | 31 | 19 | 18.4 |
1-3/4" | 7/8" | 31.5 | 31.5 | 340 | 180 | 45 | 285 | 155 | 36 | 22 | 26.4 |
2" | 1" | 45 | 45 | 350 | 190 | 51 | 340 | 180 | 45 | 25 | 42.91 |
Titansuhe is dedicated to providing a full range of chain sling assembly, we offer cost-effective and reliable solutions.
