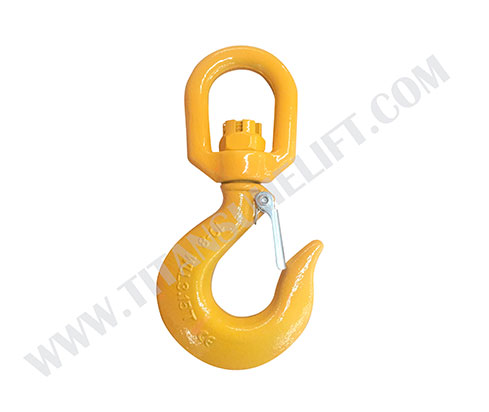

Swivel hook, in another name rotary hook, is a kind of hook connected with other accessories that can change the lifting angle and rotate the load 360 degrees freely. TITANSUHE’s G80 Swivel hook made by high strength alloy steel, with heat treatment, has 4 times safety factor against the rated working load, meet EN1677 specification. It is designed and produced for professional lifting purpose.

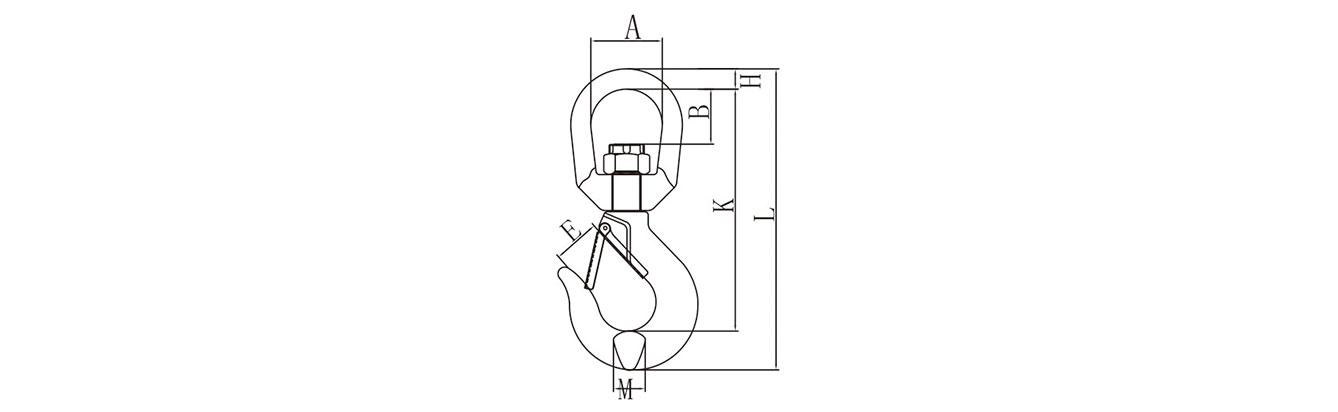

Size | W.L.L | B.L | Dimension(mm) | N.W. | ||||||
(t) | (t) | A | E | B | H | K | L | M | (kg/pc) | |
6-8mm | 1.12 | 5 | 32 | 22 | 17 | 9 | 109 | 137 | 16 | 0.34 |
8-8mm | 2 | 8 | 42 | 21.5 | 35 | 15.8 | 150 | 192 | 21 | 1.02 |
10-8mm | 3.15 | 12.8 | 42.5 | 26 | 35 | 15.8 | 162.5 | 208.5 | 23 | 1.24 |
13-8mm | 5.3 | 21.6 | 48 | 32.5 | 39 | 18 | 191 | 246 | 31 | 3.6 |
16-8mm | 8 | 32.8 | 62 | 43 | 53 | 25 | 243.5 | 313 | 34 | 4.66 |
20-8mm | 12.5 | 50 | 68 | 49.5 | 51 | 28.5 | 276.5 | 363.5 | 41.5 | 7.4 |
22-8mm | 15 | 60 | 79 | 54.5 | 65 | 32 | 332 | 431 | 55.7 | 10.6 |
26-8mm | 21.2 | 84.8 | 105 | 81 | 114 | 40 | 429.5 | 545.5 | 70 | 21.4 |
32-8mm | 31.5 | 126 | 105 | 100 | 96 | 40 | 465.3 | 596 | 76.2 | 32 |
Choose Titansuhe chain hooks manufacturers , Choose custom designed professional solutions with reasonable and competitive prices.
