Grade 8 Short Link Chain

TITANSUHE's G80 short link lifting chain is a kind of round steel chain that is specially designed for lifting and lashing purposes. For lifting application, we have a fine tolerance chain for the rigging hoist and a medium tolerance chain for the rigging chain sling. No matter for which purpose, we calibrate each link to make sure the chain link can be well seated in the hoist load wheel groove or to be sure that the chain sling has the same length at each leg. These are the most critical points for the safety of a lifting or lashing system and can greatly increase its service life.

pho

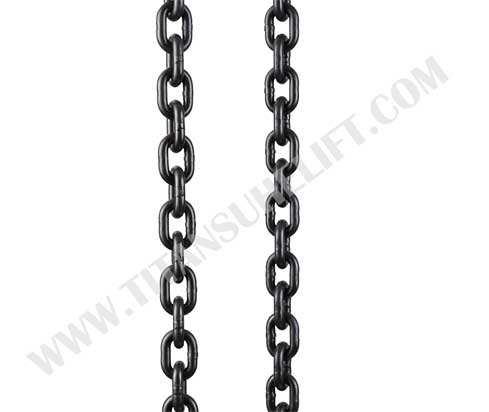

grade 8 short link lifting chain 1

Data Sheet of Grade 8 Short Link Lifting Chain

Size

Width (mm)

W.L.L

Test Load

Breaking Load min.

Weight

(mm)

Inside min.

Outside max.




kg/m


a

b

t

KN

KN


7x21

9.5

25.9

1.5

38.5

61.6

1.1

10x30

13

37

3.15

78.5

126

2.2

16x48

20.8

59.2

8

201

322

5.7

22x66

28.6

81.4

15

380

608

10.8

32x96

41.6

118

31.5

804

1280

23



Still not find the material handling equipment you need, Contact Titansuhe for custom hoist lifting straps.


Drawing of Grade 8 Short Link Lifting Chain

Drawing of Grade 8 Short Link Lifting Chain
