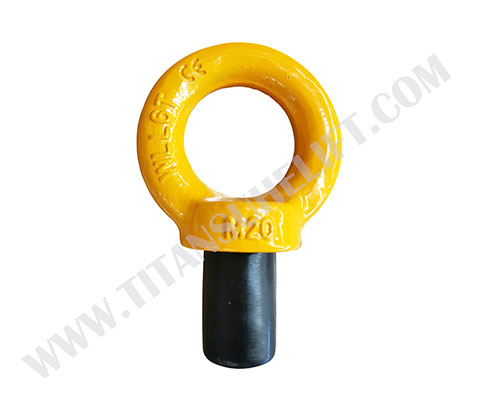

Working as a lifting point or anchor, eye bolts are used to screw in the tapped hold on a structure, through which rope, cable or shackles can be secured. It is mostly used to create a lifting eye so that a lifting equipment can be attached to machinery.

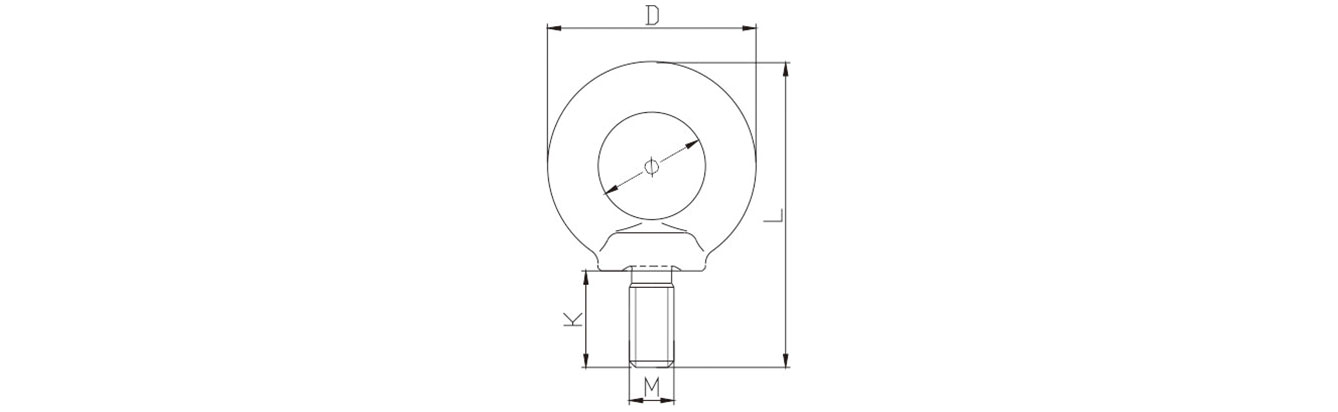

Size | W.L.L (t) | Dimension (mm) | N.W, (kg/pc) | ||||
0° | 90° | D | K | Φ | L | ||
M6 | 0.4 | 0.15 | 28 | 13 | 16 | 42 | 0.05 |
M8 | 1 | 0.4 | 36 | 15 | 20 | 51 | 0.06 |
M10 | 1 | 0.4 | 45 | 18 | 25 | 63 | 0.11 |
M12 | 2 | 0.75 | 54 | 22 | 30 | 75 | 0.18 |
M16 | 4 | 1.5 | 63 | 28 | 35 | 88 | 0.28 |
M20 | 6 | 2.3 | 72 | 30 | 40 | 101 | 0.45 |
M24 | 8 | 3.2 | 90 | 38 | 50 | 128 | 0.87 |
M30 | 12 | 4.5 | 108 | 45 | 60 | 154 | 1.66 |
M36 | 16 | 7 | 126 | 55 | 70 | 183 | 2.65 |
M42 | 24 | 9 | 144 | 65 | 80 | 212 | 4.03 |
M48 | 32 | 12 | 166 | 70 | 90 | 238 | 6.38 |
Still not find the material handling equipment you need, Contact Titansuhe for custom lifting chain parts.
