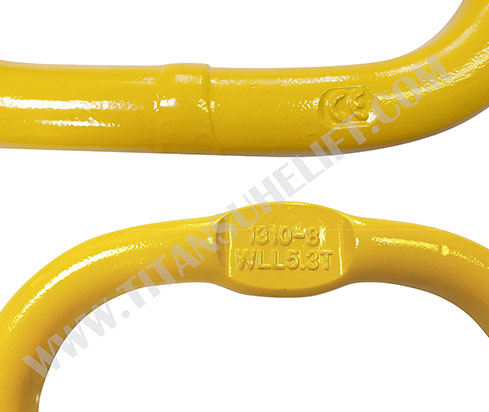

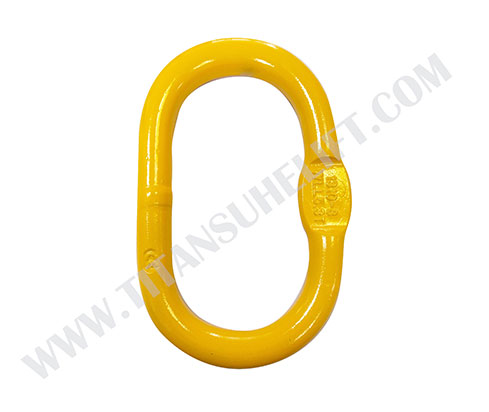

As an essential parts of lifting slings, master control link can be used to make 1 leg or 2 leg chain sling, wire rope sling or strap slings. TITAN SUHE provide a broad range of master control links with different dimensions to fit your sling choice. All our master links can be engineered with flat or without flat. When it comes with flat, it is more used with coupler links for easy and fast connect.

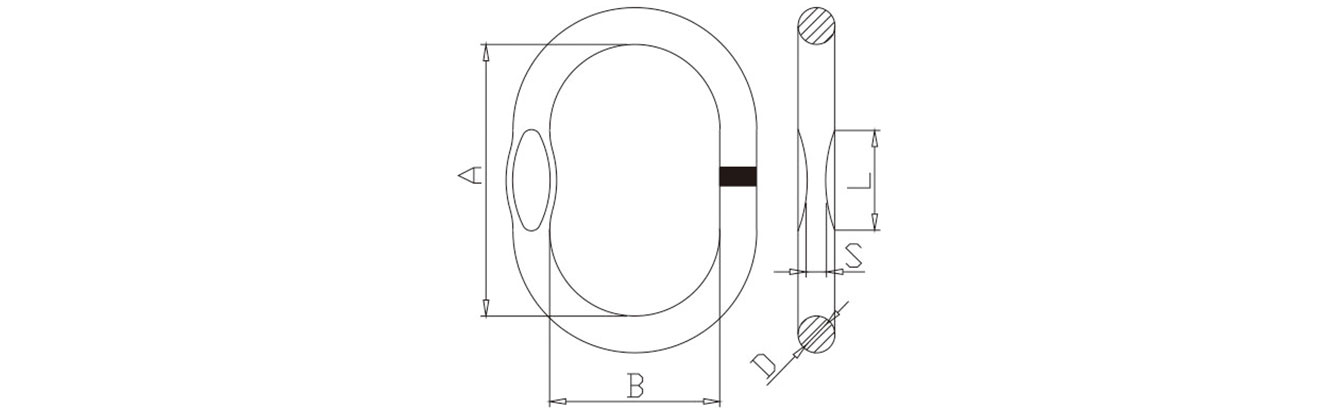

Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | ||||
A | B | D | S | L | ||||
7/6-8 | 1.6 | 6.4 | 110 | 60 | 13 | 7 | 25 | 0.34 |
8/7-8 | 2.12 | 8.48 | 110 | 60 | 16 | 7 | 25 | 0.54 |
10/8-8 | 3.15 | 12.6 | 135 | 75 | 18 | 7 | 35 | 0.823 |
13/10-8 | 5.3 | 21.2 | 160 | 90 | 22 | 11 | 35 | 1.5 |
16/13-8 | 8 | 32 | 180 | 100 | 26 | 13 | 45 | 2.32 |
18/16-8 | 11.2 | 44.8 | 200 | 110 | 32 | 17 | 45 | 3.95 |
20/18-8 | 14 | 56 | 260 | 140 | 36 | - | - | 6.34 |
22/20-8 | 17 | 68 | 300 | 160 | 40 | - | - | 8.96 |
26/22-8 | 21.2 | 84.8 | 340 | 180 | 45 | - | - | 12.8 |
32/26-8 | 31.5 | 126 | 350 | 190 | 50 | - | - | 16.55 |
36/32-8 | 45 | 180 | 400 | 200 | 56 | - | - | 23.28 |
40/36-8 | 56 | 224 | 430 | 220 | 63 | - | - | 32 |
For one-stop system service with lifting chain accessories, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.
