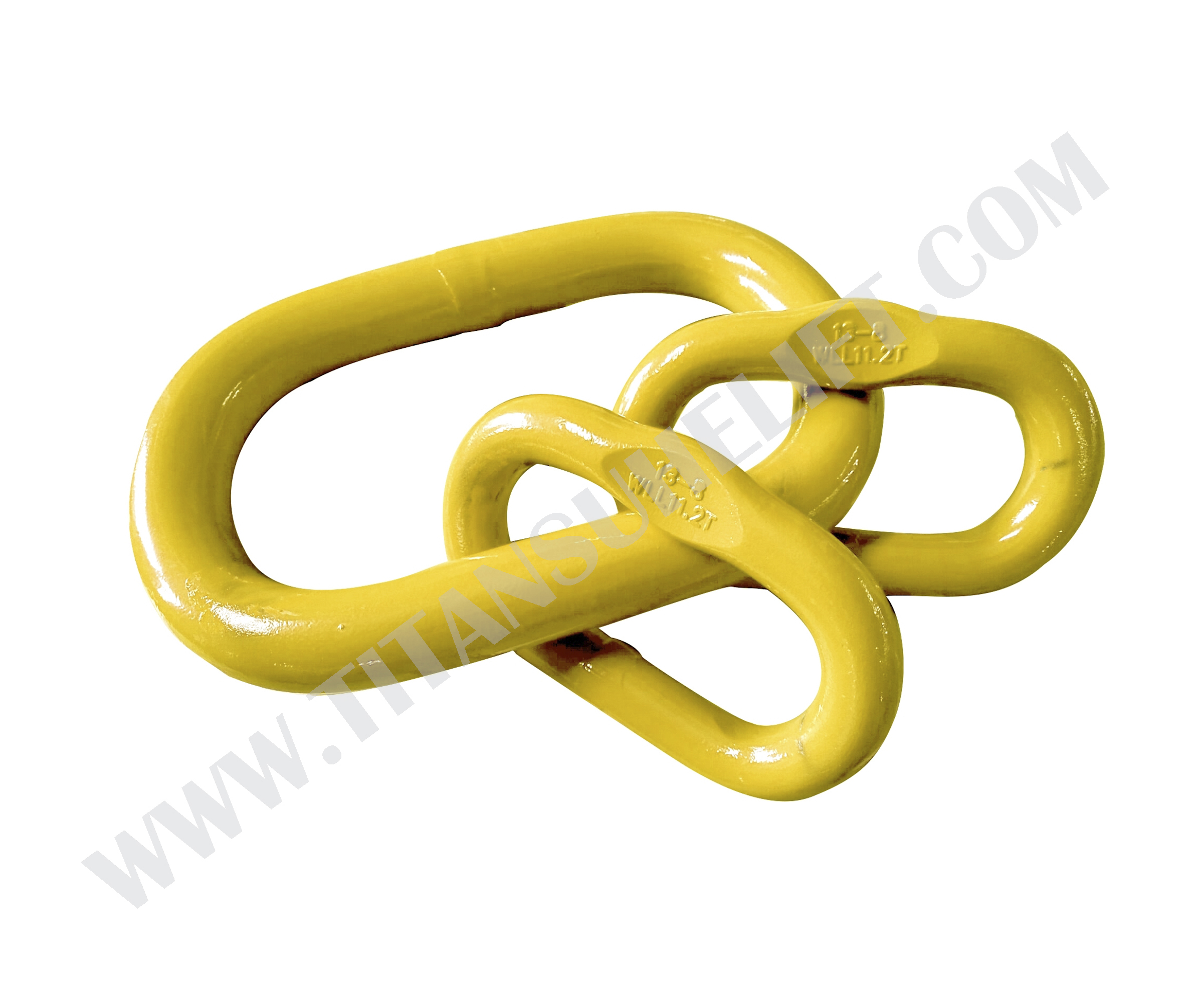

To make 3 leg or 4 leg lifting sling, you need Master link assembly as a control link. TITANSUHE provide both welded master link assembly and forged master link assembly as per EN specification or ASME specifications. The sub links can come with round steel or engineer with flat for easy rigging of connecting links.

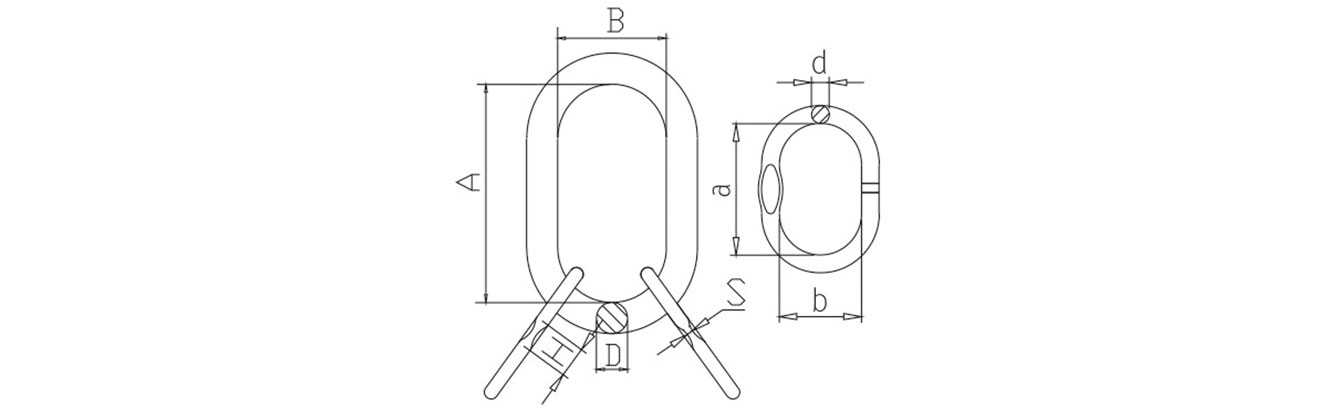

Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | |||||||
A | B | D | a | b | d | s | H | ||||
6-8mm | 2.36 | 9.44 | 135 | 75 | 18 | 54 | 25 | 13 | 7 | 25 | 1.18 |
7-8mm | 3.15 | 12.6 | 135 | 75 | 18 | 60 | 38 | 13 | 7 | 25 | 1.24 |
8-8mm | 4.25 | 17 | 160 | 90 | 22 | 70 | 34 | 16 | 7 | 25 | 2.2 |
10-8mm | 6.7 | 26.8 | 180 | 100 | 26 | 85 | 40 | 18 | 11 | 35 | 3.4 |
13-8mm | 11.2 | 44.8 | 200 | 110 | 32 | 115 | 50 | 22 | 13 | 35 | 6.1 |
16-8mm | 17 | 68 | 260 | 140 | 36 | 140 | 65 | 26 | 17 | 45 | 9.98 |
18-8mm | 21.2 | 84.8 | 340 | 180 | 45 | 180 | 100 | 32 | - | - | 18.9 |
20-8mm | 26.5 | 106 | 350 | 190 | 50 | 180 | 100 | 32 | - | - | 22.6 |
22-8mm | 31.5 | 126 | 350 | 190 | 50 | 180 | 100 | 36 | - | - | 25.2 |
26-8mm | 45 | 180 | 400 | 200 | 56 | 200 | 110 | 40 | - | - | 34.26 |
28-8mm | 50 | 200 | 430 | 220 | 63 | 200 | 110 | 45 | - | - | 47.11 |
32-8mm | 63 | 252 | 460 | 250 | 72 | 200 | 110 | 50 | - | - | 66.46 |
Titansuhe lifting chains and accessories will be your ideal solution for construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
