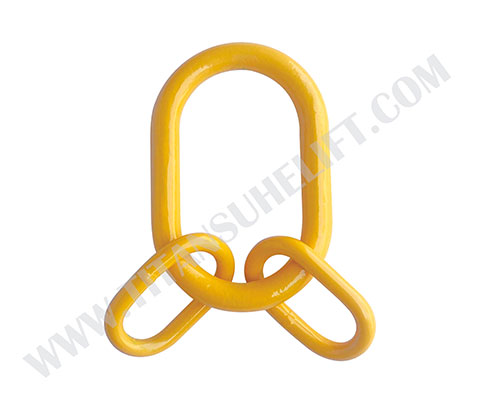

Constructed with drop forged master link and welded sub link, this master link assembly features with high strength and easy attachment with connecting link to make a 3 legs or 4 legs chain sling or wire rope slings. The sub link can come either with round steel or pressed flat.

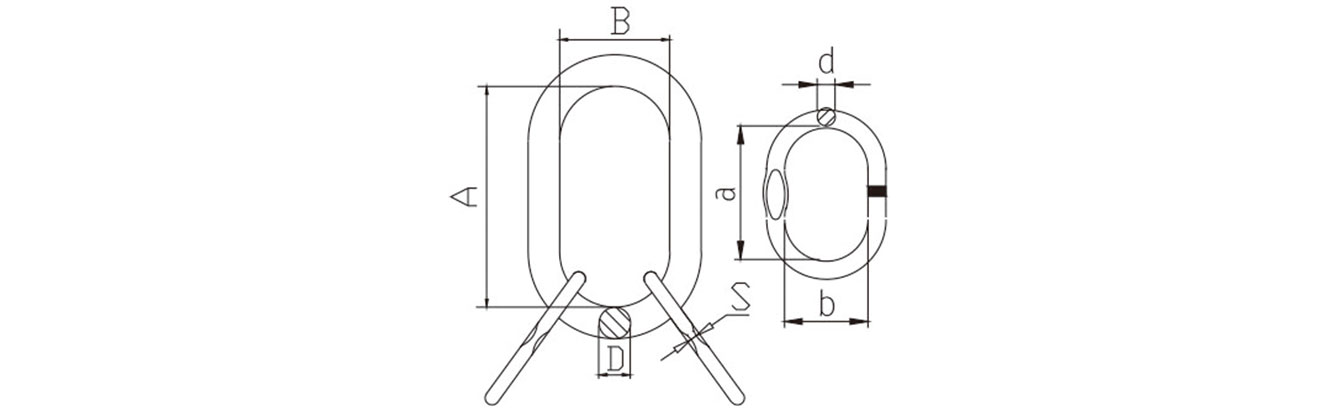

Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | ||||||
A | B | D | a | b | d | s | ||||
3/4" | 4.1 | 20.5 | 140 | 70 | 20 | 85 | 40 | 14 | 7.6 | 1.55 |
1" | 8.4 | 42 | 178 | 89 | 25 | 100 | 60 | 18 | 8.4 | 3.29 |
1-1/4" | 14.1 | 70.5 | 220 | 110 | 32 | 100 | 60 | 22 | 13.5 | 7.18 |
1-1/2" | 21.3 | 106.5 | 267 | 135 | 38 | 180 | 100 | 28 | 16.5 | 12.91 |
1-3/4" | 33.3 | 166.5 | 305 | 152 | 45 | 180 | 100 | 35 | 18.5 | 21.25 |
2" | 40.3 | 201.5 | 356 | 178 | 50 | 180 | 100 | 38 | - | 30.34 |
As a manufacturing group and professional supplier of lifting chain assembly,Titansuhe has committed to the development of lifting products, material handling, and rigging equipment for more than 15 years.
