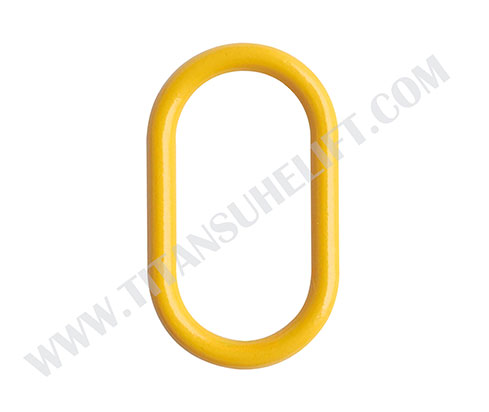

A-342 Master Link is a US type master link made according to Crosby Specification. It is one piece construction drop forged by alloy steel with extreme strength and worry free of welding defects. Each pieces are proof tested at 2.5 times of rated working load limit.
Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | ||

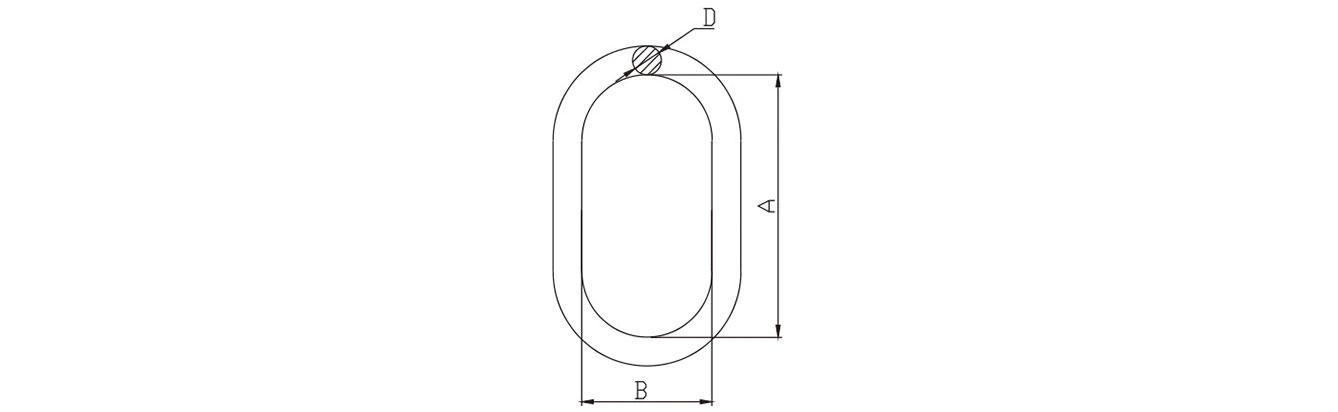

A | B | D | ||||
1/2" | 2.2 | 11 | 127 | 63.5 | 13 | 0.36 |
5/8" | 3 | 15 | 152 | 76 | 16 | 0.7 |
3/4" | 4.7 | 23.5 | 140 | 70 | 19 | 0.93 |
7/8" | 6.4 | 32 | 160 | 90 | 22 | 1.5 |
1" | 11 | 55 | 178 | 89 | 25 | 2.1 |
1-1/4" | 16 | 80 | 222 | 111 | 32 | 4.24 |
1-1/2" | 21.7 | 108.5 | 267 | 135 | 38 | 7.17 |
1-3/4" | 28.4 | 142 | 305 | 152 | 45 | 11.55 |
2" | 44.3 | 221.5 | 355 | 178 | 51 | 17.2 |
2-1/4" | 65 | 325 | 406 | 203 | 57 | 24.5 |
2-1/2" | 66.8 | 334 | 406 | 203 | 63.5 | 30.9 |
2-3/4" | 98 | 490 | 406 | 241 | 70 | 39.5 |
3" | 103 | 515 | 457 | 228 | 76 | 50.34 |
3-1/4" | 119 | 595 | 508 | 254 | 82.5 | 65.68 |
3-1/2" | 126 | 630 | 310 | 305 | 89 | 90.24 |
3-3/4" | 152 | 760 | 508 | 254 | 95 | 89.27 |
4" | 169 | 845 | 508 | 254 | 102 | 103.43 |
Titansuhe offers custom chain rigging accessories for wide range of lifting tools and material handling equipment which can be used either for lifting systems or to rigging a lashing system.
