Grade 8 Eye Sling Hook

Made of alloy steel, eye sling hook is grade to 80 quality with 4 times safety factor. It is equipped with sturdy spring loaded latch to keep the load seat inside the hook without worry it will skip out. This greatly enhances the lifting security. The innovative design of oversized eye makes the hook excellent to fit with chain slings, wire rope slings and some times the strap slings. Furthermore, this hook has a wide throat opening which provide easy and quick attachment to the anchor point or the lifting point.

pho

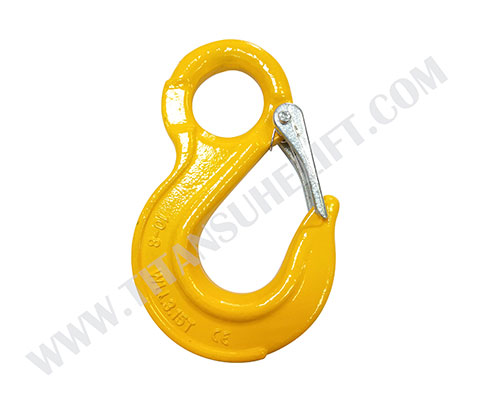

Eye Sling Hook

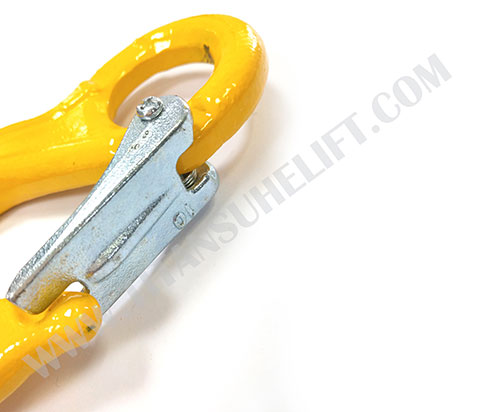

Chain Sling Hook

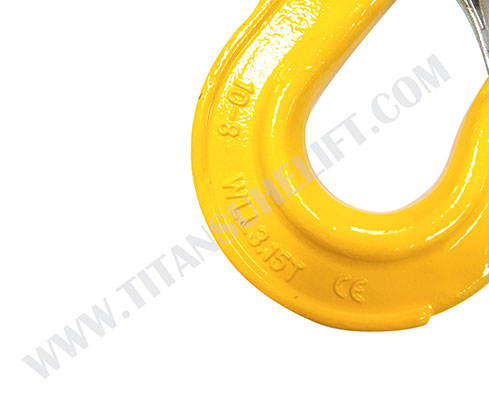

Chain Sling Hook Types

Data Sheet of Grade 8 Eye Sling Hook

Size

W.L.L (t)

B.L (t)

Dimension (mm)

N.W. (kg/pc)




Φ1

E

D

Φ

L


6-8mm

1.12

4.48

9

24

21

20

108

0.3

8-8mm

2

8

11

30

56

25

133

0.4

10-8mm

3.15

12.6

15

34

39

38

167

0.9

13-8mm

5.3

21.2

19

39

54

43

213

1.7

16-8mm

8

32

23

46

64

50

255

3.2

20-8mm

12.5

50

24

40

80

62

305

5.8

22-8mm

15

60

32

71

80

62

348

8.5

26-8mm

21.2

84.8

35

81

82

64

394

13

32-8mm

31.5

126

37

102

112

88

480

17



Titansuhe supply chain hoist hook, we engaged in the design, manufacturing, and distribution of various lifting tools, equipment, rigging hardware, elevator and elevator parts more than 15 years.

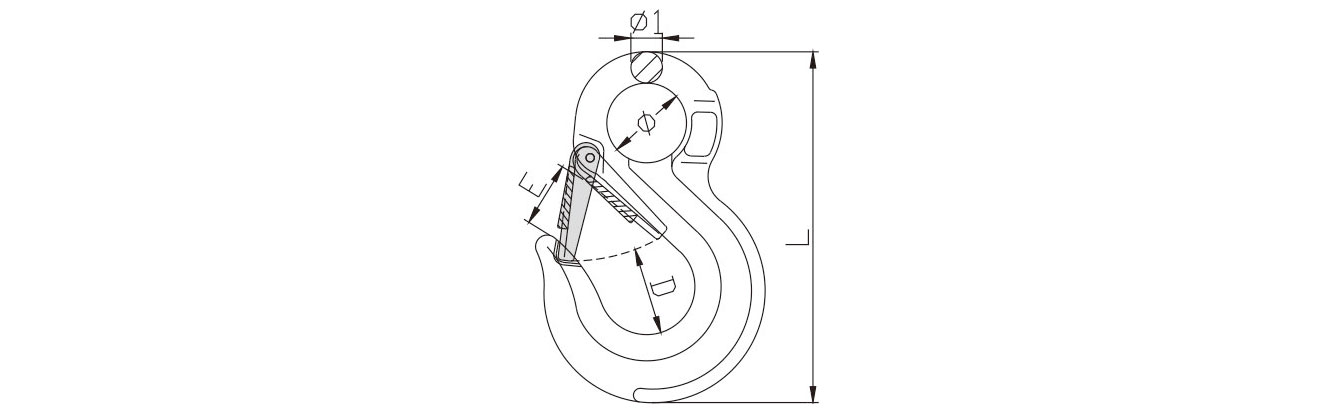

Drawing of Grade 8 Eye Sling Hook

Drawing of Grade 8 Eye Sling Hook
