Grade 8 Eye Shortening Grab Hook

Grade 8 grab hooks is designed for chain shortening or choker forming purpose. It is designed with a narrow, straight-sided throat that can hold a link of chain and prevent chain links free moving in the hook throat. The narrow neck of grab hook can grab the chain and hook back to chain legs to form a choker. When it is used to short the chain, the twist of the chain must be minimized and ensure the chain link is fully engaged in hooks. This hook is designed to receive a specific chain size. For example, an 8mm grab hook should be used only with a 8mm chain, larger or smaller chains can not be used.

pho

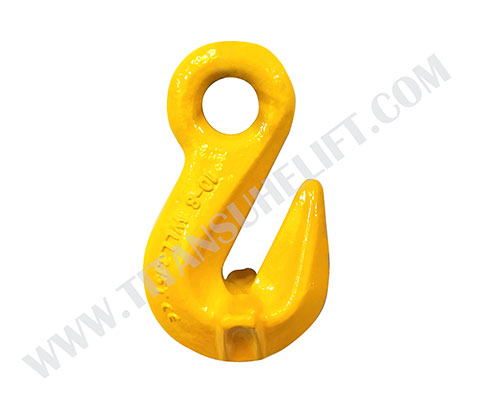

Eye Shortening Grab Hook

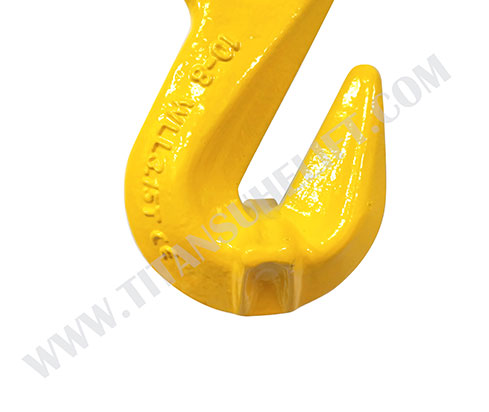

Eye Grab Hook

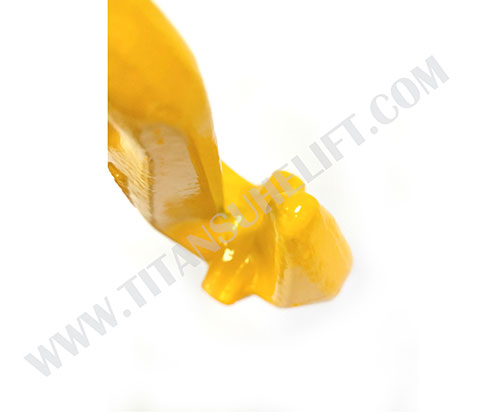

Shortening Hook

Data Sheet of Grade 8 Eye Shortening Grab Hook

Size

W.L.L (t)

B.L (t)

Dimension (mm)

N.W (kg/pc)

E

Φ

H

R

L

6-8mm

1.12

4.48

8

13.5

16

51

75.2

0.14

8-8mm

2

8

10.8

17

18.5

60.5

88.5

0.245

10-8mm

3.15

12.6

13

20

29

79.5

121.5

0.65

13-8mm

5.3

21.2

16.5

26

42.8

99.7

158

1.39

16-8mm

8

32

19.2

30

45.7

104

169

2.2

20-8mm

12.5

50

24

37

56

140

219

4.6

22-8mm

15

60

28

44

68

165

259

8.2

26-8mm

21.2

84.8

30

41

77

188.5

298

9.8

32-8mm

31.5

126

38

57

95

228.5

361

19.34



Titansuhe offers custom hook for chain hoist for wide range of lifting tools and material handling equipment which can be used either for lifting systems or to rigging a lashing system.

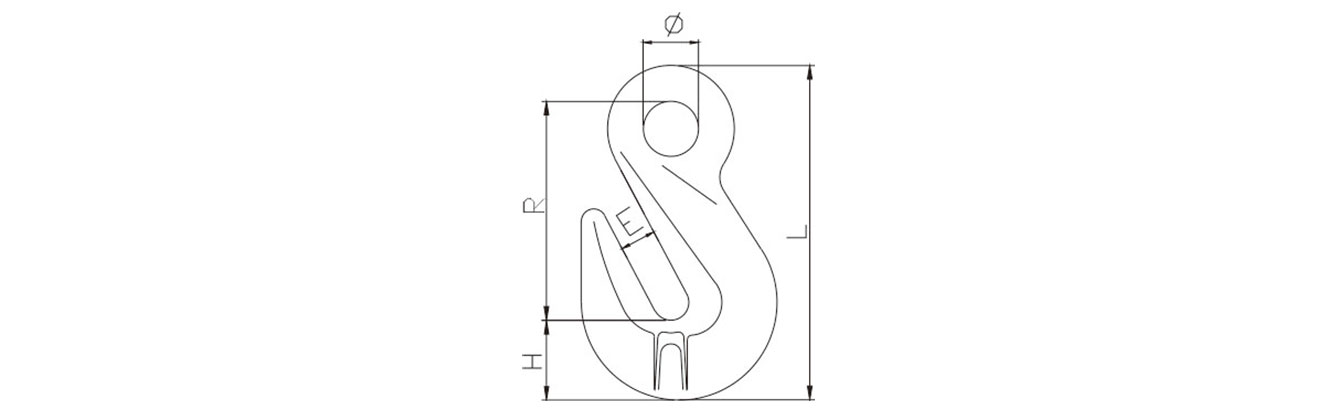

Drawing Of Grade 8 Eye Shortening Grab Hook

Drawing Of Grade 8 Eye Shortening Grab Hook
