Grade 8 Eye Self Locking Hooks

Structured with a safety trigger that open and close the hook latch, the load is completely under control. The unique locking mechanism can always seat the load in hook and prevent accidental slipping. When a load is applied, the latch will be engaged automatically and keeps lock even if the load is set down momentarily. To open the hook, you need press the spring loaded trigger. And it can keep open unless you apply an extra force on the hook latch. This feature will make the hookups easy.

pho

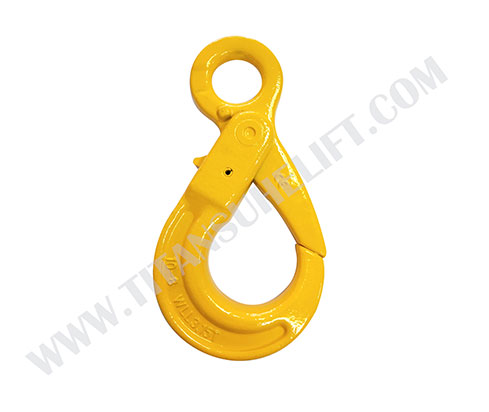

Eye Hook And Chain

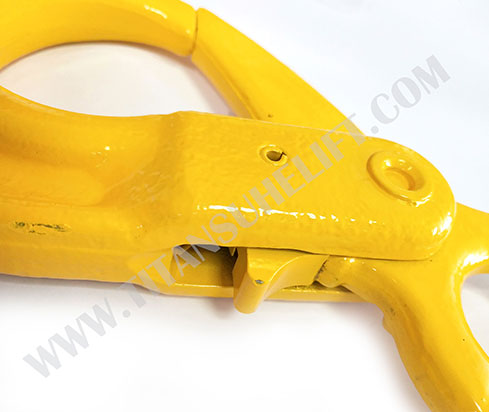

Hook And Eye Chain

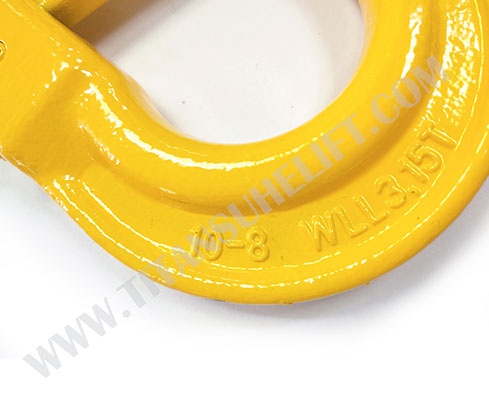

Self Locking Hooks

Data Sheet of Grade 8 Eye Self Locking Hooks

Size

W.L.L (t)

B.L (t)

Dimension (mm)

N.W. (kg/pc)




Φ1

R

D

Φ2

H

E


6-8mm

1.12

4.48

22

110.5

10

34

19.5

28

0.5

8-8mm

2

8

25

136

12

46

24

34

0.8

10-8mm

3.15

12.6

32

171

15

56

28.5

44

1.55

13-8mm

5.3

21.2

40.5

208.5

19.5

69

40

52

3.2

16-8mm

8

32

56

257.5

22

86

50.5

60

5.74

20-8mm

12.5

50

64.5

275

27

100

55

81

8.5

22-8mm

15

60

70

320

30

98

67

82

13

26-8mm

21.2

84.8

80

363

34

110

75

110

18

32-8mm

31.5

126

105

472

45

166

97

168

44.5



For one-stop system service with rigging chain hooks, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.

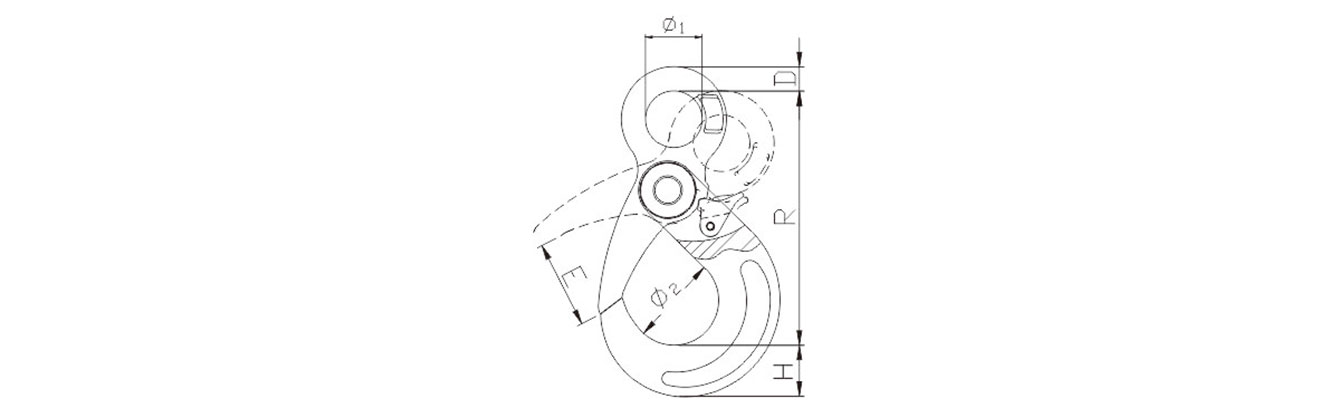

Drawing Of Grade 8 Clevis self locking Hooks

Drawing Of Grade 8 Clevis self locking Hooks
