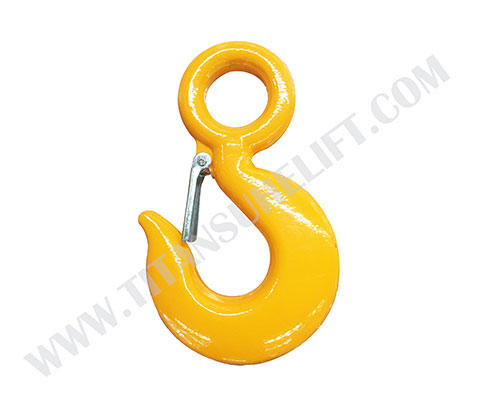

Grade 80 Eye hook is mostly used to assemble with wire rope to make wire rope slings for lifting purpose. It is also widely used on some rescue equipment such as hand winch, electric winch, wire rope winch. The equipped latch can always prevent the loads or the anchoring point slip out of the hook and maximumly protect the operator from injury.
Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | ||||

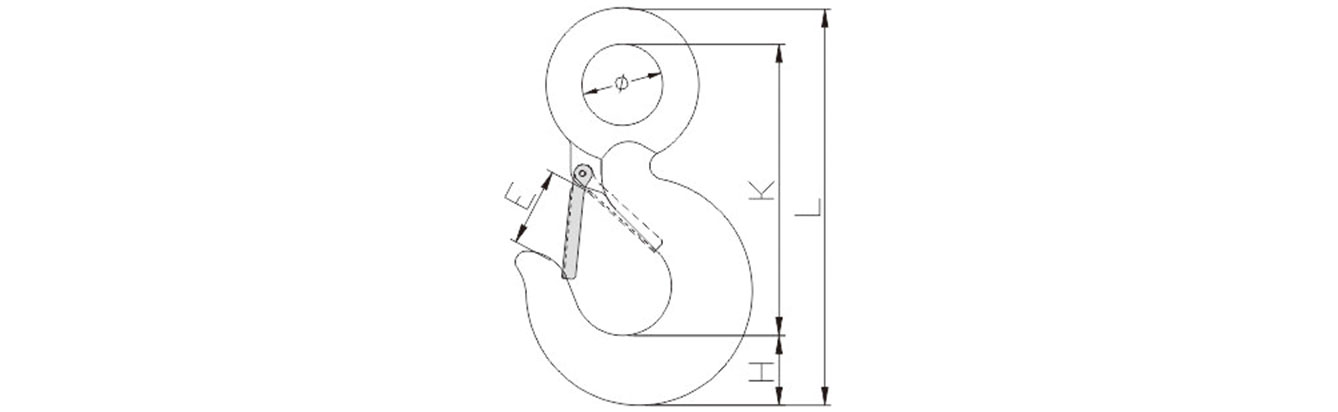

Φ | E | H | K | L | ||||
6-8mm | 1.12 | 4.48 | 19 | 22 | 19 | 80 | 110 | 0.28 |
8-8mm | 2 | 8 | 28 | 25 | 25 | 103 | 140.5 | 0.65 |
10-8mm | 3.15 | 12.6 | 31 | 27.5 | 28 | 118 | 162 | 0.94 |
13-8mm | 5.3 | 21.2 | 39 | 33 | 35 | 145 | 201 | 1.95 |
16-8mm | 8 | 32 | 51 | 40 | 45 | 180 | 256 | 3.77 |
20-8mm | 12.5 | 50 | 62 | 51 | 57 | 230 | 317 | 6.8 |
22-8mm | 15 | 60 | 73 | 57 | 70 | 260 | 360 | 9.8 |
26-8mm | 21.2 | 84.8 | 89 | 75 | 76 | 318 | 434 | 16.25 |
32-8mm | 31.5 | 126 | 90 | 98 | 91 | 360 | 495.5 | 27.5 |
Titansuhe supply chain hooks manufacturers, we engaged in the design, manufacturing, and distribution of various lifting tools, equipment, rigging hardware, elevator and elevator parts more than 15 years.
