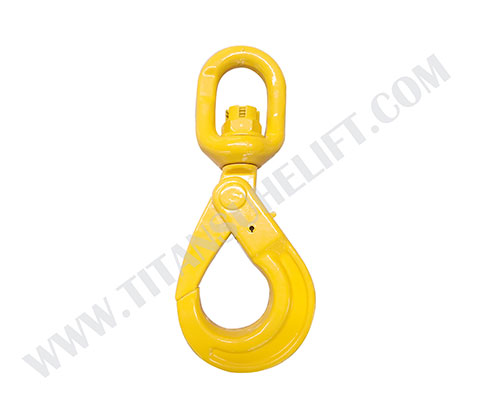

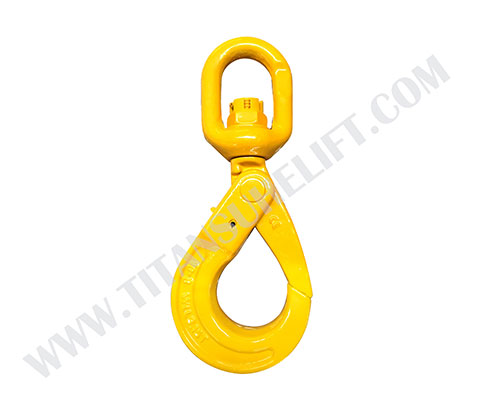

European type self locking hook is made according to EN1677 specification. Constructed with self-locking trigger latch, this hook provides great safety. The hook latch will lock automatically and will not open under load unless you release the trigger by hand. The eye ring also provide safe collection with lifting chains or wire ropes, greatly reduce the accidental pin drops or slips.

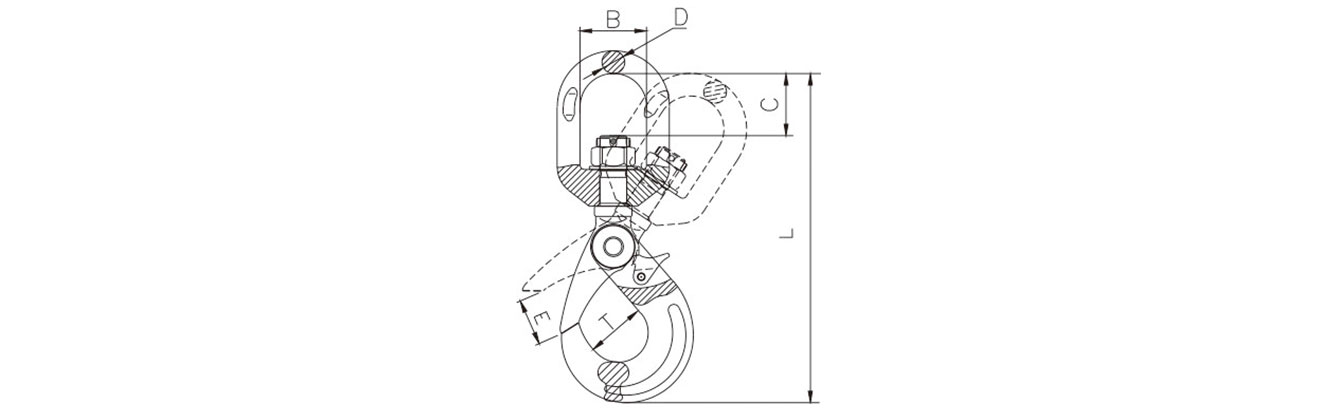

Size (in.) | W.L.L (t) | B.L (t) | Dimension(mm) | N.W. (kg/pc) | |||||
B | C | D | L | T | E | ||||
6-8 | 1.12 | 4.48 | 32.5 | 22 | 11.25 | 170 | 34 | 29 | 0.71 |
7/8-8 | 2 | 8 | 35.5 | 26 | 12.5 | 210 | 46 | 34 | 1.1 |
10-8 | 3.15 | 12.6 | 42 | 34 | 15 | 247 | 56 | 44 | 2 |
13-8 | 5.3 | 21.2 | 50 | 38.5 | 16 | 302 | 69 | 52 | 4 |
16-8 | 8 | 32 | 61 | 55 | 21.5 | 383 | 86 | 60 | 7.3 |
20-8 | 12.5 | 50 | 72 | 61 | 26 | 418 | 100 | 83 | 11.6 |
22-8 | 15 | 60 | 95 | 95 | 33 | 527 | 98 | 88 | 16 |
26-8 | 21.2 | 84.8 | 122 | 115 | 42 | 610 | 110 | 95.5 | 21.5 |
32-8 | 31.5 | 126 | 140 | 146 | 52 | 777 | 166 | 150 | 79 |
Still not find the material handling equipment you need, Contact Titansuhe for custom chain hooks manufacturers.
