Grade 8 Clevis Sling Hook

The innovative design of engineered clevis head enable this sling hook be fitted straight onto a chain without any additional connectors. Spring loaded safety latch prevents load slipping off the hook to ensure the safe lift. Removable hook pin can easily go through a chain link or any other media attachment which can avoid mismatch between hooks and its attachment. All our chain hooks are made of alloy steel with heat treatment that gives a high strength and super abrasion resistance. We can provide both standard grade 80 chain hooks and EN standard Grade 80 hooks.

pho

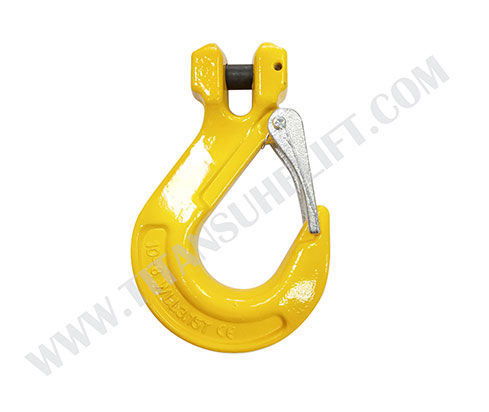

Lifting Clevis Hook

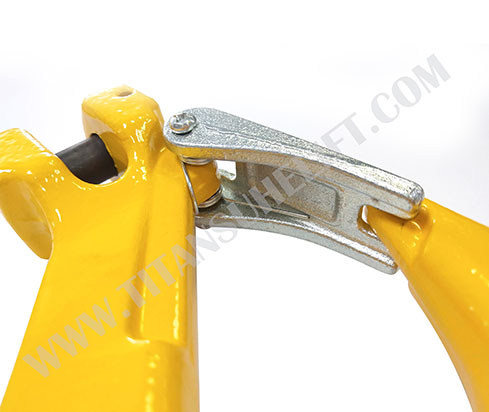

Clevis Sling Hook With Latch

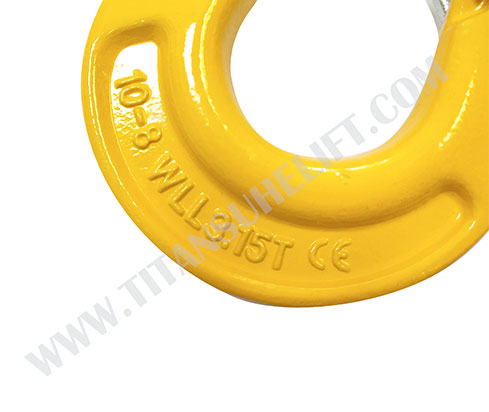

Clevis Sling Hook With Safety Latch

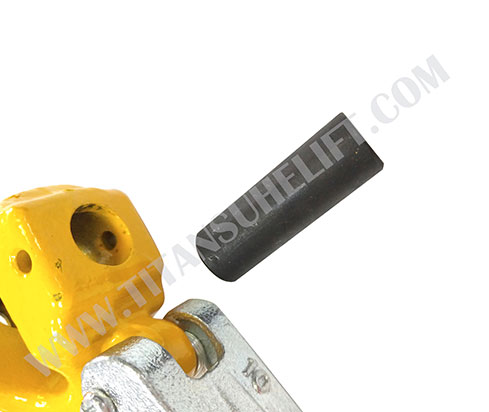

Clevis Eye Hook

Data Sheet of Grade 8 Clevis Sling Hook

Size

W.L.L (t)

B.L (t)

Dimension (mm)

N.W. (kg/pc)

A

B

Φ

H

K

E

6-8mm

1.12

4.48

8

32

35

23

76

26

0.32

8-8mm

2

8

9.5

37

37

32.5

85.5

29

0.52

10-8mm

3.15

12.8

13

49

46

35

104

39

1.05

13-8mm

5.3

21.2

16.5

56.5

56

42.5

128

47

2

16-8mm

8

32

21.5

70.5

60

54

150

55

3.7

20-8mm

12.5

50

24

77

79

58

180

61

6

22-8mm

15

60

27

91

101

62

213

72

10.4



Choose Titansuhe chain hooks manufacturers, Choose custom designed professional solutions with reasonable and competitive prices.

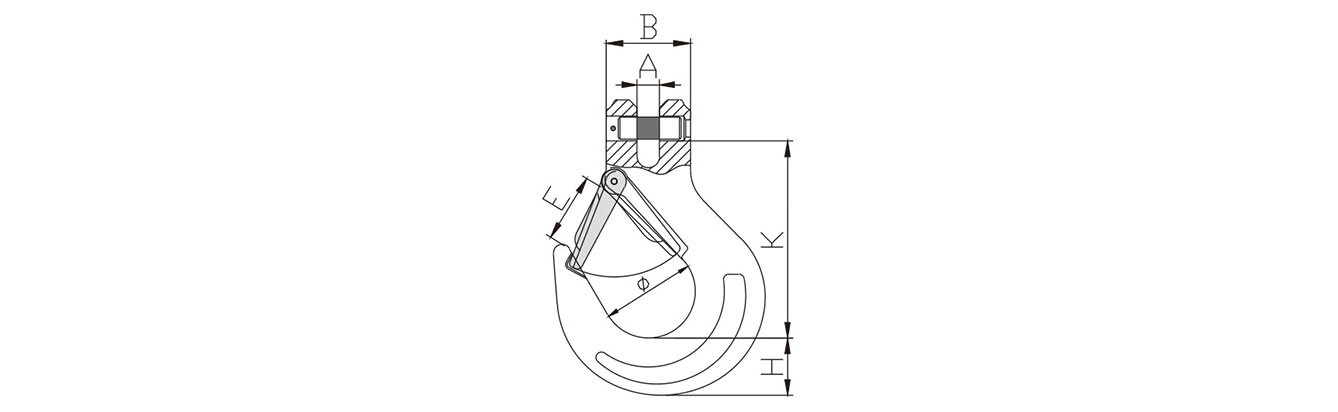

Drawing of Grade 8 Clevis Sling Hook

Drawing of Grade 8 Clevis Sling Hook
