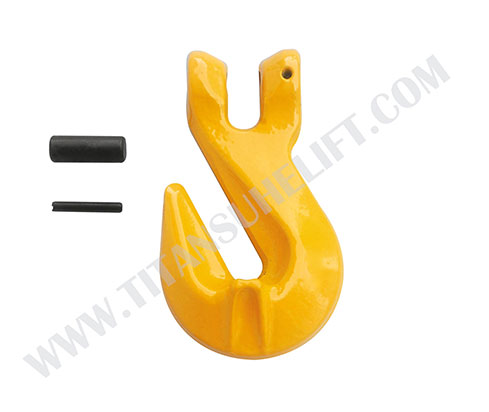

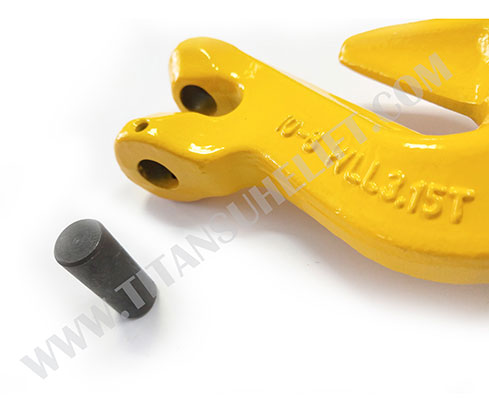

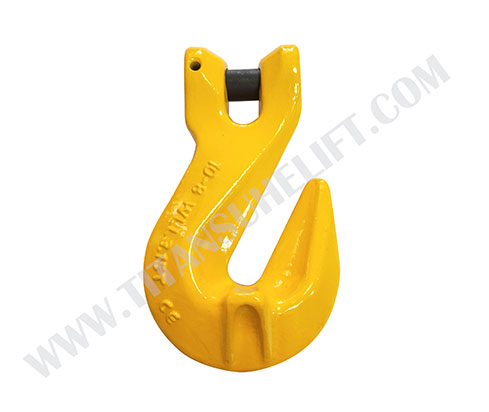

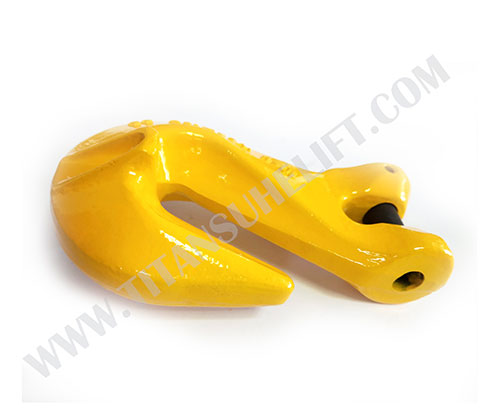

Made of drop forged alloy steel, TITANSUHE’s Clevis grab hooks featured with a narrow and straight up throat that can well received the specific chain size. The innovative cradle design allows 100% efficiency of chains. And clevis design enables direct connection without extra media attachment need. It saves both labour and cost.

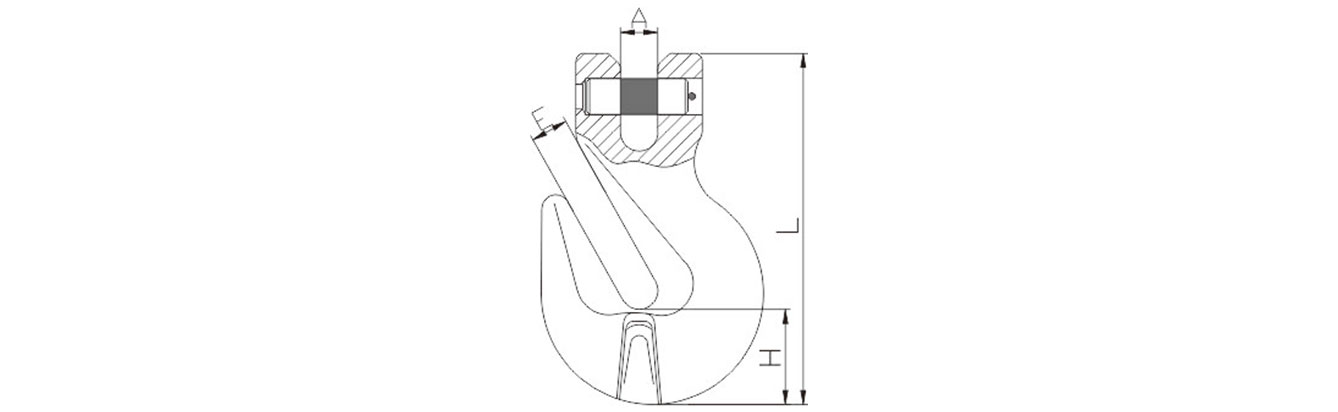

Size | W.L.L (t) | B.L (t) | Dimension (mm) | N.W. (kg/pc) | |||
E | A | H | L | ||||
6-8mm | 1.12 | 4.48 | 8 | 8 | 16 | 75 | 0.25 |
8-8mm | 2 | 8 | 10.8 | 9.5 | 21.6 | 90 | 0.32 |
10-8mm | 3.15 | 12.6 | 13.5 | 12.5 | 30 | 126 | 0.73 |
13-8mm | 5.3 | 21.2 | 16.5 | 15 | 42.5 | 163.5 | 1.6 |
16-8mm | 8 | 32 | 19.2 | 19.5 | 45.5 | 183.5 | 2.8 |
20-8mm | 12.5 | 50 | 24 | 24 | 56 | 219 | 5 |
22-8mm | 15 | 60 | 27 | 27 | 68.5 | 254 | 6.3 |
