Grade 8 Clevis Self Locking Hooks

Clevis self locking hooks are designed for direct connection with grade 8 chains. It is produced according to European standard for components EN1677-3. The China clevis slip hook locks automatically under load or tension and must be unlocked manually to open hook and release load. This can prevents unintended hook opening. Because the latch of the China clevis slip hook with latch type can not be removed, this China clevis slip hook provides full safety for lifting.

pho

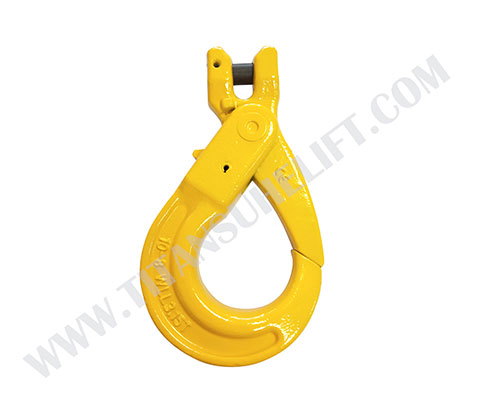

locking hook

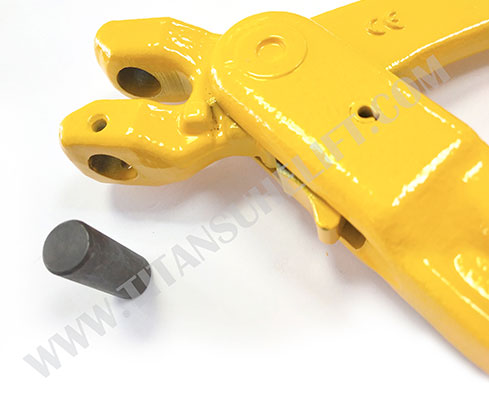

self latching hook

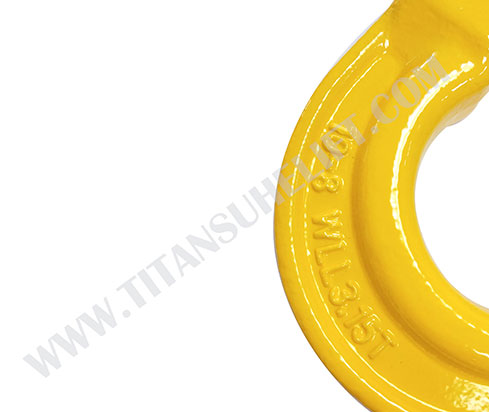

self closing hooks

Data Sheet of Grade 8 Clevis Self Locking Hooks

Size

W.L.L (t)

B.L (t)

Dimension (mm)

N.W. (kg/pc)




E

B

H

Φ

R


6-8mm

1.12

4.48

29

8.5

19.5

34

95.5

0.5

8-8mm

2

8

34

9.5

24

46

121

0.8

10-8mm

3.15

12.6

44

12

28.5

56

146

1.5

13-8mm

5.3

21.2

52

15

40

69

182

2.8

16-8mm

8

32

60

18

50.5

86

218

5.6

20-8mm

12.5

50

83

25

55

100

240

7.5

22-8mm

15

60

88

25.5

67

98

276.5

11.5

26-8mm

21.2

84.8

95.5

30

75

110

310.5

18.5



Titansuhe lifting sling hooks will be your ideal solution for construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.

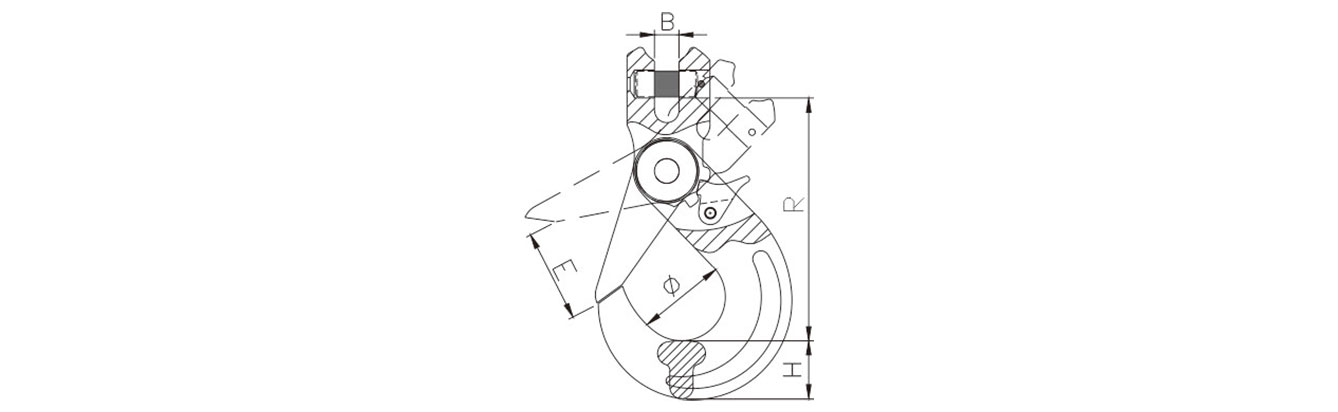

Drawing Of Grade 8 Clevis Self Locking Hook

Drawing Of Grade 8 Clevis Self Locking Hook
