Grade 10 Short Link Chain

Short Link Chain in Grade 10 is designed for professional overhead lifting. With about 25% higher strength than the Grade 8 chain, the Grade 10 short link chain is more used for applications that need a higher safety factor or occasions that require a lower deadweight. It can be used either as a hoist chain or to assemble a chain sling. TITANSUHE's Grade 10 short link chain ranges from 6mm up to 22mm with a working load from 1.4ton up to 19ton. All our Grade 10 short link chains are made from high tensile strength alloy steel 8620 and manufactured by automatic welding and bending machine. They are deburring treated, heat-treated, calibrated, proof tested, and clear marking stamped.

pho

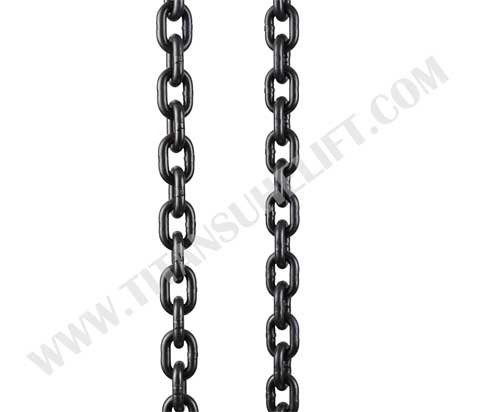

grade 10 short link chain 1

Data Sheet of Grade 10 Short Link Chain

Size

Width (mm)

W.L.L

Test Load

Min.Breaking Load

Weight

(mm)

Inside min.

Outside max.




kg/m


a

b

t

kN

kN


6x18

7.5

21

1.4

35.3

56.5

0.79

7.1x21

9

24.5

2

49.5

79.1

1.1

8x24

10

28

2.5

62.8

101

1.4

9X27

11

30.6

3.2

79.5

127

1.8

10x30

12.5

35

4

98.1

157

2.2

11.2x34

14.5

37.5

4.8

119

190

2.7

12x36

15

42

5.8

141

226

3.1

13x39

16.3

46

6.8

166

265

3.8

14x42

18

49

7.9

193

308

4.4

16x48

20

56

10

251

402

5.7

18x54

23.7

63.2

13

318

509

7.3

20x60

25

70

16

393

628

9

22x66

28

77

19

475

760

10.9



Titansuhe is dedicated to providing a full range of rigging lifting straps, we offer cost-effective and reliable solutions.


Drawing of Grade 10 Short Link Chain

Drawing of Grade 10 Short Link Chain
