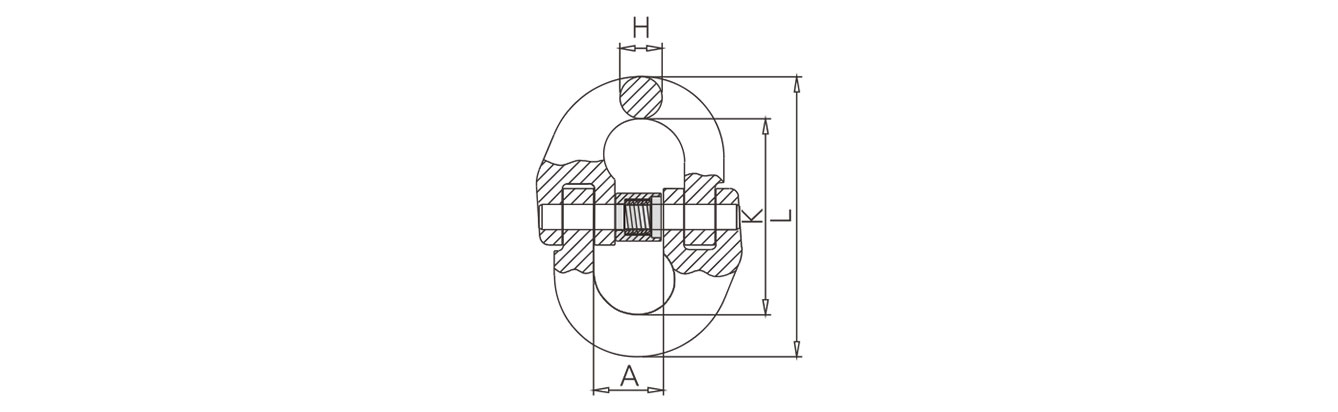

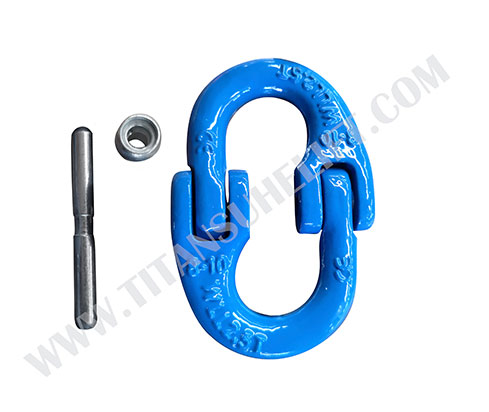

Grade 10 EuropeanType Connecting Link TCSH1001

• Powder coated, different color is available as per request.

• Working load limit permanently shown on the body.

• Max proof load is 2.5 times of the working load limited.

• Min. Breaking strength is 4 times of the W.L.L.

• Type Testing

In order to prove the design, material, heat treatment and method of manufacture, each size of TITAN SUHE's chain hooks has been type tested in the finished condition in order to demonstrate that the hooks possesses the required mechanical properties. The following testing procedures are particularly relevant:

• Test for Deformation

The Manufacturing Proof Force (MPF) for the relevant size of the Grade 8 hooks is applied and removed. The dimensions after proof loading shall not alter from the original dimensions within the tolerances prescribed in our specifications and in the international standards.

• Static Tensile Test

The Breaking Force (BF) for each hooks and master links and size is verified. The verified value shall be at least equal to the Minimum Breaking Force (MBF) value. The MBF value is equal to the Working Load Limit (WLL) multiplied by the safety factor.

• Fatigue Test

By fatigue testing in pulsator testing machines the toughest conditions of service are simulated.

• Manufacturing Testing

During manufacture continuous process tests are carried out according to the requirements in our specifications and in the

latest international standards. The following testing procedures are particularly relevant:

• Proof Force

Each individual component and chain link is tested to the Manufacturing Proof Force (MPF) level before delivery. The

MPF level is 2.5 times the WLL, equal to 62,5% of the Minimum Breaking Force.

• Non Destructive Test / Visual Inspection

3% of every production batch of forged components are subject to magnetic particle or dye penetrating examination. Visual inspection is carried out on each chain link and each forged component to detect defects.

• Static Tensile and Ultimate Elongation test

During manufacture, samples are tested and the Minimum Breaking Force (MBF) value and the total ultimate elongation are

verified.

• Bending Deflection

During manufacturing, of chain and master links, samples are taken and the minimum bend deflection is verified.
