Featured with quick installation and low headroom, TITANSUHE's GCT/GCL 620 series hoist trolley has many advantages compared with a regular hoist. The threaded shaft can be easily screwed in or screwed out to adjust the length width. With the hooking eye design on the shaft instead of additional bail hanging on the shaft, the overall height is reduced and headroom increased.

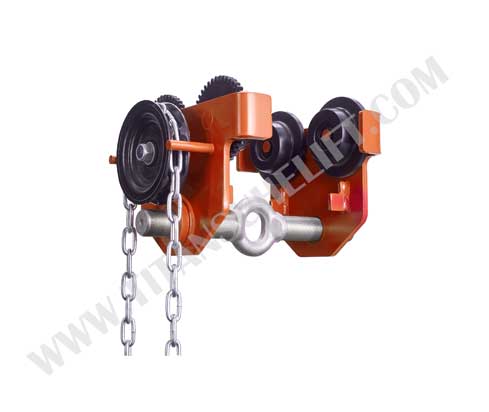

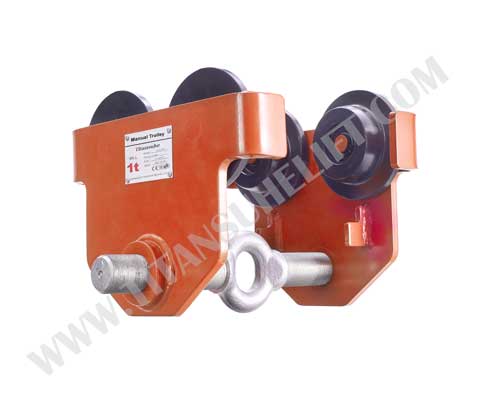

Model No.: GCT 620 for push beam trolley, GCL620 for geared beam trolley
Capacity: 3ton, other capacities available from 0.5ton to 5ton
Mini. Flange width: 66mm
Max. Flange Width: 220mm
Hand Chain Size: 5x25mm, for geared beam trolley only
Color: Powder painting in orange, other colors are available upon request
Packing: Kraft box for size 0.5t up to 5t and a wooden box for 10t and above
Anti-Drop Block
Forged trolley wheel
Anti-Crash side plate

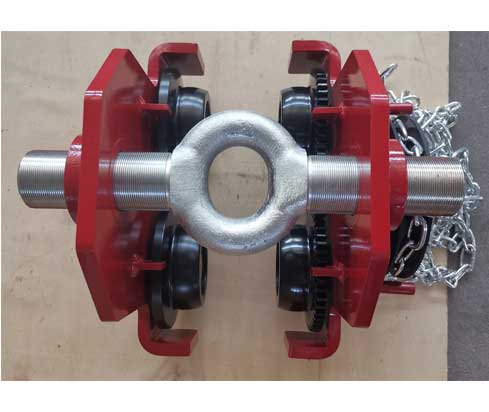

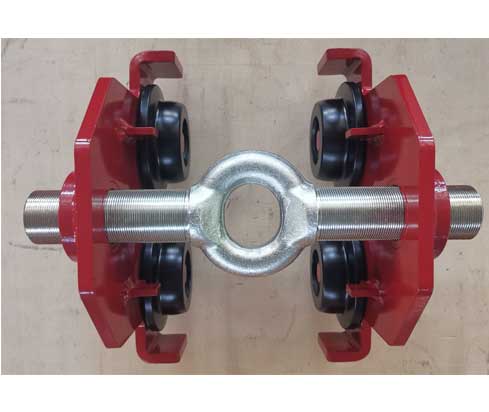

Threaded main shaft with hooking eye
Fast and Easy Installation and Maintenance-Threaded main shaft provide fast installation and maintenance.
Quick Flange Width Adjustment-By simply screwing in and screwing out the main shaft to quickly adjustment of the flange width.
Low Headroom for Confined Space-Eye type shaft reduces the overall height and gives more headroom for operation.

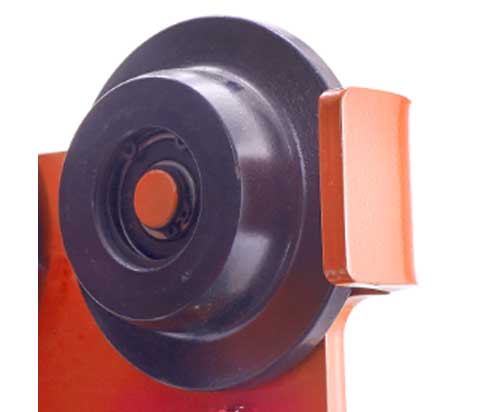

Forged Tight Wheel- Gives stable and smooth movement on the beam.

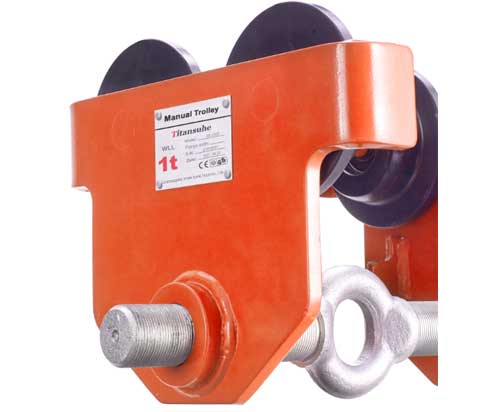

Anti-Crash Side Plate-Earflaps design can protect trolley wheel from crash.

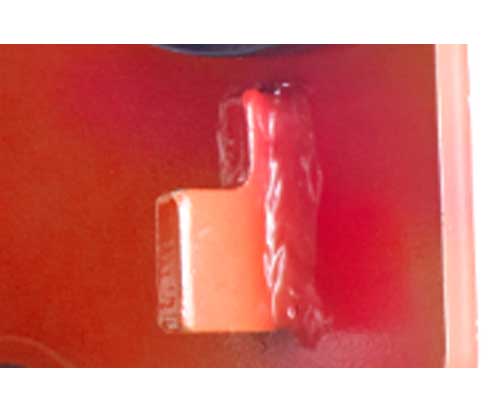

Welding Anti-Drop Block-Four blocks are welded on both side plates to keep the wheel tight on the track.
Industrial Powder Coating- meet RoHS and REACH requirement.
4 times of rated working load safety factor.

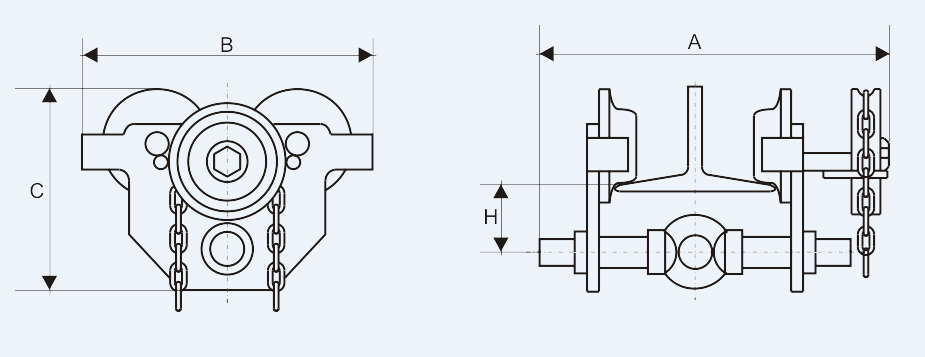

Capacity (t) | Beam width (mm) | Min. turning radius(m) | N.W. (KGS) | A (mm) | B (mm) | C (mm) | H (mm) |
0.5t | 50-220 | 0.9m | 5.5 | 290 | 212 | 166 | 67 |
1.0t | 58-220 | 1.0m | 8.7 | 300 | 238 | 189 | 74 |
2.0t | 66-220 | 1.1m | 14.6 | 300 | 277 | 220 | 92 |
3.0t | 74-220 | 1.3m | 24.5 | 321 | 330 | 283 | 119 |
5.0t | 90-220 | 1.4m | 34.5 | 415 | 346 | 305 | 126 |
Capacity (t) | beam width (mm) | Min. turning radius (m) | N.W. (KGS) | A (mm) | B (mm) | C (mm) | H (mm) |
0.5t | 50-220 | 0.9 | 9 | 352.5 | 212 | 166 | 67 |
1.0t | 58-220 | 1.0 | 12.6 | 353.5 | 238 | 189 | 74 |
2.0t | 66-220 | 1.1 | 18.5 | 355 | 270 | 220 | 92 |
3.0t | 74-220 | 1.3 | 30 | 400 | 330 | 283 | 119 |
5.0t | 90-220 | 1.4 | 41 | 420 | 346 | 305 | 126 |
