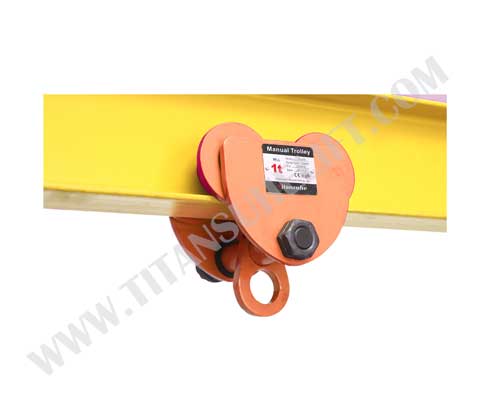

Hoist Trolley is used to attach a hoist for horizontal traveling to move loads from one location to another location. TITANSUHE's GCT/GCL610 series manual trolley is designed for economic purposes. Featured with a super compact design, this hoist trolley has a much commercial price compared with other hoist trolleys.

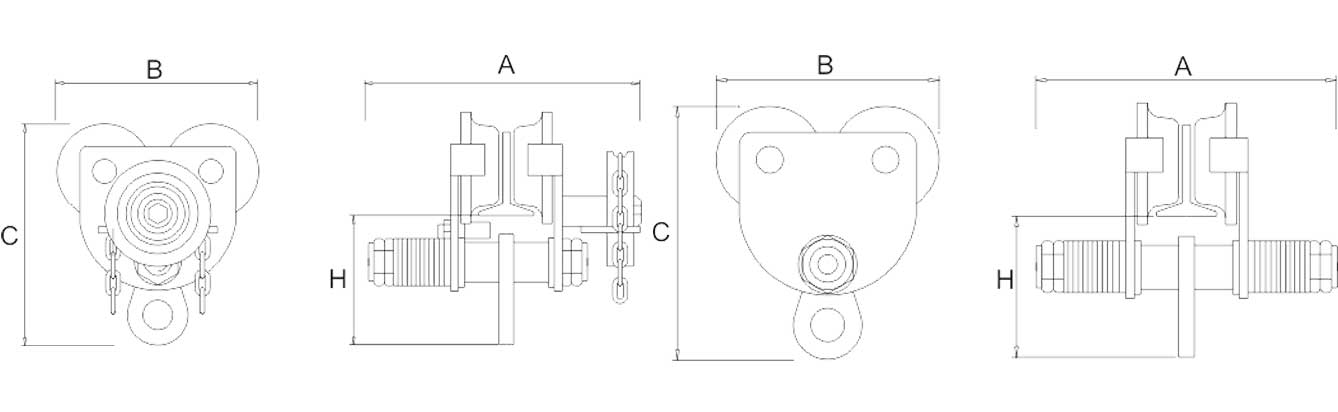

Capacity | Adjustable Flange width | Min. turning radius | N.W. (KGS) | A | B | C | H |
0.5 | 68-94 | 0.9 | 4.3 | 178 | 175 | 174 | 136 |
1.0 | 68-100 | 1.0 | 7.5 | 194 | 204 | 231 | 144 |
2.0 | 94-124 | 1.1 | 11.5 | 232 | 228 | 261 | 166 |
3.0 | 116-140 | 1.3 | 18 | 261 | 296 | 308 | 190 |
5.0 | 140-180 | 1.4 | 30.6 | 333 | 310 | 350 | 220 |
10 | 125-180 | 1.7 | 43 | 346 | 398 | 445 | 260 |
20 | 136-203 | 5.0 | 200 | 420 | 529 | 575 | 315 |
Capacity | Flange width | Min. turning radius | N.W. (KGS) | A | B | C | H |
0.5 | 68-74 | 0.9 | 8.3 | 230 | 176 | 175 | 135 |
1.0 | 68-100 | 1.0 | 11.5 | 240 | 203 | 230 | 145 |
2.0 | 94-124 | 1.1 | 15 | 275 | 228 | 260 | 165 |
3.0 | 116-140 | 1.3 | 22 | 310 | 296 | 308 | 190 |
5.0 | 140-180 | 1.4 | 35 | 370 | 310 | 350 | 220 |
10 | 125-180 | 1.7 | 49.5 | 384 | 398 | 445 | 260 |
20 | 136-203 | 5.0 | 205 | 450 | 529 | 575 | 315 |
