G2130 Heavy Duty Anchor Shackle with Safety Pin

Structured with a safety bolt, this shackle offer a double safety. The bolt, nut and safety pin prevents accidental unscrewing during lifting operation. Galvanized surface offers a long-term durability of corrosion resistance. Particularly important for use offshore and it is can be used for both one-leg and multi-leg lifting system such as chain slings or wire rope slings or textile slings. It is also called safety pin shackles or bolt type bow shackles, has same specifications as Crosby shackles and Green pin shackles. This crane rigging equipment's working load is from 0.5 ton up to 150 ton.

pho
bow shackle with safety pin

Data Sheet of G2130 Heavy Duty Anchor Shackle with Safety Pin

Nominal Size

W.L.L.

Dimension

Weight

(in)

(t)

A(in)

A(mm)

B(in)

B(mm)

C(in)

C(mm)

(kg/pc)

1/4

1/2

0.47

11.94

0.31

7.87

1.13

28.7

0.08

5/16

3/4

0.53

13.46

0.38

9.65

1.22

30.99

0.1

3/8

1

0.66

16.76

0.44

11.18

1.44

36.58

0.15

7/16

1 1/2

0.75

19.05

0.5

12.7

1.69

42.93

0.22

1/2

2

0.81

20.57

0.63

16

1.88

47.75

0.36

5/8

3 1/4

1.06

26.92

0.75

19.05

2.38

60.45

0.76

3/4

4 3/4

1.25

31.75

0.88

22.35

2.81

71.37

1.23

7/8

6 1/2

1.44

36.58

1

25.4

3.31

84.07

1.79

1

8 1/2

1.69

42.93

1.13

28.7

3.75

95.25

2.78

1 1/8

9 1/2

1.81

45.97

1.25

31.75

4.25

107.95

3.75

1 1/4

12

2.03

51.56

1.38

35.05

4.69

119.13

5.31

1 3/8

13 1/2

2.25

57.15

1.5

38.1

5.25

133.35

7.18

1 1/2

17

2.38

60.45

1.63

41.4

5.75

146.05

9.43

1 3/4

25

2.88

73.15

2

50.8

7

177.8

15.38

2

35

3.25

82.55

2.25

57.15

7.75

196.85

23.7

2 1/2

55

4.13

104.9

2.75

69.85

10.5

266.7

44.57

3

85

5

127

3.25

82.55

13

330.2

69.85

3 1/2

120

5.25

133.35

3.75

95.25

14.5

368.3

120.2

4

150

5.5

139.7

4.25

107.95

14.63

371.6

153.32



Titansuhe have wire rope components bulk wholesale at competitive prices, which improve construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.

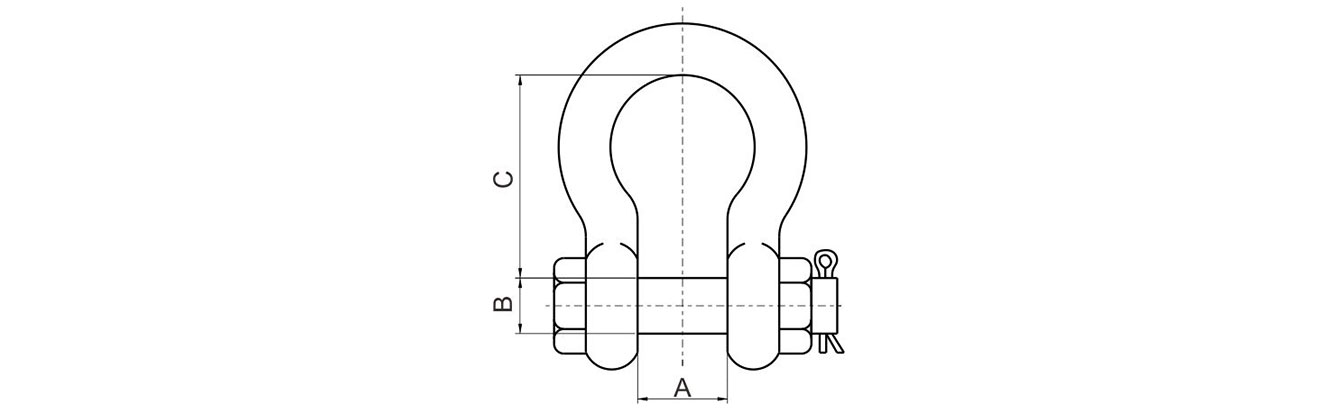

Drawing of G2130 Heavy Duty Anchor Shackle with Safety Pin

Drawing of G2130 Heavy Duty Anchor Shackle with Safety Pin
