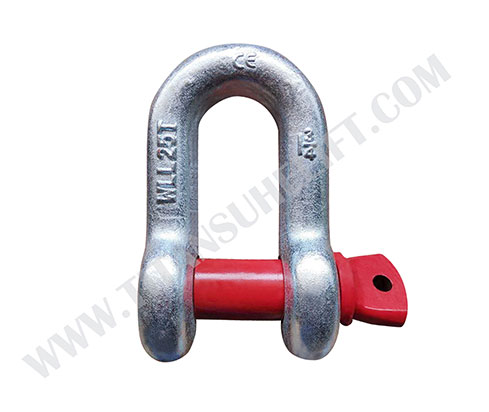

Chain Shackle, also known as Dee Shackle, is designed to use with chain for lifting purpose. Made by drop forged alloy steel with heat treatment, this shackle has extreme strength and durable wear resistance. TITANSUHE provide chain shackles with electric galvanization and hot dip galvanization that come with 4 times safety factor or 6 times safety factor.

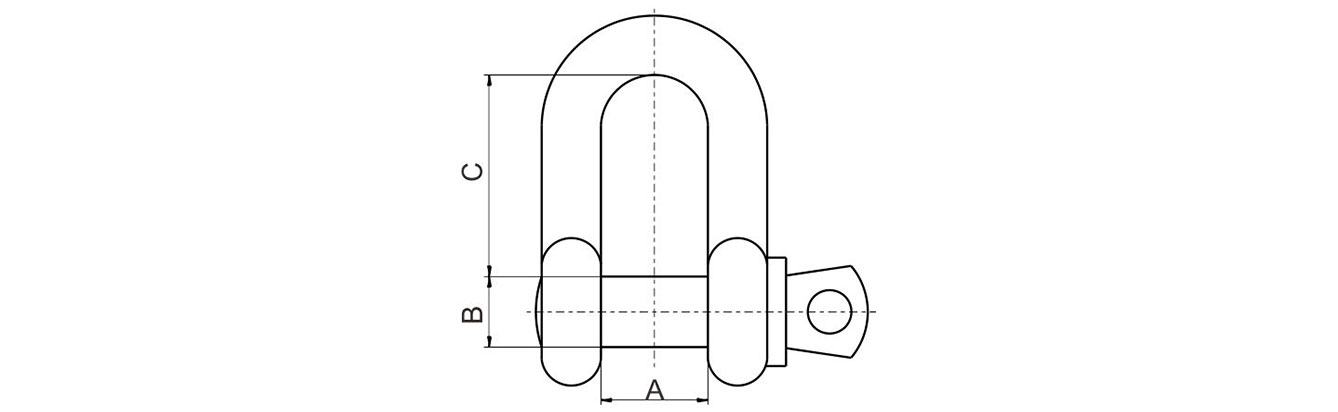

Nominal Size | W.L.L. | Dimension | Weight | |||||
(in) | (t) | A(in) | A(mm) | B(in) | B(mm) | C(in) | C(mm) | (kg/pc) |
1/4 | 1/2 | 0.47 | 11.94 | 0.31 | 7.87 | 0.97 | 24.64 | 0.05 |
5/16 | 3/4 | 0.53 | 13.46 | 0.38 | 9.65 | 1.07 | 27.18 | 0.08 |
3/8 | 1 | 0.66 | 16.76 | 0.44 | 11.18 | 1.28 | 32.51 | 0.13 |
7/16 | 1 1/2 | 0.75 | 19.05 | 0.5 | 12.7 | 1.48 | 37.59 | 0.2 |
1/2 | 2 | 0.81 | 20.57 | 0.63 | 16 | 1.66 | 42.16 | 0.27 |
5/8 | 3 1/4 | 1.06 | 26.92 | 0.75 | 19.05 | 2.04 | 51.82 | 0.57 |
3/4 | 4 3/4 | 1.25 | 31.75 | 0.88 | 22.35 | 2.4 | 60.96 | 1.19 |
7/8 | 6 1/2 | 1.44 | 36.58 | 1 | 25.4 | 2.86 | 72.64 | 1.43 |
1 | 8 1/2 | 1.69 | 42.93 | 1.13 | 28.7 | 3.24 | 82.3 | 2.15 |
1 1/8 | 9 1/2 | 1.81 | 45.97 | 1.25 | 31.75 | 3.61 | 91.69 | 3.06 |
1 1/4 | 12 | 2.03 | 51.56 | 1.38 | 35.05 | 3.97 | 100.84 | 4.11 |
1 3/8 | 13 1/2 | 2.25 | 57.15 | 1.5 | 38.1 | 4.43 | 112.52 | 5.28 |
1 1/2 | 17 | 2.38 | 60.45 | 1.63 | 41.4 | 4.84 | 122.94 | 7.23 |
1 3/4 | 25 | 2.88 | 73.15 | 2 | 50.8 | 5.78 | 146.81 | 12.13 |
2 | 35 | 3.25 | 82.55 | 2.25 | 57.15 | 6.77 | 171.96 | 19.19 |
2 1/2 | 55 | 4.13 | 104.9 | 2.75 | 69.85 | 8.07 | 204.98 | 32.27 |
3 | 85 | 5 | 127 | 3.25 | 82.55 | 8.56 | 217.42 | 42.5 |
Titansuhe have wire rope sling components bulk wholesale at competitive prices, which provide more secure, reliable, durable, and efficient lifting tools and material handling equipment.
