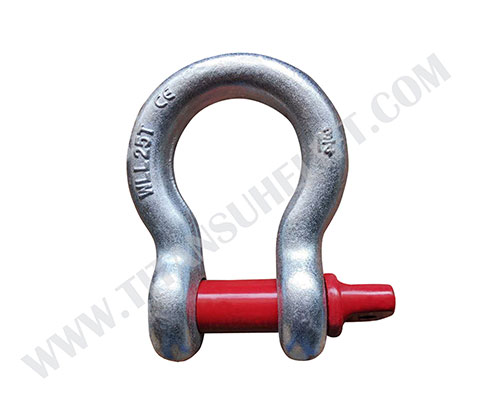

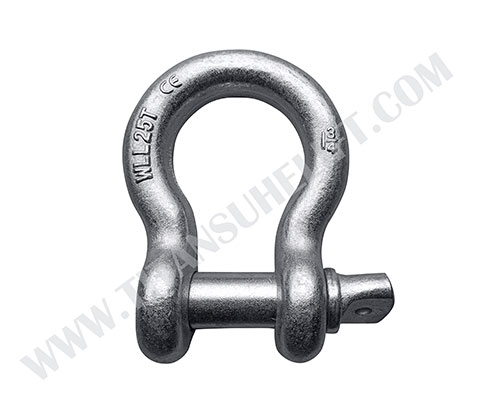

Screw pin anchor shackles are structured with "Omega" shape, it is also called screw pin bow shackle. Produced according to Crosby specification and EN standard, this shackle is used to attach on wire rope sling or polyester slings for material handling purpose. TITANSUHE's screw pin anchor shackle conforms with EN 13889, ASME B30.26 standard and meets performance requirements of Federal Specification RR-C-271F type IVA, grade A, class 2.
Nominal Size | W.L.L. | Dimension | Weight | |||||
(in) | (t) | A(in) | A(mm) | B(in) | B(mm) | C(in) | C(mm) | (kg/pc) |
3/16 | 1/3 | 0.38 | 9.65 | 0.25 | 6.35 | 0.88 | 22.35 | 0.02 |
1/4 | 1/2 | 0.47 | 11.94 | 0.31 | 7.87 | 1.13 | 28.7 | 0.05 |
5/16 | 3/4 | 0.53 | 13.46 | 0.38 | 9.65 | 1.22 | 30.99 | 0.09 |
3/8 | 1 | 0.66 | 16.76 | 0.44 | 11.18 | 1.44 | 36.58 | 0.14 |
7/16 | 1 1/2 | 0.75 | 19.05 | 0.5 | 12.7 | 1.69 | 42.93 | 0.17 |
1/2 | 2 | 0.81 | 20.57 | 0.63 | 16 | 1.88 | 47.75 | 0.29 |
5/8 | 3 1/4 | 1.06 | 26.92 | 0.75 | 19.05 | 2.38 | 60.45 | 0.63 |
3/4 | 4 3/4 | 1.25 | 31.75 | 0.88 | 22.35 | 2.81 | 71.37 | 1.02 |
7/8 | 6 1/2 | 1.44 | 36.58 | 1 | 25.4 | 3.31 | 84.07 | 1.53 |
1 | 8 1/2 | 1.69 | 42.93 | 1.13 | 28.7 | 3.75 | 95.25 | 2.41 |
1 1/8 | 9 1/2 | 1.81 | 45.97 | 1.25 | 31.75 | 4.25 | 107.95 | 3.09 |
1 1/4 | 12 | 2.03 | 51.56 | 1.38 | 35.05 | 4.69 | 119.13 | 4.31 |
1 3/8 | 13 1/2 | 2.25 | 57.15 | 1.5 | 38.1 | 5.25 | 133.35 | 6.01 |
1 1/2 | 17 | 2.38 | 60.45 | 1.63 | 41.4 | 5.75 | 146.05 | 7.8 |
1 3/4 | 25 | 2.88 | 73.15 | 2 | 50.8 | 7 | 177.8 | 13.78 |
2 | 35 | 3.25 | 82.55 | 2.25 | 57.15 | 7.75 | 196.85 | 20.41 |
2 1/2 | 55 | 4.13 | 104.9 | 2.75 | 69.85 | 10.5 | 266.7 | 38.9 |
3 | 85 | 5 | 127 | 3.25 | 82.55 | 13 | 330.2 | 72 |
Titansuhe is dedicated to providing a full range of wire rope sling parts, we offer cost-effective and reliable solutions.
