Floor Jack

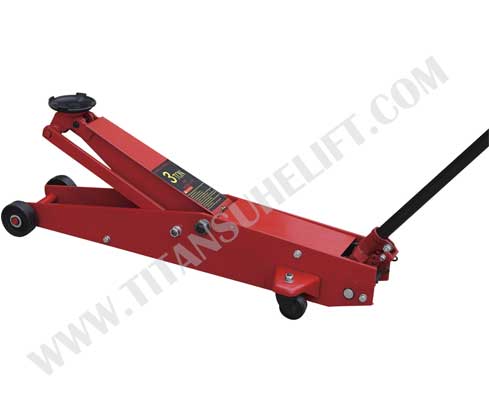

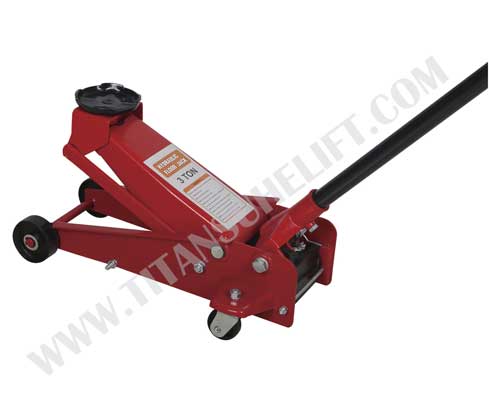

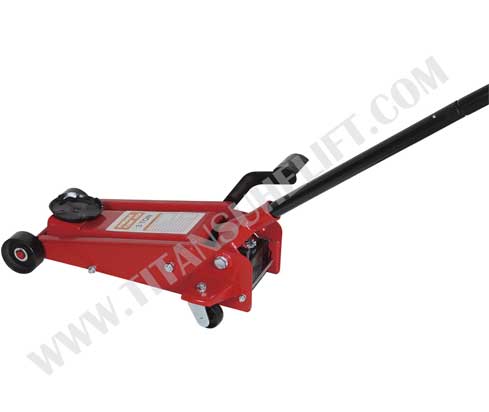

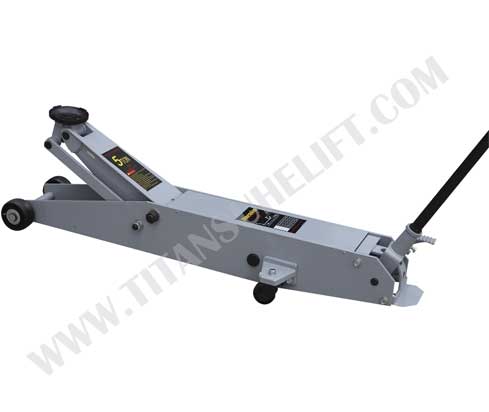

If you want to change the tire of your motor vehicle or do some repair and maintenance, you can find all the solutions from TITANSUHE. We provide a wide range of Hydraulic floor jacks ranging from everyday garage service to heavy-duty industries applications. Each of TITANSUHE's floor jacks has been factory tested and coded for traceability. We provide color box packing for cost-saving and case packs for easy carry. All of our floor jacks are built with two trolley wheels for movement and two casters for positioning. The compact design makes our floor jack looks small, but they all come with big performance.

pho
a floor jack
floorjacks
floor jack design
floor jack factory
floor jack manufacturers

Data Sheet of Floor Jack

Model

Capacity

Min.H

Raising H

Max. H.

N.W

Qty/Ctn

Meas.

20'FCL

(Ton)

(mm)

(mm)

(mm)

(kg)

(pcs)

(cm)

(pcs)

TFL4A

2

130

175

300

5.5

1

43.5x19.5x14

2520

TFL4B

2

130

175

300

6.5

1

45x22.5x14.5

2520

TFL3A

2

130

175

320

6.5

1

43.5x19.5x14

2520

TFL3B

2

130

175

320

6.5

1

45x22.5x14.5

2520

TFL2A

2

130

200

330

7.5

1

45x21x14

2300

TFL2B

2

130

200

330

7.5

1

48x23.5x15.5

1900

TFL1A

2

140

200

385

9.2

1

37.5x17.5x17.5

1600

TFL1B

2

140

200

385

9.2

1

48x23.5x15.5

1600

A for color box packing and B for Plastic Case Packing


















Model

Capacity

Min.H

Lifting H

Max. H.

N.W

Qty/Ctn

Meas.

20'FCL

(Ton)

(mm)

(mm)

(mm)

(kg)

(pcs)

(cm)

(pcs)

TFL321

3

140

360

470

22

1

62.5x37.5x19

680

TFL322

3

130

360

500

26

1

69x38.5x19

500

TFL323

3

130

360

490

28

1

68.5x38.5x20

566

TFL324

3

135

360

490

31

1

68.5x38.5x20

566

TFL325

3

135

385

500

34.5

1

71.5x37.5x19.5

570

TFL326

3

130

385

490

38

1

72.5x39x20

530
