European Type Large Bow Shackle

Name: European Type Large Bow Shackle
Brand: CHONGQING TITAN SUHE TECH CO., LTD.
Price: 25 USD
Rating: 4.5 (5 reviews)

European type bow shackle has the same body shape as Crosby G209 shackles, but it is a commercial type made of mild steel. With lower strength, this shackle is more used for general connection and light load lift.

Get A Quote

Quick View of European Type Large Bow Shackle

Size: From 5mm up to 50mm, larger sizes available upon request
Capacity: From 80kg up to 8000kg.
Material: Carbon Steel
Surface treatment: Electric galvanized.

Data Sheet of European Type Large Bow Shackle

Size	W.L.L.	Dimension(mm)					Weight
(mm)	(kg)	D(d)	a	b	c	r	(kg/pc)
5	80	11	10	19	5	8	0.019
6	100	14	13	25	6	10	0.034
8	200	18	16	32	8	12	0.07
10	320	20	19	38	10	16	0.13
12	520	26	25	51	12	19	0.26
16	800	33	32	64	16	28	0.5
20	1100	40	38	76	20	33	0.8
22	1500	50	44	89	22	37	1.3
25	2100	57	51	100	25	40	2
28	3000	68	57	115	28	47	3.1
32	3500	73	64	127	32	52	4.3
38	5000	85	76	152	38	63	7
44	7000	96	90	180	45	75	12.5
50	8000	108	102	200	50	78	17.5

Titansuhe wire rope sling components will be your ideal solution for construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.

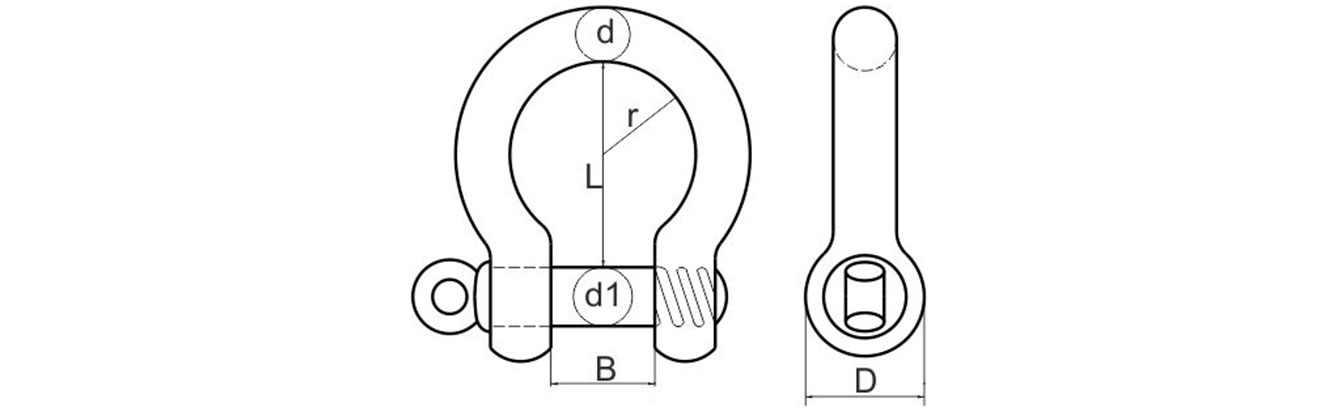

Drawing of European Type Large Bow Shackle
