End Shackles

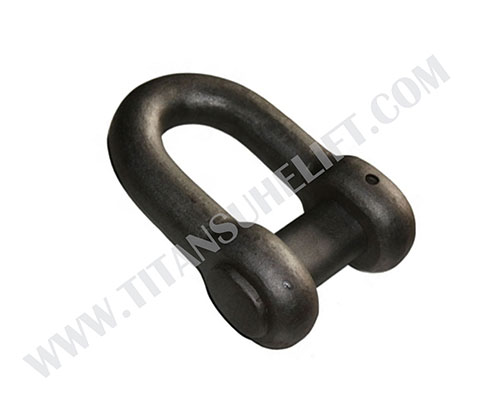

End Shackle is used to connect the swivel ring set to the anchor shackle or to connect the crown shackle of the anchor to the swivel forerunner of the chain. It is constructed with an oval pin. The available dia. Is starting from 14mm up to 117mm and grade to U2 and U3.

Data Sheet of End Shackles

Nominal Dia. mm	GRADE
	AM1 (KN）		AM2 （KN)		AM3 (KN)		Weight（kg)
	BL	PL	BL	PL	BL	PL	Weight（kg)
11	52	36	72	52	102	72	1.18
12.5	66	46	92	66	132	92	1.34
14	82	58	116	82	165	116	1.5
16	107	76	150	107	216	150	1.52
17.5	127	89	179	127	256	179	2.05
19	150	105	211	150	301	211	2.41
20.5	175	123	244	175	349	244	3.25
22	200	140	280	200	401	280	3.95
24	237	167	332	237	476	332	5.12
26	278	194	389	278	556	389	6.7
28	321	225	449	321	642	449	8.1
30	368	257	514	368	735	514	10
32	417	291	583	417	833	583	11.77
34	468	328	655	468	937	655	14.2
36	523	366	732	523	1050	732	16.55
38	581	406	812	581	1160	812	19.55
40	640	448	895	640	1280	895	22.8
42	703	492	981	703	1400	981	26
44	769	538	1080	769	1540	1080	29.71
46	837	585	1170	837	1680	1170	34.3
48	908	635	1270	908	1810	1270	38
50	981	686	1370	981	1960	1370	45.2
52	1060	739	1480	1060	2110	1480	50.9
54	1140	794	1590	1140	2270	1590	53.8
56	1220	851	1710	1220	2430	1710	63
58	1290	909	1810	1290	2600	1810	70
60	1380	969	1940	1380	2770	1940	77.5
62	1470	1030	2060	1470	2940	2060	86.3
64	1560	1100	2190	1560	3130	2190	96.3
66	1660	1160	2310	1660	3300	2310	99.6
68	1750	1230	1450	1750	3500	2450	102.6
70	1840	1290	2580	1840	3690	2580	126.2
73	1990	1390	2790	1990	3990	2790	138.2
76	2150	1500	3010	2150	4300	3010	146
78	2260	1580	3160	2260	4500	3160	164
81	2410	1690	3380	2410	4820	3380	190
84	2580	1800	3610	2580	5160	3610	212
87	2750	1920	3850	2750	5500	3850	237
90	2920	2050	4090	2920	5840	4090	245
92	3040	2130	4260	3040	6080	4260	257
95	3230	2260	4510	3230	6440	4510	300
97	3340	2340	4680	3340	6690	4680	335
100	3530	2470	4940	3530	7060	4940	353
102	3660	2560	5120	3660	7320	5120	378
105	3850	2700	5390	3850	7700	5390	385
107	3980	2790	5570	3980	7960	5570	420
111	4250	2970	5940	4250	8480	5940	463
114	4440	3110	6230	4440	8890	6230	485
117	4650	3260	6510	4650	9300	6510	528
120	4850	3400	6810	4850	9720	6810	570
122	5000	3500	7000	5000	9990	7000	602
124	5140	3600	7200	5140	10280	7200	632
127	5350	3750	7490	5350	10710	7490	679
130	5570	3900	7800	5570	11140	7800	729
132	5720	4000	8000	5720	11420	8000	762
137	6080	4260	8510	6080	12160	8510	852
142	6450	4520	9030	6450	12910	9030	949
147	6840	4790	9560	6840	13660	9560	1053
152	7220	5050	10100	7220	14430	10100	1164
157	7600	5320	10640	7600	15200	10640	1283
162	7990	5590	11180	7990	15980	11180	1410

Titansuhe anchor boat parts for sale will be your ideal solution for construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.

End Shackles

Data Sheet of End Shackles

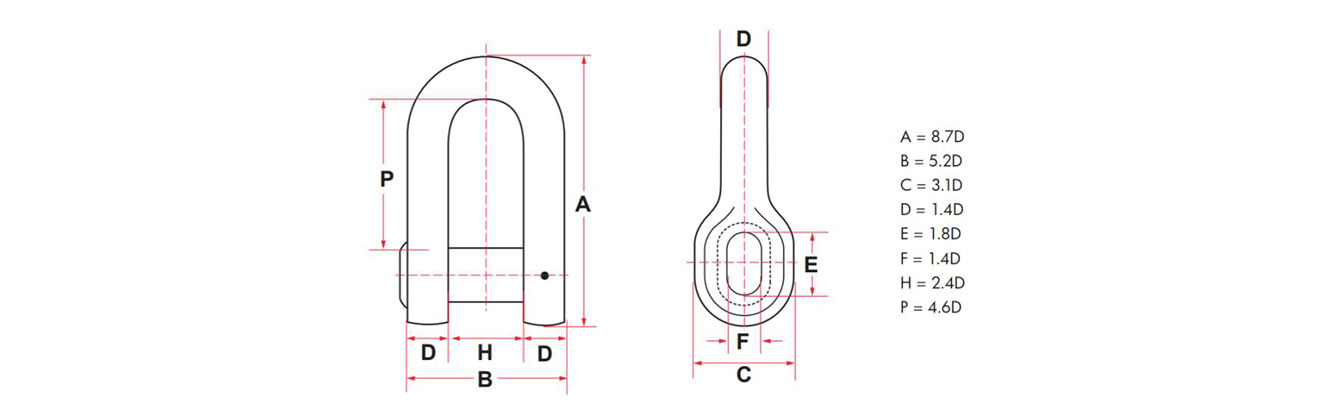

Drawing of End Shackles
