Elevator traction steel belt is an optimized option for traction elevators.The new traction steel belt can effectively solve the defects of the existing steel wire rope. We have provided the traction steel belt for domestic elevator spare parts suppliers market for nearly 5 years, a professional elevator traction media solution supplier.

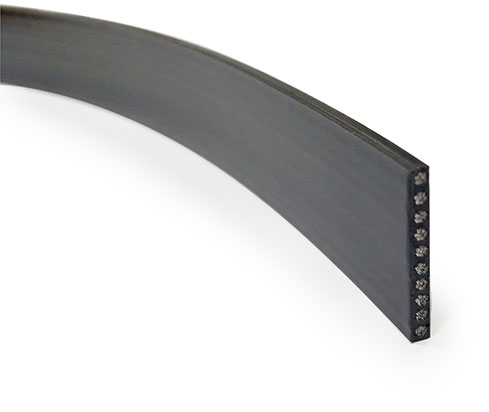

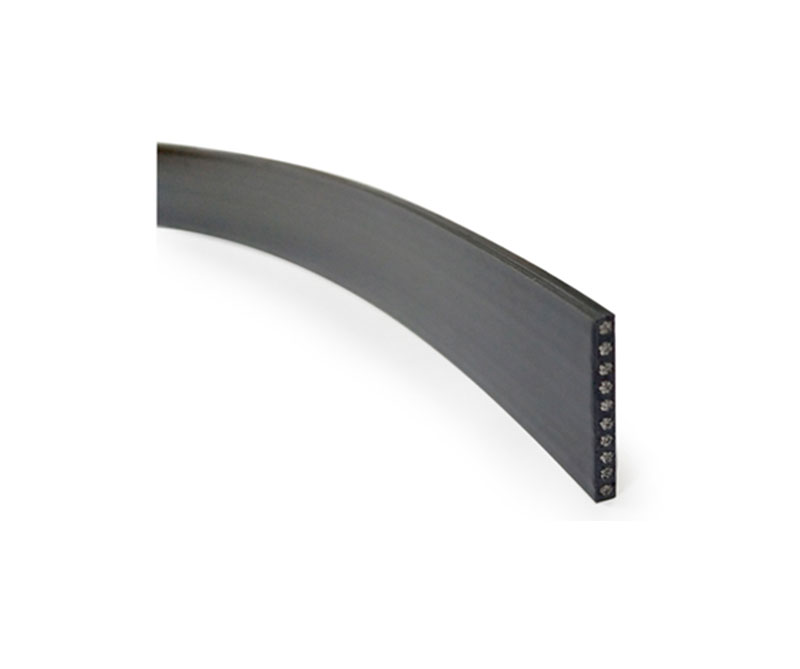

The flexible polyurethane-coated steel belt is 3 mm thickness. Compared with the traditional wire rope, it is a revolutionary traction medium. which is stronger than conventional steel wire rope. And the belt core is made up of high strength steel wire ropes. It help the strength evenly distributed and flexibly bended . The polyurethane coated traction steel belt can lasts up to three times longer than steel cables. Due to its smooth surfaces, and minimal moving parts in the gearless machine dramatically reduce wear and increase durability and efficiency.
Space saving
Traction steel belt has high flexibility and traction, compared with the traditional wire rope drive, it can drive smaller pulleys. It saves space and made the transmission device much more compact.
Energy saving
The steel belt has small inertia, which performs high transmission efficiency during work. This property attribute to energy saving and environmental protection.
Run smoothly and stably
Each composite steel belt withstand a tensile force of 3200 kg/6400 kg, and each elevator has at least 3 composite steel belts. The safety factor is greater than 12, which making the operation more smoothly and stable.
Easy maintenance
the glossy surface reduce friction, noise and cab vibration, not easy to break and rust. This flat traction steel belt need no lubrication oil, which cost low maintenance.
Physical properties
- silicon free
- resistant to gasoline and benzene
- hydrolysis resistance
- UV and ozone resistance
- can bond with thermoplastic
- applicable temperature range is -50°C to 80°C
This product is applicable for OTIS machine roomless steel belt elevator. All belts are OTIS standard products and we support customization.
Polyurethane coated

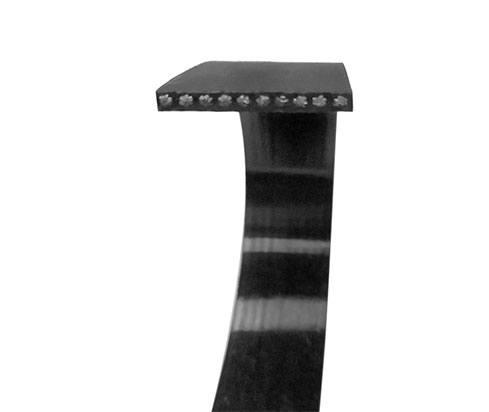

High strength steel wire ropes Glossy surface
Specification/Parts number | Width (mm) | Thickness (mm) | Number of wire core | Pull(KN) | Appearance |
AAA717X1 | 30 | 3 | 12 | 32 | glossy surfaces |
AAA717W1 | 30 | 3 | 12 | 32 | one side with 'V' lines |
AAA717AM2 | 30 | 3.2 | 10 | 43 | glossy surfaces |
AAA717AP2 | 30 | 3.2 | 10 | 43 | glossy surfaces |
AAA717AJ2 | 30 | 3.2 | 10 | 43 | glossy surfaces |
AAA717AD1 | 60 | 3 | 24 | 64 | glossy surfaces |

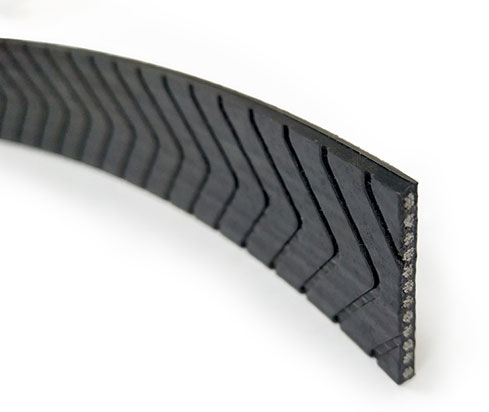

AAA717R1 | 60 | 3 | 24 | 64 | one side with 'W' lines |
AAA717AJ1 | 25 | 3.2 | 9 | 32 | glossy surfaces |
