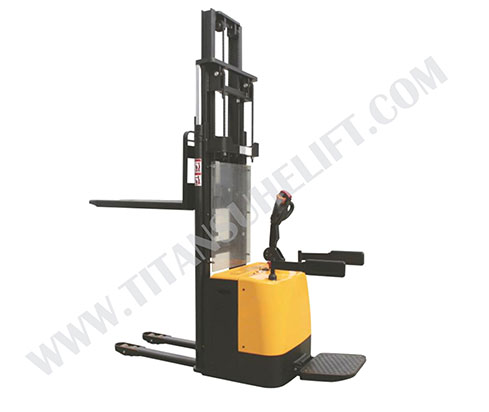

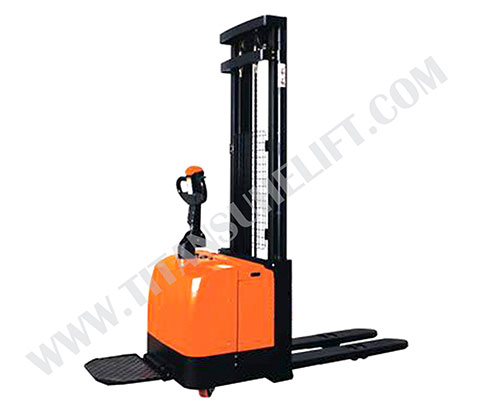

Features with AC Drive motor, no carbon brushes and free maintenance, TITANSUHE's electric stacker is ideal solutions for pallet quick handling. We have full electric reach stacker, counter balance stacker and full electric stackers.

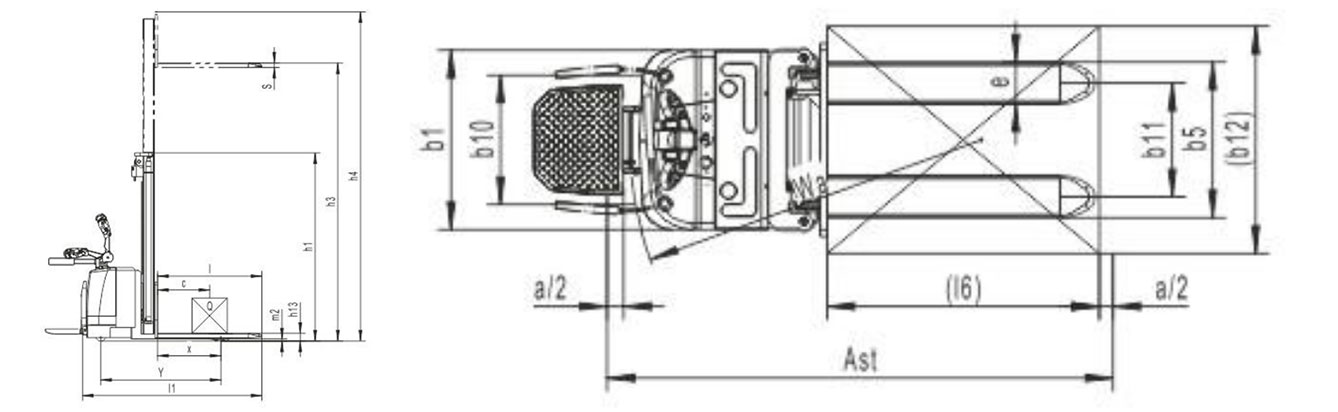

Drive | Electric | |
Load Capacity | Q (kg) | 1500/2000 |
Load Center | C(mm) | 600 |
Wheelbase | Y(mm) | 1330 |
Weight with Battery | kg | 1050/1220/1185/1350 |
Wheel | PU | |
Front Wheel Size | mm | Ø250x75 |
Rear Wheel Size | mm | Ø80x70 |
Additional Wheel Size | mm | Ø115x50 |
Rear Wheel Distance | b11(mm) | 410/525 |
Lowered Mast Height | h1(mm) | 2085/1765/2015/2165/2330/2000/2170/2340 |
Max. Lifting Height | h3(mm) | 1600/2500/3000/3300/3500/4500/5000/5500 |
Extended Mast Height | h4(mm) | 2085/3050/3550/3850/3950/5050/5550/6050 |
Lowered Fork Height | h15(mm) | 90-95 |
Overall Length | h(mm) | 2050 |
Overall Width | b1(mm) | 790/1100 |
Fork Dimensions | s/e/l(mm) | 60/160/1150 |
Width over Forks | b5(mm) | 570/685 |
Ground Clearance | m2(mm) | 30 |
Aisle Width with pallet 1000x2000 crosswise | Ast(mm) | 2455 |
Aisle Width with pallet 800x1200 lengthwise | Ast(mm) | 2430 |
Turning Radius | Wa(mm) | 1600 |
Max. Gradient Performance load/unload | % | 8/10 |
Drive Motor Power | kW | 1.2/1.5 |
Lifting Motor Power | kW | 2.2/3 |
Battery Voltage/Nominal Capacity | V/Ah | 24/210/270 option |
Steering Wheel | Electric |
