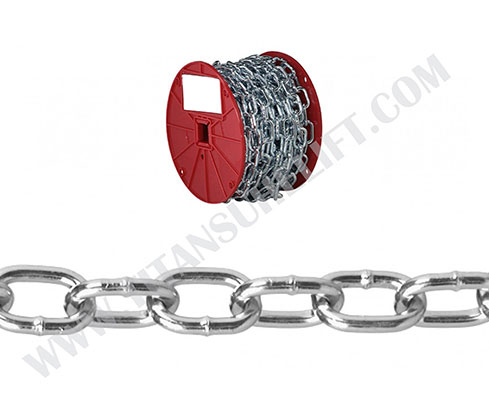

DIN 764 medium chain is manufactured according to DIN standard, it is a welded long chain. It is suitable for all general uses such as engineering, industrial, agricultural and Marine applications, ideal for agricultural use and anchoring chains.
We have sizes ranging from 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10m up to 32mm.
Size(d) | Inside Length(t) | Inside Width(b1) | Outside Width(b2) | Approx. Weight | ||
mm | ±mm | mm | ±mm | mm | mm | kg/m |
4 | 0.2 | 16 | 0.3 | 5 | 14 | 0.313 |
0.2 | ||||||
5 | 0.2 | 18 | 0.4 | 7 | 18.2 | 0.514 |
0.2 | ||||||
6 | 0.2 | 21 | 0.5 | 8 | 21.5 | 0.74 |
0.2 | ||||||
8 | 0.2 | 28 | 0.5 | 11 | 29 | 1.315 |
0.3 | ||||||
10 | 0.3 | 35 | 0.6 | 14 | 36 | 2 |
0.3 | ||||||
12 | 0.3 | 42 | 0.6 | 16 | 41 | 2.98 |
0.3 | ||||||
13 | 0.4 | 45 | 0.7 | 18 | 47 | 3.5 |
0.4 | ||||||
14 | 0.45 | 49 | 0.75 | 20 | 48 | 4.06 |
0.45 | ||||||
16 | 0.5 | 56 | 0.9 | 22 | 58 | 5.2 |
0.5 | ||||||
18 | 0.8 | 63 | 1 | 24 | 65 | 6.5 |
0.5 | ||||||
20 | 1 | 70 | 1.1 | 27 | 72 | 8.2 |
0.6 | ||||||
23 | 1.2 | 80 | 1.3 | 31 | 83 | 11 |
0.7 | ||||||
26 | 1.3 | 91 | 1.5 | 35 | 94 | 14 |
0.8 | ||||||
28 | 1.4 | 98 | 1.6 | 36 | 101 | 16.5 |
0.9 | ||||||
30 | 1.5 | 105 | 1.7 | 39 | 108 | 19 |
0.9 | ||||||
33 | 1.7 | 115 | 1.9 | 43 | 119 | 22.5 |
1 | ||||||
