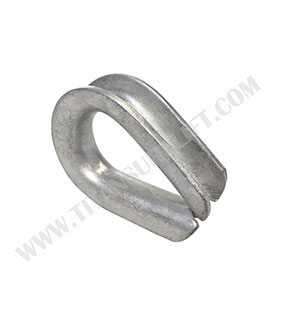

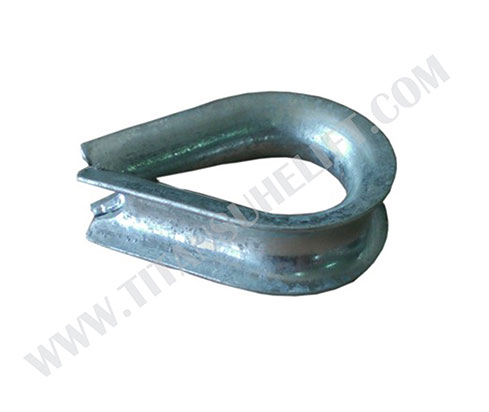

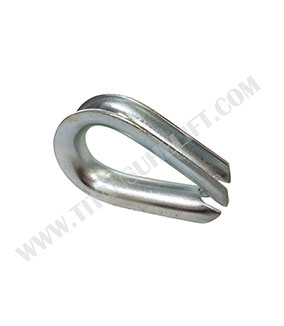

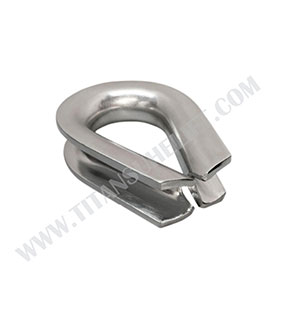

Same as 6899A, 6899B is a DIN specification wire rope thimble, working as wire rope end fittings to make hard eye of wire rope slings.

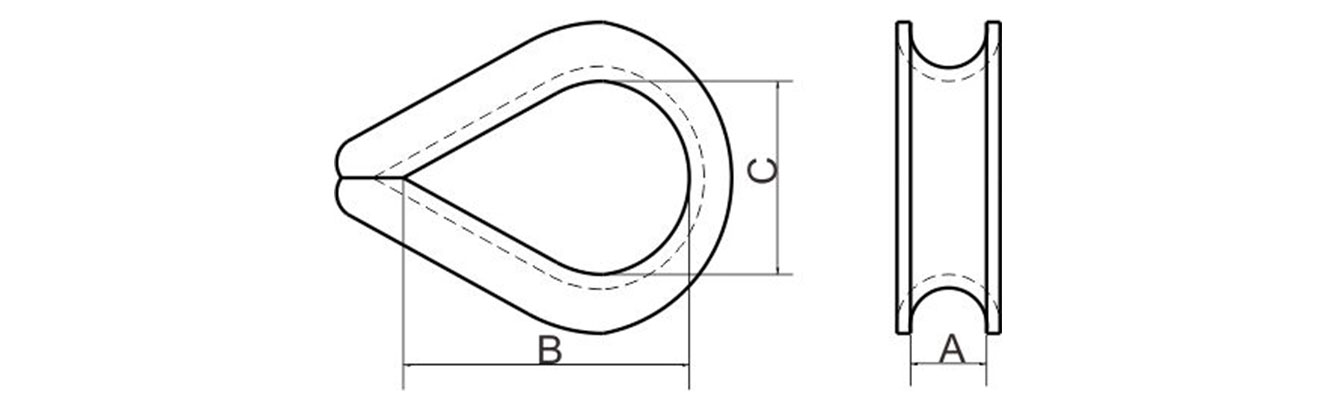

Size | Dimension(mm) | Weight | ||
(mm) | A | B | C | (kg/pc) |
2.5 | 3 | 19 | 12 | 0.005 |
3.5 | 4 | 21 | 13 | 0.008 |
4 | 5 | 23 | 14 | 0.01 |
5 | 6 | 25 | 16 | 0.016 |
6 | 7 | 28 | 18 | 0.019 |
7 | 8 | 32 | 20 | 0.03 |
9 | 10 | 38 | 24 | 0.047 |
11 | 12 | 45 | 28 | 0.068 |
13 | 13 | 48 | 30 | 0.08 |
14 | 14 | 51 | 32 | 0.1 |
15 | 16 | 58 | 36 | 0.145 |
16 | 17 | 61 | 38 | 0.18 |
17 | 18 | 64 | 40 | 0.2 |
18 | 20 | 72 | 45 | 0.29 |
20 | 22 | 80 | 50 | 0.32 |
22 | 24 | 90 | 56 | 0.47 |
24 | 26 | 99 | 62 | 0.59 |
26 | 28 | 112 | 70 | 0.8 |
28 | 30 | 120 | 75 | 1.1 |
30 | 32 | 128 | 80 | 1.23 |
32 | 34 | 152 | 92 | 1.56 |
34 | 36 | 160 | 100 | 1.76 |
36 | 38 | 176 | 110 | 1.92 |
38 | 40 | 184 | 115 | 2.92 |
40 | 42 | 192 | 120 | 3.2 |
Titansuhe wire rope sling components will be your ideal solution for construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
