DIN5685A Mild Steel Short Link Chain

Titansuhe produces various standard chains, such as G80, G43, G70, EN standard, and DIN standard chains. DIN5685 is the German standard chain. It is often used in marine, industrial and other applications.

The surface of the mild steel short-chain usually gets polished. Overload use is not allowed during operation. Meanwhile, these mild steel chains are not for hoisting purposes, any lifting actions are not allowed.

We provide customers with quick responses within 24 hours, demand satisfaction, strict quality control, detailed test report, and chemical composition analysis.

pho

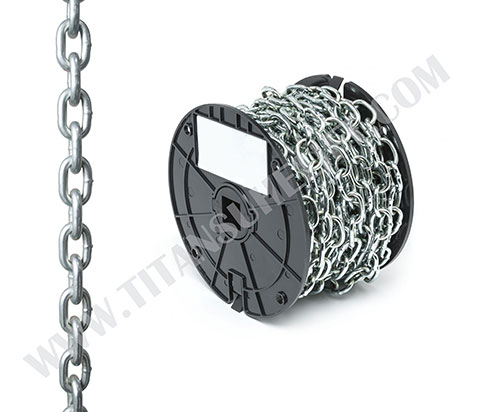

DIN5685A

Data Sheet of DIN5685A Mild Steel Short Link Chain

Size

Outside Width

Inside Length

Approx.Weight

(d)mm

(b)mm

(t)mm

Kg/m

2

8

12

0.07

2.5

10

14

0.11

3

12

16

0.165

3.5

14

18

0.225

4

16

19

0.3

4.5

18

20

0.395

5

20

21

0.5

5.5

22

23

0.605

6

24

24

0.73

6.5

26

26

0.86

7

28

28

1

8

32

32

1.3

9

36

36

1.65

10

40

40

2.05

11

44

44

2.5

12

48

48

2.9

13

52

52

3.45
