How to assembly the connecting link when make chain rigging?

How to assembly the connecting link when make chain rigging?

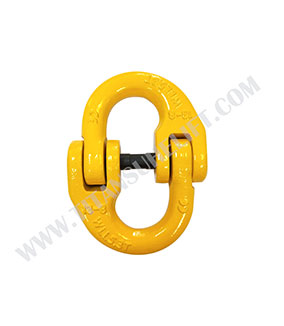

Following steps below to assemble the connecting link:

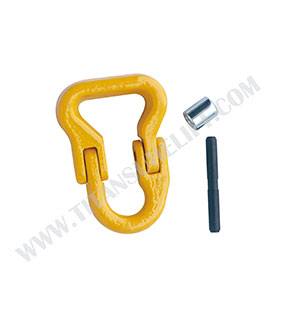

Step 1: Take a new piece of connecting link. Visual check and be sure it’s in good condition for service. Take off the pin to separate the link as two parts.

Step 2: Put the chain link in one half link and the chain hooks or rings or other end fittings into the other half link, then cross the clevis head.

Step 3: Put the sleeve in the middle and insert the pin through the holes on clevis end and the pin sleeve.

Step 4: Drive the pin end with a soft hammer until the pin end is flush with the outside of the connecting link to get the pin locked tight.
