Chain Hooks

TITANSUHE has a huge range of chain hooks for Rigging and Tie Down. All our chain hooks are made of alloy steel with heat treatment for high strength and abrasion resistance that grade to 80 and 100, rated for overhead lifting applications. We also have grade 43 and Grade 70 chain hooks to help you build your lashing and tie down system. For different rigging purpose, we have sling hooks, grab hooks, self-locking hooks, foundry hooks, container hooks, lifting chain components etc for your choice. These hooks can come with eye type, clevis type or swivel type. Eye type chain hooks are designed for permanent attachment which have higher safety. Clevis type chain hooks are structured with a sturdy pin which can passes directly through the end link of chain. This greatly improve the assembly efficiency and save your rigging cost. Swivel hooks can rotate 360 degrees which provide easy access and attachment to the loads. You can find below chain hooks from us.

Types of Chain Hooks

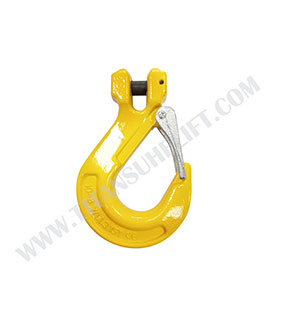

Grade 8 Clevis Sling Hook

Grade 8 Clevis Sling Hook

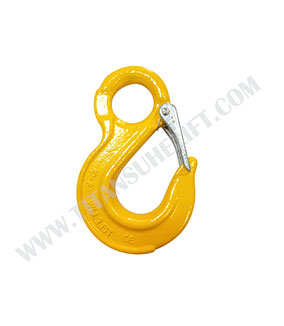

Grade 8 Eye Sling Hook

Grade 8 Eye Sling Hook

Grade 8 Eye Self Locking Hooks

Grade 8 Eye Self Locking Hooks

Grade 8 Clevis Self Locking Hooks

Grade 8 Clevis Self Locking Hooks

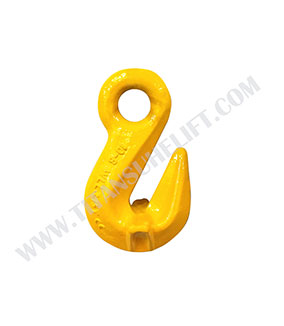

Grade 8 Eye Shortening Grab Hook

Grade 8 Eye Shortening Grab Hook

Grade 8 Clevis Shortenting Grab Hook

Grade 8 Clevis Shortenting Grab Hook

320 Eye Hook with Latch

320 Eye Hook with Latch

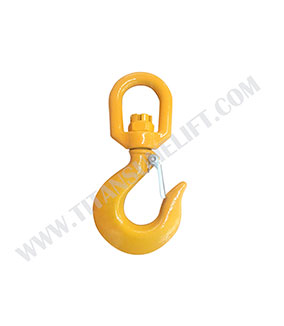

322 Swivel Hook With Latch

322 Swivel Hook With Latch

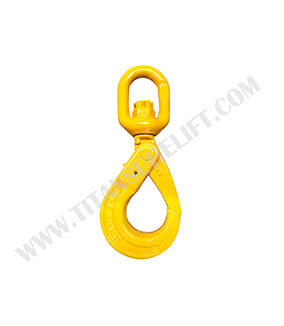

Grade 8 European Swivel Self-Locking Hook

Grade 8 European Swivel Self-Locking Hook

Grade 8 Swivel Hook with Safety Latch

Grade 8 Swivel Hook with Safety Latch

Grade 8 Eye Hook with Latch

Grade 8 Eye Hook with Latch

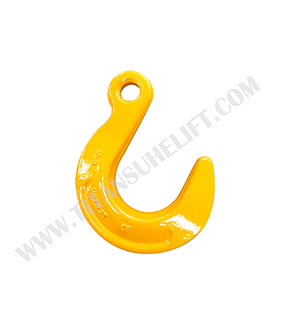

Grade 80 Eye Foundry Hook

Grade 80 Eye Foundry Hook

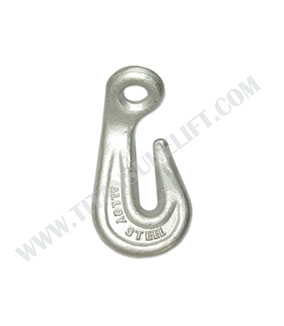

Alloy Steel Eye Bend Hook

Alloy Steel Eye Bend Hook

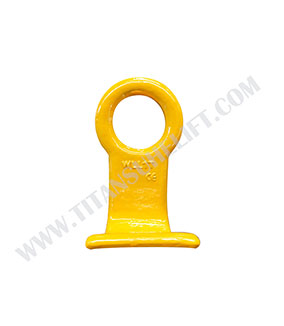

Grade 8 Barrel Hook

Grade 8 Barrel Hook

Grade 8 Clevis Belt Hook

Grade 8 Clevis Belt Hook

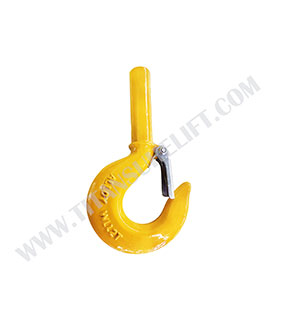

319 Shank Hook wiht Latch TCSH297

319 Shank Hook wiht Latch TCSH297

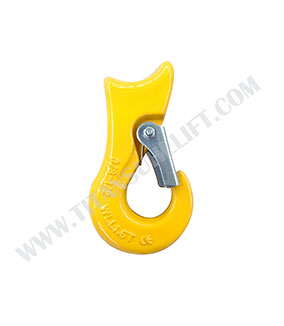

Grade 80 Sliding Choker Hook

Grade 80 Sliding Choker Hook

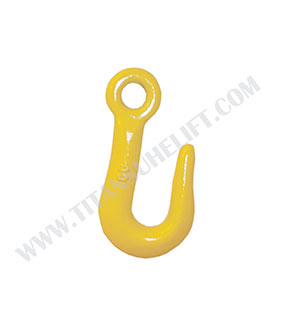

Sorting Hooks for Industry and Agriculture Purpose

Sorting Hooks for Industry and Agriculture Purpose

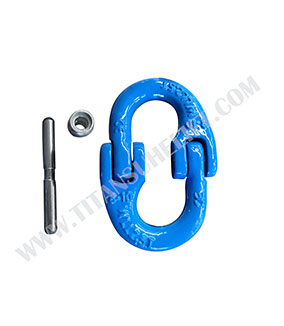

Grade 10 EuropeanType Connecting Link TCSH1001

Grade 10 EuropeanType Connecting Link TCSH1001

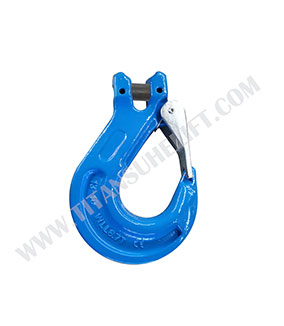

Grade 10 Sling Hooks With Latch

Grade 10 Sling Hooks With Latch

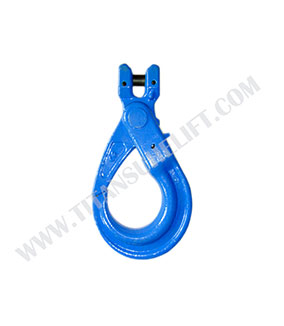

Grade 10 Self-Locking Safety Hooks

Grade 10 Self-Locking Safety Hooks

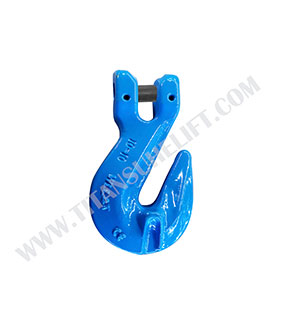

Grade 100 Chain Shortening Grab Hooks

Grade 100 Chain Shortening Grab Hooks

In Which Occasions, The Chain Hook Should Be Scrapped?

The hook shall be scrapped under any of the following conditions:

① Cracks by visual check;

② The wear of dangerous section reaches 10% of the original size;

③ Hook opening is 15% more than the original size;

④ The torsional deformation of hook body exceeds 10 °;

⑤ Plastic deformation of the dangerous section of the hook or the neck of the hook;

⑥ The hook thread is corroded;

⑦ Replace the bushing when the wear of the hook bushing reaches 50% of the original size;

⑧ When the wear of the disc hook mandrel reaches 5% of the original size, the mandrel shall be replaced.

Still not find the chain hooks you want, you can contact Titansuhe lifting equipment factory for more custom solutions.

Dangerous Section of The Chain Hook

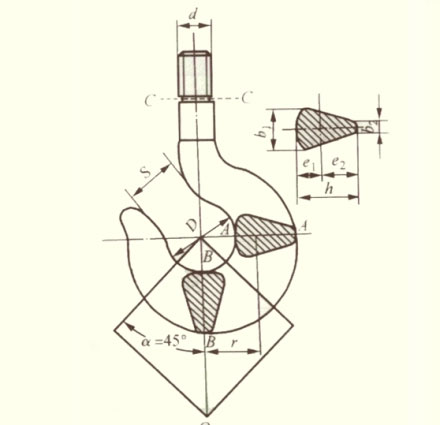

All the chain hooks have three dangerous sections, which should be paid special attention during inspection. As shown in the below schematic diagram, the three dangerous sections of the chain hook are:

Dangerous Section of The Chain Hook

(1) On the one hand, section A-A is affected by the tension of the sling, and the hook tends to be straightened; On the other hand, it is also affected by bending moment. Because the bending moment acting on this section is the largest and the bending stress is the largest, this section is a dangerous section.

(2) Section B-B is the same as section A-A. section B-B tends to be straightened and cut under the action of sling tension. The shear stress here is the largest, so it is also a dangerous section.

Schematic diagram of dangerous section

Schematic diagram of dangerous section [1]

(3) C-C section, which is the thinnest part of the hook column, tends to be pulled off under the tension of the sling. The tensile stress here is the largest, so it is also a dangerous section.

Chain Hook Safe Use Tips

Chain Hook Safe Use Tips

The chain hook should be manufactured by a professional factory according to the technical conditions and Safety specifications of EN1677 or equivalence, and all the chain hooks should be tested and supplied with quality certificate. Otherwise it is not allowed to be used.
The new hook shall be subject to load test, and the opening of the measured hook mouth shall not exceed 0.25% of the original opening.
During use, the hook shall be checked frequently for cracks, serious deformation, corrosion and wear
The hook shall be tested once a year. During the test, conduct a 10min static test at 125% of the rated working load, and check with a MPI or other methods. There shall be no cracks, cracks and residual deformation.
The three dangerous sections shall be cleaned with kerosene and checked for cracks with a magnifying glass. Check the wear of bushing and pin for plate hook.
Defects on the hook shall not be repaired by welding

Chain Hook Safe Use Tips
