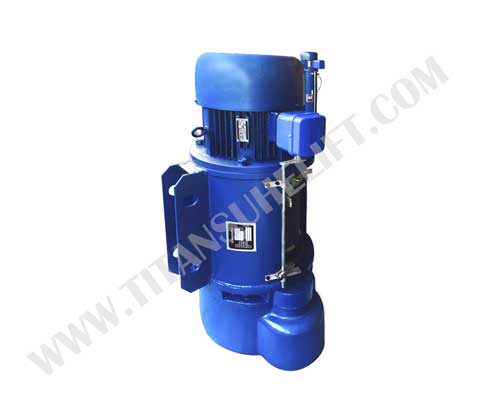

CD1 Electric Wire Rope Hoist
Designed for safety, reliability, and competition, TITANSUHE's CD1 electric wire rope hoists are widely used for general applications such as bridge cranes, gantry cranes, girder cranes, and jib cranes, or monorails.
Quick View of CD1 Electric Wire Rope Hoist
Model No.: CD1 single speed, MD1 Dual Speed
Capacity: 500kg up to32000kg
Standard Lift: 6m up to 30m, longer rope length available upon request
Lifting Speed: Single and Dual speed
Power supply: 3 Phase, 380v, 50hz
Color: Blue painting, other colors are available by request.
Packing: Wooden Box
Features and Advantages of CD1 Electric Wire Rope Hoist
Heavy-duty Application-For fabricating, die handling, paper mill, steel plant, and so on.
Competitive Price-The cheapest electric wire rope hoist you can find for heavy-duty crane lifting.
High Strength Forged Hook-360-degree swivel bottom hook, make the material handling easy.
The best solution for a Crane System-For extreme high lifting height, use a bridge crane, gantry crane, jib crane, or girder crane.
Premium Steel Wire Rope-With super fatigue and wear resistance.
Reliable Conical Rotor Brake-Fan cooled to get long service life.
Spring Tensioned Rope Guide-Keeps the steel wire rope securely in the drum grooves.
Wide Range Application-Can be sued in factories, mines, harbors, warehouses, cargo storage areas, and shops.
