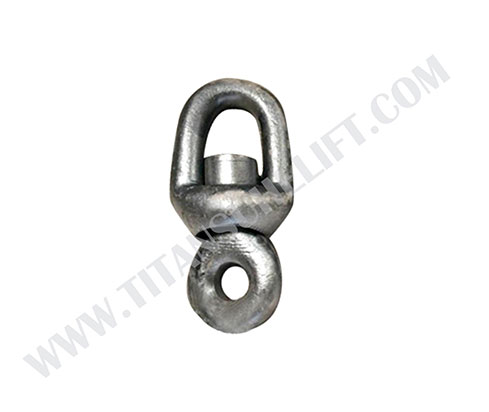

Anchor Swivel

The swivel is used to secure the anchor to the chain to prevent the chain from twisting when the ship is moving at the berth. The swivel ring also helps access the bow rollers in the correct direction when the anchor is retracted.

When should swivel anchors be replaced?

The exact time of each component cannot be determined, but commonly used anchor lines are usually replaced every 3 to 5 years. Chains generally last longer than anchor swivels, but it's best to check annually. Make sure the anchor swivel is still properly seated.

Data Sheet of Anchor Swivel

Nominal Size mm	GRADE
	AM1 (KN）		AM2 （KN)		AM3 (KN)		Weight（kg)
	BL	PL	BL	PL	BL	PL	Weight（kg)
11	52	36	72	52	102	72	0.83
12.5	66	46	92	66	132	92	0.94
14	82	58	116	82	165	116	1.05
16	107	76	150	107	216	150	1.34
17.5	127	89	179	127	256	179	1.73
19	150	105	211	150	301	211	2.17
20.5	175	123	244	175	349	244	2.2
22	200	140	280	200	401	280	3.5
24	237	167	332	237	476	332	4.53
26	278	194	389	278	556	389	5.79
28	321	225	449	321	642	449	7.25
30	368	257	514	368	735	514	9
32	417	291	583	417	833	583	10.03
34	468	328	655	468	937	655	12.75
36	523	366	732	523	1050	732	14.96
38	581	406	812	581	1160	812	17.44
40	640	448	895	640	1280	895	20.25
42	703	492	981	703	1400	981	25.4
44	769	538	1080	769	1540	1080	26.6
46	837	585	1170	837	1680	1170	30.67
48	908	635	1270	908	1810	1270	35
50	981	686	1370	981	1960	1370	40.5
52	1060	739	1480	1060	2110	1480	49.5
54	1140	794	1590	1140	2270	1590	50.5
56	1220	851	1710	1220	2430	1710	55
58	1290	909	1810	1290	2600	1810	64.6
60	1380	969	1940	1380	2770	1940	71.3
62	1470	1030	2060	1470	2940	2060	77.7
64	1560	1100	2190	1560	3130	2190	83.3
66	1660	1160	2310	1660	3300	2310	88.7
68	1750	1230	1450	1750	3500	2450	100
70	1840	1290	2580	1840	3690	2580	107.8
73	1990	1390	2790	1990	3990	2790	125.6
76	2150	1500	3010	2150	4300	3010	143.8
78	2260	1580	3160	2260	4500	3160	154
81	2410	1690	3380	2410	4820	3380	188
84	2580	1800	3610	2580	5160	3610	198
87	2750	1920	3850	2750	5500	3850	215
90	2920	2050	4090	2920	5840	4090	238
92	3040	2130	4260	3040	6080	4260	252
95	3230	2260	4510	3230	6440	4510	269
97	3340	2340	4680	3340	6690	4680	301
100	3530	2470	4940	3530	7060	4940	330
102	3660	2560	5120	3660	7320	5120	344
105	3850	2700	5390	3850	7700	5390	387
107	3980	2790	5570	3980	7960	5570	428
111	4250	2970	5940	4250	8480	5940	448
114	4440	3110	6230	4440	8890	6230	460
117	4650	3260	6510	4650	9300	6510	475
120	4850	3400	6810	4850	9720	6810	547
122	5000	3500	7000	5000	9990	7000	649
124	5140	3600	7200	5140	10280	7200	680
127	5350	3750	7490	5350	10710	7490	729
130	5570	3900	7800	5570	11140	7800	784
132	5720	4000	8000	5720	11420	8000	820
137	6080	4260	8510	6080	12160	8510	812
142	6450	4520	9030	6450	12910	9030	1012
147	6840	4790	9560	6840	13660	9560	1124
152	7220	5050	10100	7220	14430	10100	1238
157	7600	5320	10640	7600	15200	10640	1360
162	7990	5590	11180	7990	15980	11180	1490

For one-stop system service with boat anchor parts, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.
