8 Strands Elevator Wire Rope 8x19S

Unlike regular wire ropes for other application, elevator wire ropes require much small dimensional tolerance, high quality material and lubrication during stranding to meet its tough safety requirements.

8 strand steel wire ropes are one of the most used wire rope for elevator. Fiber core constructed 8 strands wire ropes have good bend fatigue contributed by the small wires, good elongation and better contact on drum and sheaves. Steel core constructed 8 strands wire ropes have the advantages of very good bend fatigue, super elongation, better crush resistance and better contact on drum and sheaves.

Data Sheet of 8 Strands Elevator Wire Rope 8x19S

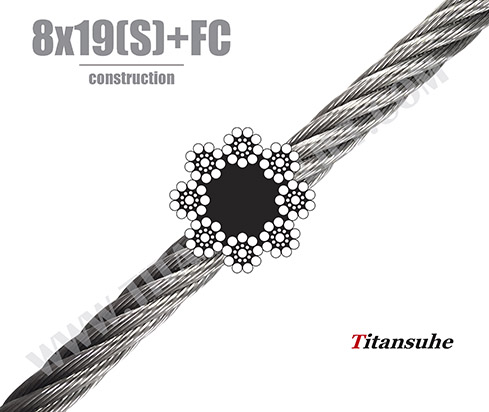

Seale Strand: It has larger wires for outer layer and smaller wires for inner wires. Wire ropes with this construction has very good flexibility.

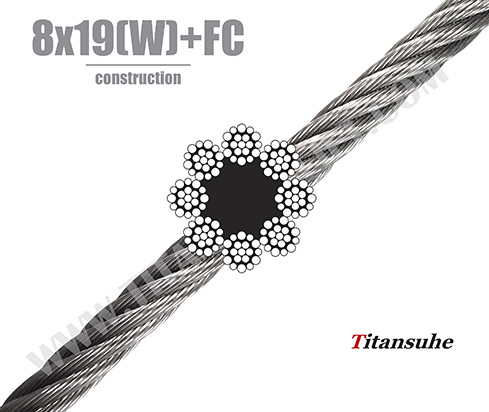

Warrington Strand: This strand is constructed with alternative arrangement of larger wires and smaller wires for outer layer. This strand constructed wire rope has better abrasion resistance.

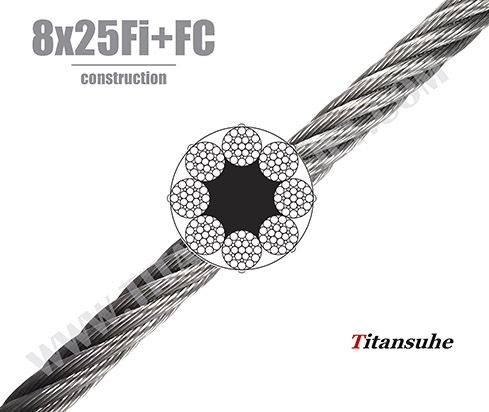

Filler Strand: Arranged with smaller wires between the outer layer and inner layer to fill the space, this kind of strand has better bend fatigue and better contact with drums and sheaves.

Construction: 8x19(S)+FC, 8x19(W)+FC, 8x25F+FC

Nominal Diameter	Approx Weight	Minimum Breaking Strength(KN)
Nominal Diameter	Approx Weight	Double strength(Mpa)			Single Strength(Mpa)
mm	kg/100m	1320/1770 1320/1620	1370/1770	1570/1770 1620/1770	1570	1620	1770
8	21.8	26.5	28.1	30.8	29.4	30.4	33.2
9	27.5	33.5	35.6	38.9	37.3	38.4	42
9.5	30.7	37.3	39.7	43.6	41.5	42.8	46.8
10	34	41.3	44	48.1	46	47.5	51.8
11	41.1	50	53.2	58.1	55.7	57.4	62.8
12	49	59.5	63.3	69.2	66.2	68.4	74.7
12.7	54.8	66.6	70.9	77.5	74.2	76.5	83.6
13	57.5	69.8	74.3	81.2	77.7	80.2	87.6
14	66.6	81	86.1	94.2	90.2	93	102
14.3	69.5	84.5	89.9	98.3	94.1	97.1	106
15	76.5	93	98.9	108	104	107	117
16	87	106	113	123	118	122	133
17.5	104	127	135	147	141	145	159
18	110	134	142	156	149	154	168
19	123	149	159	173	166	171	187
20	136	165	176	192	184	190	207
20.6	144	175	187	204	195	201	220
22	165	200	213	233	223	230	251

Construction: 8x19(S)+IWRC, 8x19(W)+IWRC

Nominal Diameter	Approx Weight		Minimum Breaking Strength(KN)
Nominal Diameter	Approx Weight		Double Strength(Mpa)						Single Strength(Mpa)
mm	kg/100m		1320/1771 1320/1620		1370/1770		1570/1770 1620/1770		1570		1620		1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
8	26	25.9	34.2	33.6	35.8	35.2	38	37.4	35.8	35.2	36.9	36.3	40.3	39.6
9	33	32.8	43.3	42.5	45.3	44.5	48.2	47.3	45.3	44.5	46.7	45.9	51	50.2
9.5	36.7	36.6	48.2	47.4	50.4	49.6	53.7	52.8	50.4	49.6	52	51.2	56.9	55.9
10	40.7	40.5	53.4	52.5	55.9	55	59.5	58.5	55.9	55	57.7	56.7	63	62
11	49.2	49	64.6	63.5	67.6	66.5	71.9	70.7	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	76.9	75.6	80.5	79.1	85.6	84.2	80.5	79.1	83	81.6	90.7	89.2
12.7	65.6	65.3	86.1	84.7	90.1	88.6	95.9	94.3	90.1	88.6	93	91.5	102	99.9
13	68.8	68.4	90.2	88.7	94.5	92.9	100	98.8	94.5	92.9	97.5	95.8	106	105
14	79.8	79.4	105	103	110	108	117	115	110	108	113	111	124	121
14.3	83.2	82.8	109	107	114	112	122	120	114	112	118	116	129	127
15	91.6	91.1	120	118	126	124	134	132	126	124	130	128	142	139
16	104	104	137	134	143	141	152	150	143	141	148	145	161	159
17.5	125	124	164	161	171	168	182	179	171	168	177	174	193	190
18	132	131	173	170	181	178	193	189	181	178	187	184	204	201
19	147	146	193	190	202	198	215	211	202	198	208	205	227	224
20	163	162	214	210	224	220	238	234	224	220	231	227	252	248
20.6	173	172	227	223	237	233	252	248	237	233	245	241	267	263
22	197	196	258	254	271	266	288	283	271	266	279	274	305	300

For one-stop system service with steel cable attachments, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.

8 Strands Elevator Wire Rope 8x19S

Data Sheet of 8 Strands Elevator Wire Rope 8x19S

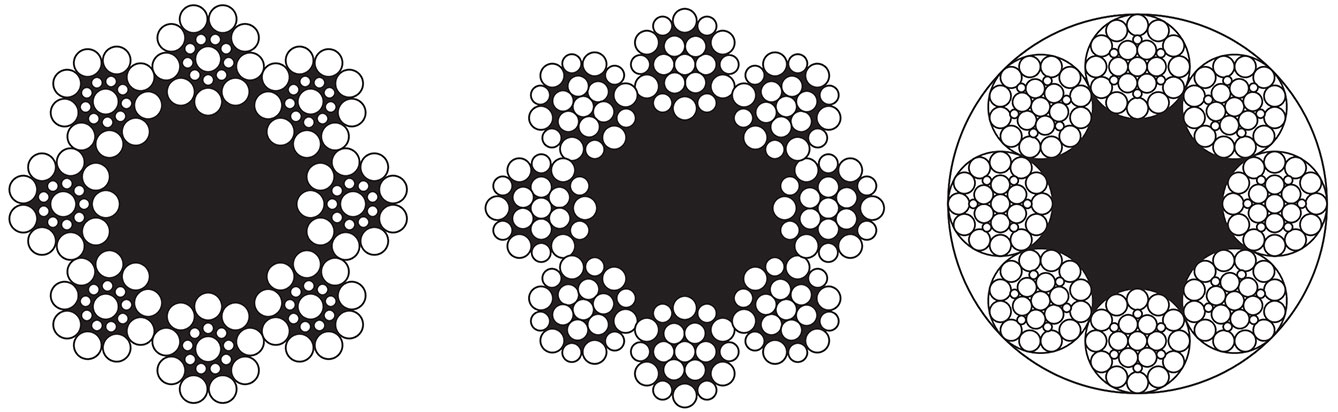

Drawing of 8 Strands Elevator Wire Rope 8x19S
