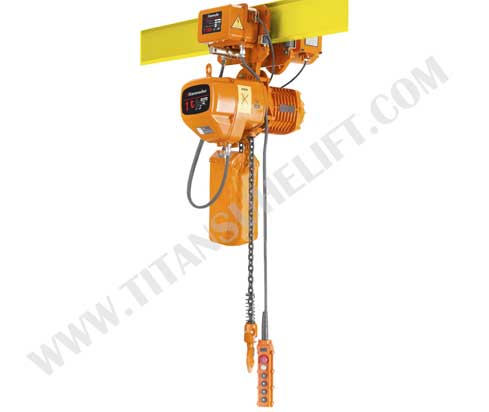

Add a motorized trolley to HHB electric chain hoist which can help you move the load horizontally. One pendant control operation for up, down, left, and right movement. Adjustable flange width can suit any beam type. Forged and thicker trolley wheels provide smooth and stable traveling.
Model No.: HHB
Capacity: 500kg up to 25000kg
Standard Lift: 3M (10Ft), Longer chain available upon request
Lifting Speed: Single and Dual speed
Power supply: 3 Phase, 380v, 50hz Color: Powder painting in orange color, other colors are available by request
Packing: Wooden box
Side-guide construction keeps the load controlled and on track, while traveling, no worry the trolley will drop from the support beam.

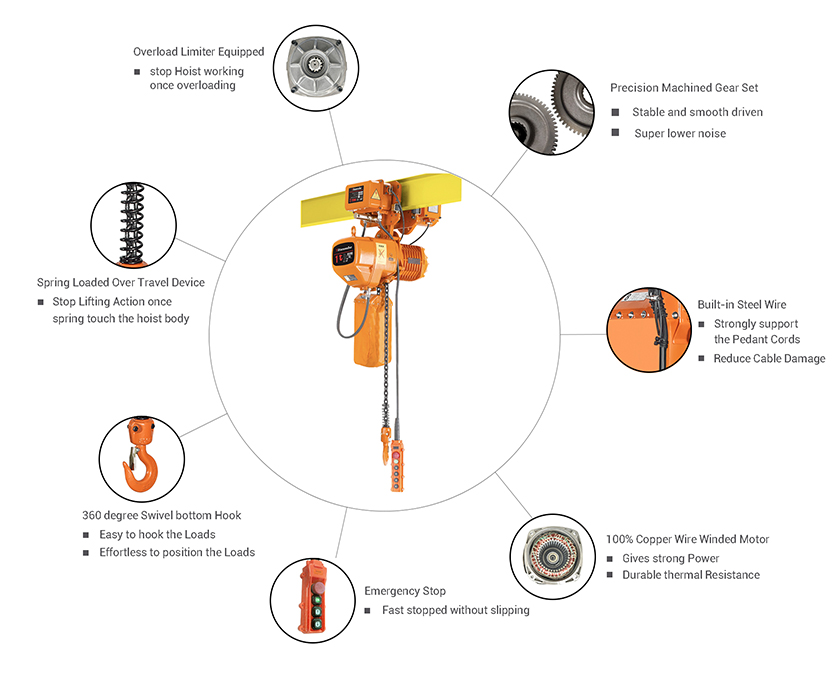

Precision Machined Gear Set-Provide stable and smooth drive with super lower noise.
100% Copper Wire Winded Motor-Gives strong power and durable thermal resistance.
Overload Limiter Equipped-Will stops the hoist from working once the load exceeds preset load, normally 120%-160% of the rated load.
Quick Plug Pedant Control-For quick and easy installation and maintenance.
Spring Loaded Over Travel Device-Stop lifting action one spring touch the hoist body.
360-degree swivel bottom hook-Easy hook and position the loads to where you desire to.
Built-in Steel Wire- Gives strong support to pedant cords, and reduces cable damage or broken by its dead weight.
Structured with Drop-Stop and Rubber Bumpers-Trolley will never fall off the support beam which not only provides additional security for the operator but also protects the hoist and loads against collisions.
Emergency Stop, Limit Switch Equipped-Protect operates from injury and Protects the hoist from damage.
Dual Brake System-Electric brake and the mechanical brake both work to ensure safer and more reliable operation.
Easy Access External Pins-Allow quick change from hook to trolley mount.
Precision Machined Gear Set-Provide stable and smooth drive with super low noise.
Heat Treated Gears and Loading Parts-Gives high strength and super wear resistance.
Adjustable Flange Width-For more choice of the support beam.
Thicker Trolley Wheel-Increase surface touch, provide reliable traveling.
Low Voltage Control Pendant-No harm to the operator.
Plug-in Control Pendant Cord-Easy and fast connection.
Ball Bearing Type Trolley Wheel-Can fit a flat or tapered beam flange.
All Steel Structure-Made of high-strength steel, compact design with lightweight.
Custom Electric Chain Hoist
Model | Capacity ton | Standard Lift m | Test Load kN | Motor Power (kW) Single/Dual | No.of Chain | Dia of Chain mm | Lifting Speed (m/min) Single/Dual | Net Weight kg | Extra weight per metre of extra lift kg |
HHB-0.5AE | 0.5 | 3 | 6.25 | 0.75,0.8/0.27 | 1 | 6.3 | 6.8,6.9/2.3 | 89 | 0.81 |
HHB-1.0AE | 1.0 | 3 | 12.5 | 1.5,1.8/0.6 | 1 | 7.1 | 6.6,6.9/2.3 | 103 | 1.1 |
HHB-1.0BE | 1.0 | 3 | 12.5 | 0.75,0.8/0.27 | 2 | 6.3 | 3.4,3.5/1.2 | 101 | 1.62 |
HHB-2.0AE | 2.0 | 3 | 25 | 3.0,3.0/1.0 | 1 | 10 | 6.6,6.8/2.3 | 164 | 2.3 |
HHB-2.0BE | 2.0 | 3 | 25 | 1.5,1.8/0.6 | 2 | 7.1 | 3.3,3.3/1.1 | 122 | 2.2 |
HHB-3.0AE | 3.0 | 3 | 37.5 | 3.0,3.0/1.0 | 1 | 11.2 | 5.4,5.4/1.8 | 183 | 2.8 |
HHB-3.0BE | 3.0 | 3 | 37.5 | 3.0,3.0/1.0 | 2 | 10 | 4.4,4.5/1.5 | 192 | 4.7 |
HHB-5.0E | 5.0 | 3 | 62.5 | 3.0,3.0/1.0 | 2 | 11.2 | 2.8,2.7/0.9 | 234 | 5.6 |
HHB-7.5E | 7.5 | 3 | 94 | 3.0,3.0/1.0 | 3 | 11.2 | 1.8,1.8/0.6 | 266 | 8.4 |
HHB- 10E | 10 | 6 | 125 | 3.0,3.0x2/1.0x2 | 4 | 11.2 | 2.7,2.7/0.9 | 335 | 11.2 |
HHB- 15E | 15 | 6 | 187.5 | 3.0x2,3.0x2/1.0x2 | 6 | 11.2 | 1.8,1.8/0.6 | 451 | 17 |
HHB- 20E | 20 | 6 | 250 | 3.0x2,3.0x2/1.0x2 | 8 | 11.2 | 1.4,4.5/0.6 | 546 | 22 |
HHB- 25E | 25 | 6 | 312.5 | 3.0x2,3.0x2/1.0x2 | 10 | 11.2 | 1.1,1.2/0.4 | 624 | 28 |

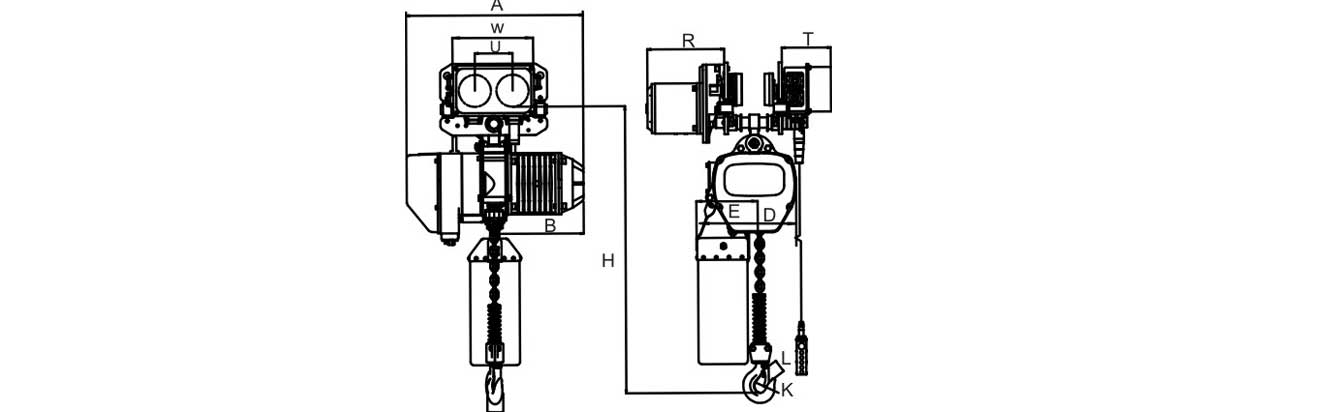

Model | Capacity ton | H mm | A mm | B mm | D mm | E mm | I mm | K mm | L mm | N mm | W mm | U mm | R mm | T mm | I-beam size mm |
HHB-0.5AE | 0.5 | 550 | 545 | 260 | 280 | 160 | 35 | 35 | 25 | 17 | 206 | 111 | 142 | 231 | 58-153 |
HHB-1.0AE | 1.0 | 650 | 582 | 280 | 300 | 176 | 40 | 40 | 31 | 22 | 206 | 111 | 142 | 231 | 58-153 |
HHB-1.0BE | 1.0 | 670 | 545 | 260 | 280 | 205 | 40 | 40 | 31 | 2 | 206 | 111 | 142 | 231 | 58-153 |
HHB-2.0AE | 2.0 | 800 | 670 | 313 | 430 | 265 | 47 | 47 | 38 | 30 | 237 | 127 | 142 | 231 | 82-178 |
HHB-2.0BE | 2.0 | 835 | 582 | 280 | 300 | 236 | 47 | 47 | 38 | 30 | 237 | 127 | 142 | 231 | 82-178 |
HHB-3.0AE | 3.0 | 845 | 670 | 313 | 430 | 265 | 58 | 58 | 47 | 36 | 265 | 140 | 142 | 231 | 100-178 |
HHB-3.0BE | 3.0 | 950 | 670 | 313 | 430 | 320 | 58 | 58 | 47 | 36 | 265 | 140 | 142 | 231 | 100-178 |
HHB-5.0E | 5.0 | 1030 | 670 | 313 | 430 | 325 | 60 | 60 | 48 | 43 | 296 | 156 | 142 | 231 | 100-178 |
HHB-7.5E | 7.5 | 1200 | 670 | 313 | 505 | 320 | 54 | 85 | 80 | 55 | 296 | 156 | 142 | 231 | 100-178 |
HHB- 10E | 10 | 1400 | 685 | 352 | / | 890 | 85 | 80 | 80 | 55 | 366 | 191 | 142 | 231 | 150-220 |
HHB- 15E | 15 | 1310 | 630 | 315 | 1070 | 535 | 54 | 120 | 96 | 78 | 926 | 560 | 142 | 231 | 150-220 |
HHB- 20E | 20 | 1470 | 630 | 315 | 1260 | 630 | 70 | 150 | 115 | 98 | 1106 | 740 | 142 | 231 | 150-220 |
HHB- 25E | 25 | 1580 | 630 | 315 | 1260 | 725 | 70 | 150 | 115 | 95 | 1280 | 830 | 142 | 231 | 150-220 |
