1 Ton Electric Chain Hoist

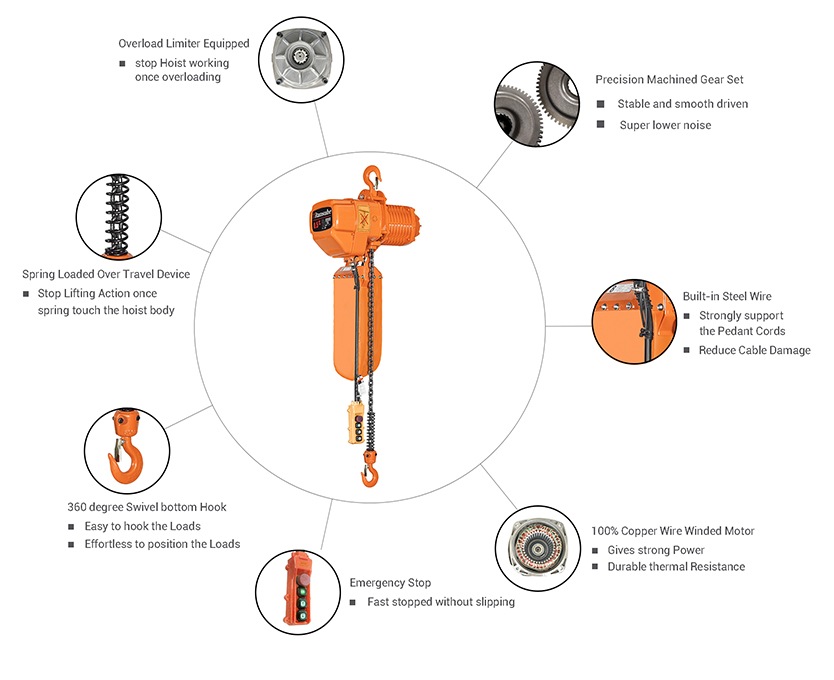

TITANSUHE's electric chain hoists are designed for tough applications even in some harsh and extreme environments. CNC machined dual gear system provides smooth and stable driven with low noise features which can increase hoist service life, 1 ton electric chain hoist china help operators reduce work fatigue under quiet operation, and finish the job with high efficiency. Besides, as one of the professional lifting equipment manufacturers, our electric chain hoist ranges from 500kg through 35ton.

pho

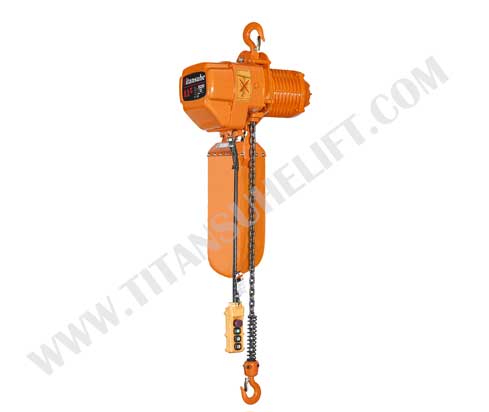

1 ton electric chain hoist

Data Sheet of 1 Ton Electric Chain Hoist

Model

Capacity (ton)

Standard Lift (m)

Test Load (kN)

Motor Power (kw) Single/Dual

No.of Chain

Dia of Chain (mm)

Lifting Speed (m/min) Single/Dual

Net Weight (kg)

Extra weight per extra meter lift (kg)

HHB-0.5AF

0.5

3

6.25

0.75,0.8/0.27

1

6.3

6.8,6.9/2.3

47

0.81

HHB-1.0AF

1

3

12.5

1.5,1.8/0.6

1

7.1

6.6,6.9/2.3

61

1.1

HHB-1.0BF

1

3

12.5

0.75,0.8/0.27

2

6.3

3.4,3.5/1.2

52

1.62

HHB-2.0AF

2

3

25

3.0,3.0/1.0

1

10

6.6,6.8/2.3

115

2.3

HHB-2.0BF

2

3

25

1.5,1.8/0.6

2

7.1

3.3,3.3/1.1

73

2.2

HHB-3.0AF

3

3

37.5

3.0,3.0/1.0

1

11.2

5.4,5.4/1.8

122

2.8

HHB-3.0BF

3

3

37.5

3.0,3.0/1.0

2

10

4.4,4.5/1.5

131

4.7

HHB-5.0F

5

3

62.5

3.0,3.0/1.0

2

11.2

2.8,2.7/0.9

151

5.6

HHB-7.5F

7.5

3

94

3.0,3.0/1.0

3

11.2

1.8,1.8/0.6

266

8.4

HHB- 10F

10

6

125

3.0,3.0x2/1.0x2

4

11.2

2.7,2.7/0.9

335

11.2

HHB- 15F

15

6

187.5

3.0x2,3.0x2/1.0x2

6

11.2

1.8,1.8/0.6

451

17

HHB- 20F

20

6

250

3.0x2,3.0x2/1.0x2

8

11.2

1.4,4.5/0.6

546

22

HHB- 25F

25

6

312.5

3.0x2,3.0x2/1.0x2

10

11.2

1.1,1.2/0.4

624

28

HHB- 30F

30

6

375

3.0x2,3.0x2/1.0x2

12

11.2

0.9,1.0/0.3

1143

31

HHB- 35F

35

6

437.5

3.0x2,3.0x2/1.0x2

16

11.2

0.7,0.7/0.25

1385

44.8



Main Dimension (Single Speed/Dual Speed)

Model

Capacity ton

H

A

B

D

E

I

J

K

L

M

N



mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

mm

HHB-0.5AF

0.5

530

545

260

280

160

35

28

35

25

17

17

HHB-1.0AF

1

650

582

280

300

176

40

31

40

31

22

22

HHB-1.0BF

1

650

545

260

280

205

40

31

40

31

22

2

HHB-2.0AF

2

800

670

313

430

265

47

40

47

38

30

30

HHB-2.0BF

2

835

582

280

300

236

47

38

47

38

30

30

HHB-3.0AF

3

845

670

313

430

265

58

47

58

47

36

36

HHB-3.0BF

3

950

670

313

430

320

58

47

58

47

36

36

HHB-5.0F

5

1030

670

313

430

325

60

48

60

48

43

43

HHB-7.5F

7.5

1200

670

313

505

320

54

31

85

80

85

55

HHB- 10F

10

1400

685

352

430

890

85

80

80

80

104

55

HHB- 15F

15

1310

630

315

1070

535

54

54

120

96

88

78

HHB- 20F

20

1470

630

315

1260

630

70

70

150

115

88

98

HHB- 25F

25

1580

630

315

1260

725

70

70

150

115

88

95

HHB- 30F

30

1640

740

315

1300

725

100

100

140

95

217

130

HHB- 35F

35

1790

740

315

1500

725

100

100

200

140

217

150

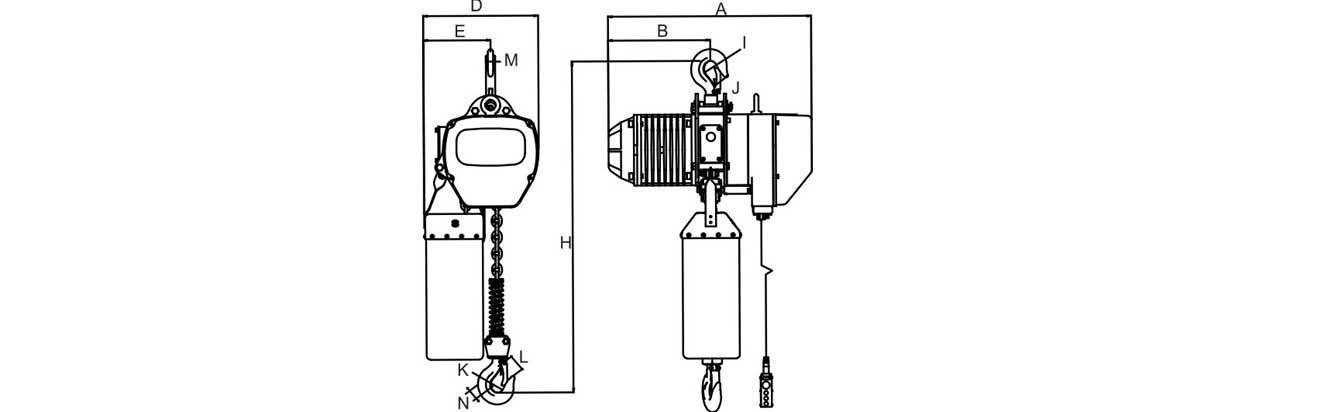

Drawing of 1 Ton Electric Chain Hoist

Drawing of 1 Ton Electric Chain Hoist
