Name: 1 Ton Air Chain Hoist
Brand: CHONGQING TITAN SUHE TECH CO., LTD.
Price: 25 USD
Rating: 4.5 (5 reviews)

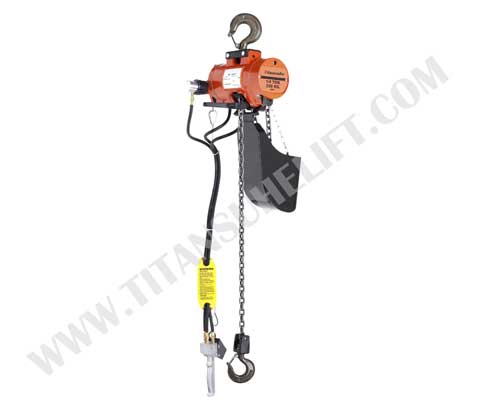

1 Ton Air Chain Hoist

TITANSUHE's air hoist features with 100% duty rate and quiet operation, is an idea lifting tools for the applications that need uninterrupted continuous operation. The variable-speed operation provides smooth starts and stops, the loads and chain lift hoist can be well protected even under rough operation.

Features of 1 Ton Air Chain Hoist

Unlimited Duty Cycle-100% duty rate enables continual operation without interruption.
Quiet Operation-Equipped with an external muffler, super low noise reduces the operator's fatigue and increases working efficiency.
Spring-Loaded, Multi-vane Motor-High torque, stably and smoothly drive your load and position to your desired location.
Adjustable, Built-in Load Limiter-Automatically detects exceeded load and blocks airflow to stop the hoist from working.
Air-Tight Body-Make efficient use of air and gives low noise.
Die-Casting Iron house-High Strength and durable resistance to bad weather or harsh environments.
Compact Design-Low headroom is the best solution for confined spaces.
Pendant Cord Control-Easy and safe operation.
Self-Adjustable Brake System-Provide precise braking action, worry-free of brake failure.
Over-Travel Limit Switch-Equipped with an upper and lower limit switch that can stop hook in either direction.
Wide Application-mostly applied in the area of Petroleum industry, chemical industry, coal industry, textile industry.
warehouse and the production line of home appliances, automobile manufacturing, shipbuilding, and repairing.

Data Sheet of 1 Ton Air Chain Hoist

Model	Capacity (ton)	N.W. (lbs)	Strands of load chain	Max.Lowering Speed(fpm)	Max.Lowering Speed(fpm)	Chain Length(in)
THA-025	1/4	46	1	65	95	11'-5", 22'-7"
THA-050	1/2	46	1	45	120	11'-5", 22'-7"
THA-100	1	59	2	23	60	22'-7", 44'-8"

1/4 TON RATED LOAD HOIST

Load	125LBS				500LBS				500LBS
Air Pressure psiG	UP		DOWN		UP		DOWN		UP		DOWN
Air Pressure psiG	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
0	0	0	5	8	0	0	15	40	0	0	25	65
60	35	70	30	75	30	65	35	85	20	50	40	95
70	40	75	30	80	35	70	35	85	25	60	40	95
80	40	80	35	80	35	75	35	85	30	60	40	95
90	40	80	35	80	35	80	35	85	30	65	40	95
100	40	80	35	80	40	80	35	85	30	65	40	95

1/2 TON RATED LOAD HOIST

Load	125LBS				500LBS				500LBS
Air Pressure psiG	UP		DOWN		UP		DOWN		UP		DOWN
Air Pressure psiG	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
0	0	0	15	40	0	0	25	65	0	0	45	125
60	30	65	35	85	20	50	40	95	0	20	45	125
70	35	70	35	85	25	60	40	95	0	30	50	120
80	35	75	35	85	30	60	40	95	10	40	55	120
90	25	80	35	85	30	65	40	95	15	45	55	120
100	40	80	35	85	30	65	40	95	20	50	55	120

1TON RATED LOAD HOIST

Load	125LBS				500LBS				500LBS
Air Pressure psiG	UP		DOWN		UP		DOWN		UP		DOWN
Air Pressure psiG	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.
0	0	0	8	20	0	0	13	33	0	0	25	65
60	15	32	16	42	10	25	20	50	0	10	25	65
70	16	35	17	42	12	30	20	50	0	15	25	60
80	17	37	18	42	14	31	20	48	5	20	30	60
90	18	40	18	42	15	32	20	47	7	23	30	60
100	20	40	18	42	15	34	20	45	10	25	30	60

Note: Hoist Speeds are shown in feet per minute (f.p.m).

1 Ton Air Chain Hoist

Quick View of 1 Ton Air Chain Hoist

Features of 1 Ton Air Chain Hoist

Data Sheet of 1 Ton Air Chain Hoist

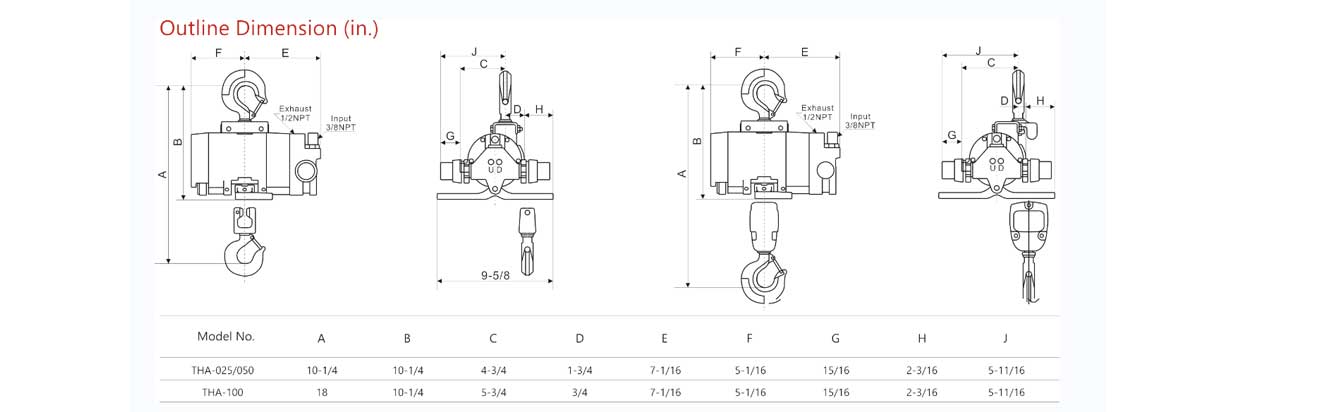

Drawing of 1 Ton Air Chain Hoist
