We have both manufacturing and trade.
For first-time orders, the lead time is about 60 days and for repeated regular orders, it's 30-45 days.
We ship from Shanghai or Qingdao. Other ports are available by customer request.
All samples are available by request. For small value items such as rigging hardware and chains, a free sample is available. For big value items for example electric chain hoists, pallet trucks, and so on, customers need to pay.
Yes, all our products have been checked/tested before shipment and get their own certificate. We provide test certificates for all items.
Yes, we provide one year warranty for all our our lifting tools and material handling products except these one that we have indicated as light duty.
We do not have MOQ requirements, but if the total amount less than USD10,000, there will be some extra cost for inland transport and port charges.
We not only supply reliable and durable products at competitive prices, but we also provide professional solutions to help you get the lifting and material handling job done.
Yes, we support it. Our engineering team has more than 10 years of experience in the lifting and material handling field. We can make products according to your design or design products according to the solution we propose to you.
You need to advise the capacity, lifting height, working length, or other information that is critical for your lifting operation. More detailed information will help to give you cost-saving advice.
You can choose our low-headroom lifting tools that are specially designed for warehouse purposes.
Yes, we have. Our factory has passed ISO9001, ISO18001, and ISO14001. Meanwhile, some of our products such as lifting chain, hand chain hoist, lever block, shackles, and so on are CE or GS certified.
Don't worry, our sales team will assist you to get the right products at the lowest cost. You just need to tell us where will you use our lifting tools because we have various options for different applications. The products for light duty and heavy duty are quite different.

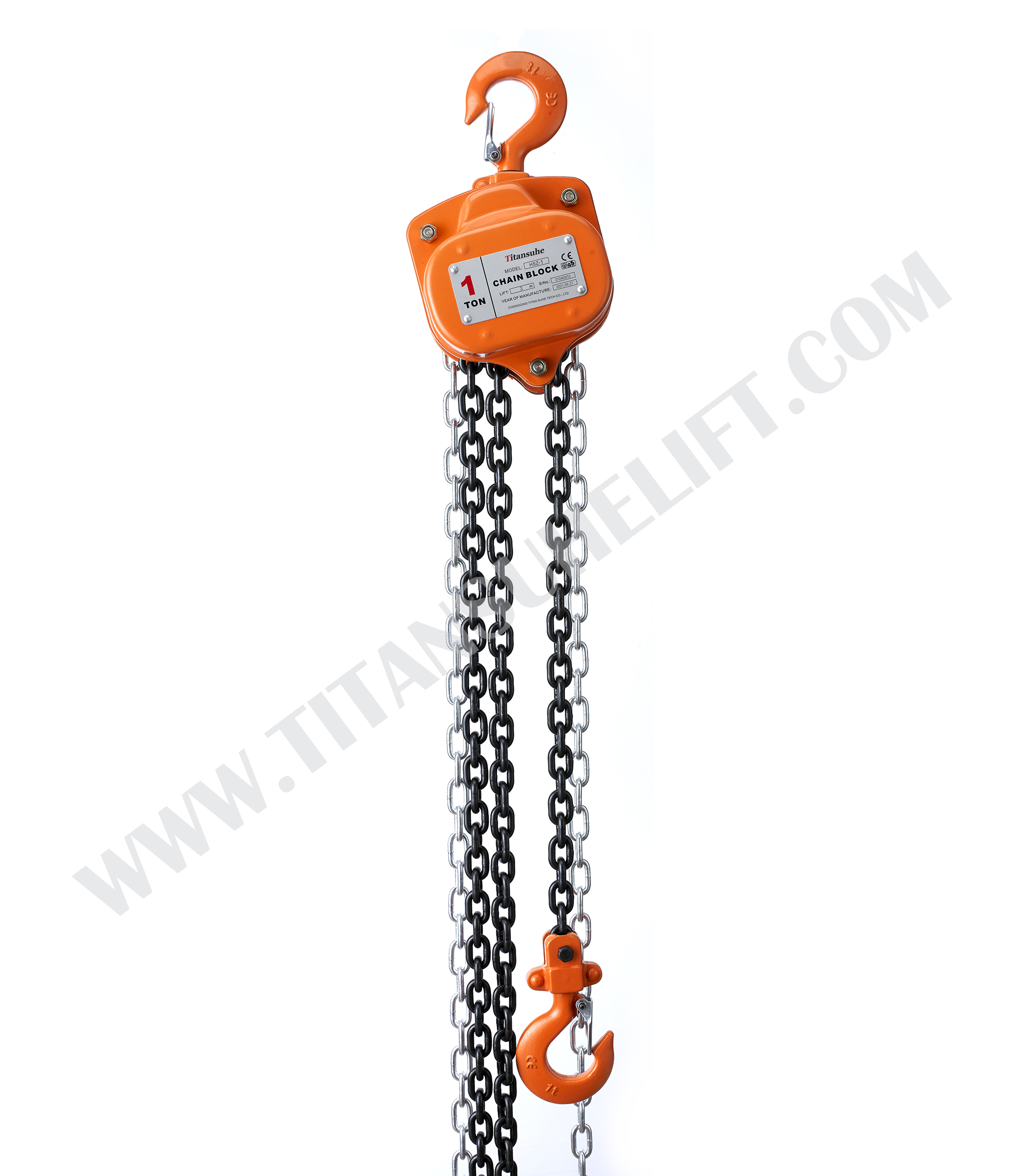

Different cost: A manual chain hoist is a cost-saving tool. It's more economical compared with the electric chain hoist.
Different efficiency: Electric chain hoist is more labor-saving with high efficiency.
Different applications: Manual chain hoist is more used where the operation space is limited or where the power supply is not available. Electric chain hoists are more used in-house for high frequent operations that need high efficiency.
For different markets and different applications, we can supply polyester webbing sling and round sling with safety factors 4:1, 5:1, 6:1, 7:1, and 8:1. For the USA market, the webbing slings are always 5:1. And for the European market, all the supplies are 7:1 safety factor and for Australian market, webbing slings normally come with an 8:1 safety factor and for other markets, the safety factor will depend on customers' choice.
All our lifting chains are made according to EN818 specifications. We have an EN818-2 medium tolerance chain to make a chain sling, we also have an EN818-7 fine tolerance chain for hoist rigging.
We made all lifting chains with high-strength alloy steel 20Mn2 or 8620. The chain made by 20Mn2 have the same dimension, strength, and elongation as 8620 material, the only difference is that the chains made of 8620 material have better fatigue resistance. If you need to use the lifting chains for high-frequency operation under harsh working conditions, it's better to choose chains made of 8620 materials.
There are some key points to check the quality of the alloy steel chain.
You need to check if all the chain links have been calibrated. The calibrated chain link has a unique and nice shape.
You can check if different chain link has the same dimensions in diameter, pitch length, and inside width.
You need to check if the chain has enough strength to reach grade 8 or grade 10 according to what you order.
The very import is the chain must have elongation not less than 15% so that the chain-link gets enough deformation before it's finally broken.
The last one, if you have related test equipment, do the bending test, to see if the chain-link can withstand the sudden impact under certain force without breaking.
There are two important checks for wire rope when you receive the goods.
Cut the wire rope end to see if there is a loose strand. A good quality wire rope must be preform treated and will not appear to lose strand after cutting.
Check the tensile strength.
They are designed for different applications. Heavy-duty chain block is designed for industrial-grade professional overhead lifting. While light-duty chain block is designed for lashing purposes, not recommended for lifting. The light-duty chain block can be used for life unless you know exactly the weight of the loads and any overweight lift is absolutely prohibited. Heavy-duty chain block has a minimum of 4 times safety factor and has been typing tested with life cycle test. It's reliable and durable for high-frequency heavy loads.
We have galvanized wire rope, ungalvanized wire rope, vinyl-coated wire rope, and stainless steel wire rope for options.
Yes, we can supply. There are two fork width 550mm and 685mm. 550mm ford width is designed for euro size pallet? 685mm fork width is for USA market.
Yes, we can supply ordinary chains with medium links, short links,s, and long links. The specification we adopt is DIN763/DIN764/DIN766 or DIN5685A/DIN5685C. If no special requirement, our mild steel chains will come with bags, 25kg per bag. The reel packing is also available, in this case, you need to advise the length of each reel.
No, we not only have AISI304 material, but we also have AISI316 and AISI316L. If you need cheaper prices, you can choose AISI304 material. All our stainless steel chain and stainless steel wire rope can be demagnetization treated.
First, you need to know which grade is the chain in your hand. When choosing the chain components, you need to choose the same grade components.
Second, for a 1-leg or 2-leg chain sling, you should choose a master link, connecting link, and chain hook. For 3-leg and 4-leg, you need to choose master link assembly instead. For chain hook, if you do not have a welding machine and professional technician, we won’t suggest you chose an eye hook. Chain hooks with clevis head are ideal for easy assembly. And for different applications, you can either choose slip hook, self-locking safety hook, or grab hook. But very important is all the hooks need to come with a safety latch to prevent load slip out the hook.
Shackles, to work as a connecting part between sling and anchor/lifting point, the safety and convenience are both the main care of end-user. For the applications that need frequent disassembly, a screw pin shackle will be suggested for quick and easy dismantling. For low-frequency applications, you can choose bolt-type shackles for more safety. No matter which one you chose, please remember to check the shackle pin has been well screwed before operation.
Yes, we work normally. We do not have any new cases in our area since last June.
